Description

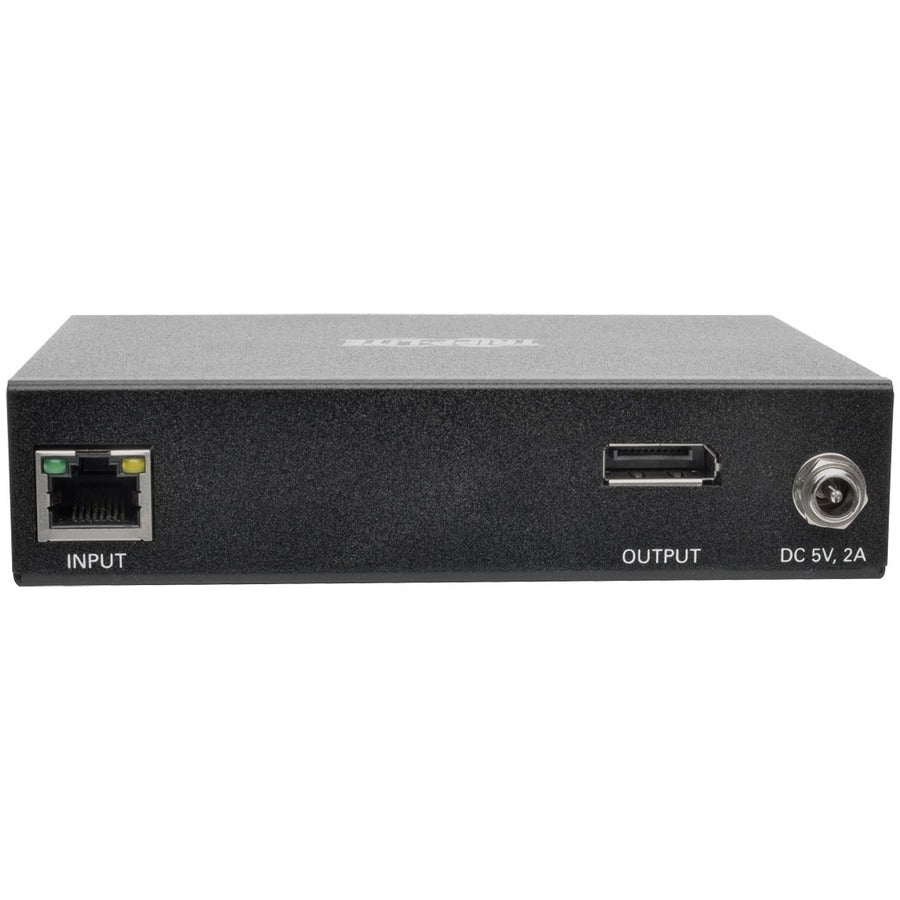

DisplayPort over IP Extender Receiver over Cat5/Cat6, RS-232 Serial and IR Control, 1080p 60 Hz, 328 ft. (100 m), TAA
Tripp Lite B160-100-DPSI DisplayPort over IP Extender Receiver over Cat5/Cat6, RS-232 Serial and IR Control, 1080p 60 Hz, 328 ft. (100 m), TAA. Type: AV transmitter, Maximum resolution: 1920 x 1080 pixels, Cable types supported: Cat5,Cat6. AC input voltage: 100-240 V, AC input frequency: 50 - 60 Hz, Operating voltage: 5 V. Package width: 160 mm, Package depth: 259.1 mm, Package height: 50.8 mm. Cables included: IR. Master (outer) case width: 566.4 mm, Master (outer) case length: 274.3 mm, Master (outer) case height: 175.3 mm
DisplayPort A/V, Serial and IR Control Signals over Cat5/6 Cabling Receives IP-based audio/video transmitted point-to-point from a source 328 ft. away Add low-cost network switches between transmitter and receiver to continue extending distance up to 328 ft. per switch

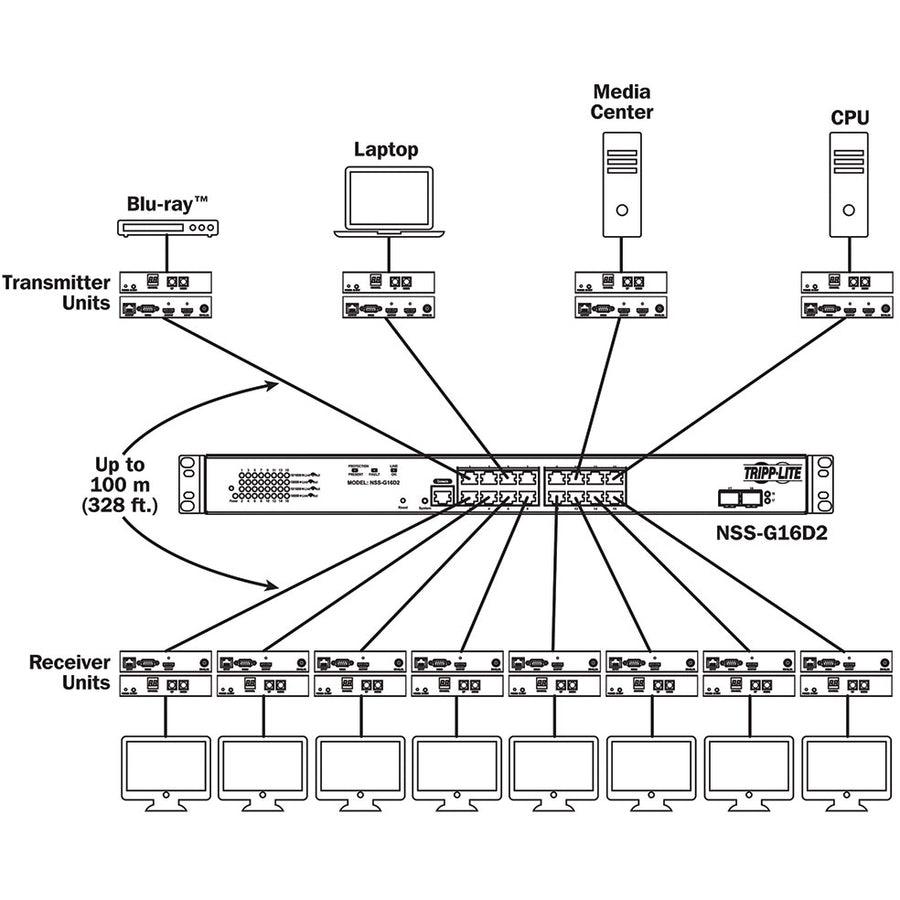

Create a Multi-In, Multi-Out Installation Using B160-Series Transmitters and Receivers Connect up to 64 transmitters and 255 receivers through multiple dedicated managed network switches IGMP-enabled switches allow centralized control over which sources show on which displays Displays video from any analog or digital source, so you can mix and match technologies and use existing sources and monitors
Enhanced Technical Features Supports video resolutions up to 1920 x 1080 (1080p) @ 60 Hz Uses H.264 video compression standard Transmits on 20–60 kHz IR frequency Extends IR control signals that control a source from a remote display Supports RS-232 serial baud rates up to 57600 Bps HDCP and 3D compatible when used with a DisplayPort or HDMI transmitter

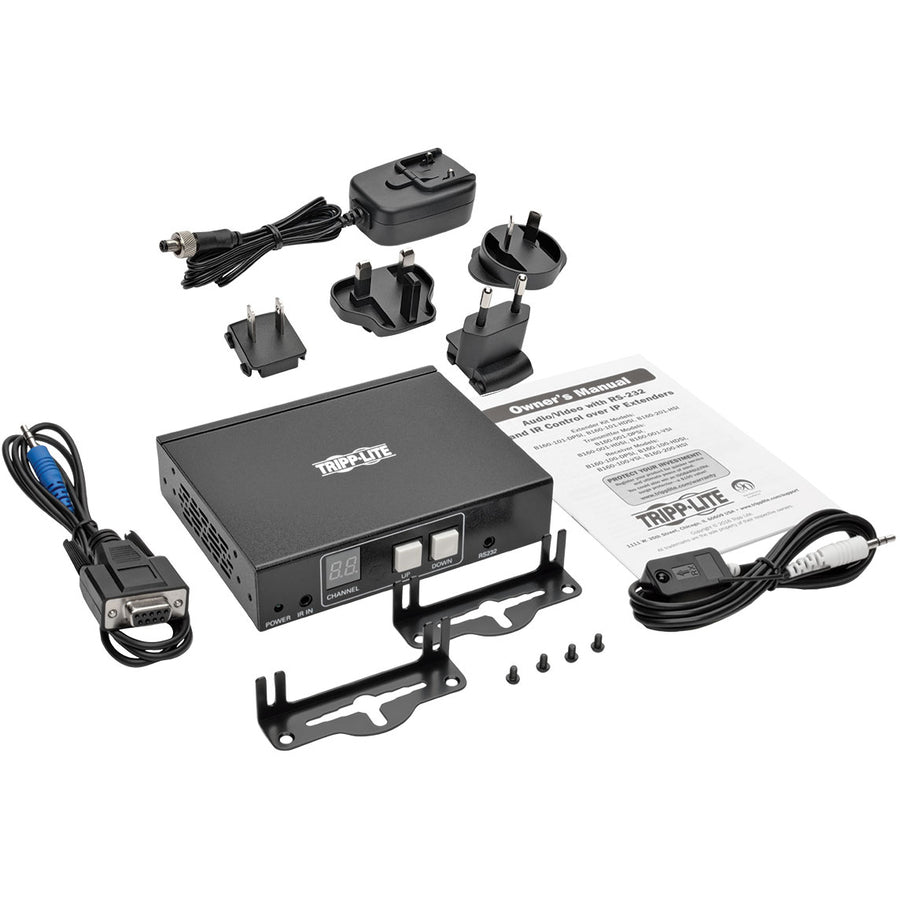

Plug-and-Play Functionality No software or drivers required Hardware included for mounting on wall, rack or pole Compatible with all Tripp Lite B160-Series A/V over IP transmitters
TAA-Compliant Compliant with the Federal Trade Agreements Act (TAA) for GSA Schedule purchases
