Tripp Lite by Eaton

Tripp Lite Dmvwsc4570Xul Pop-Out Video Wall Mount W/Security For 45" To 70" Tvs And Monitors - Flat Screens, Ul Certified

Tripp Lite Dmvwsc4570Xul Pop-Out Video Wall Mount W/Security For 45" To 70" Tvs And Monitors - Flat Screens, Ul Certified

SKU:DMVWSC4570XUL

Regular price $218.05
Regular price Sale price $218.05
Sale Sold out
Shipping calculated at checkout.
          View full details
          Description
          Specifications
          Reviews, Que. & Ans.

          Description :

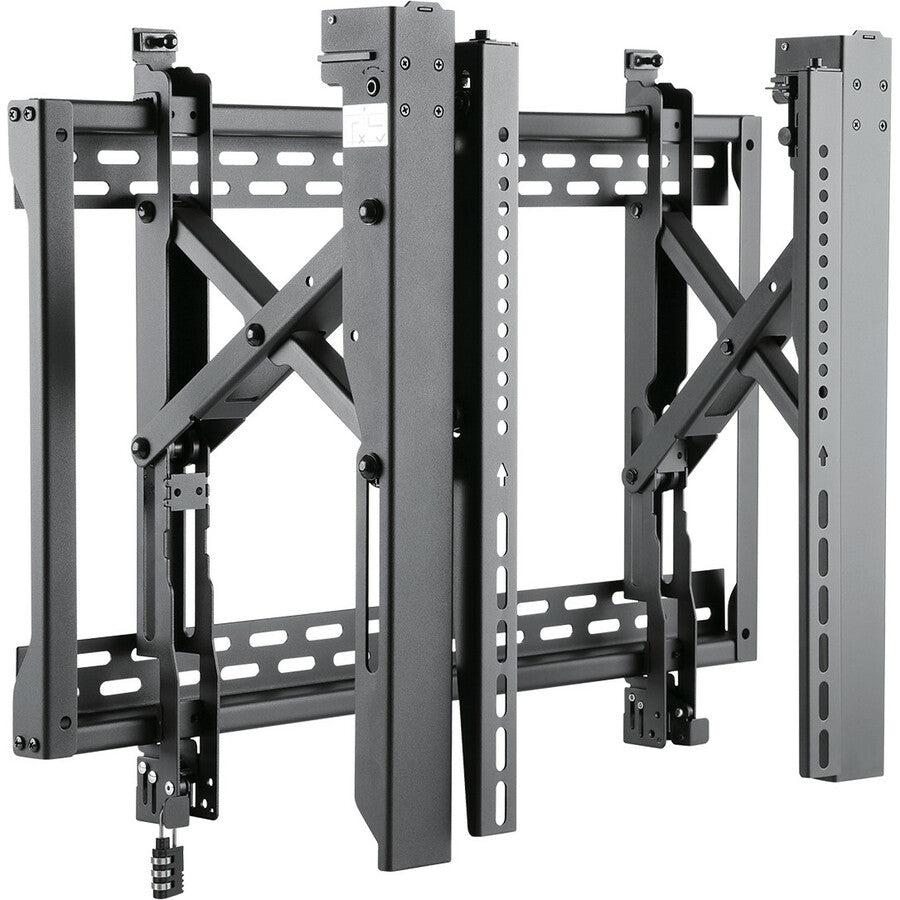

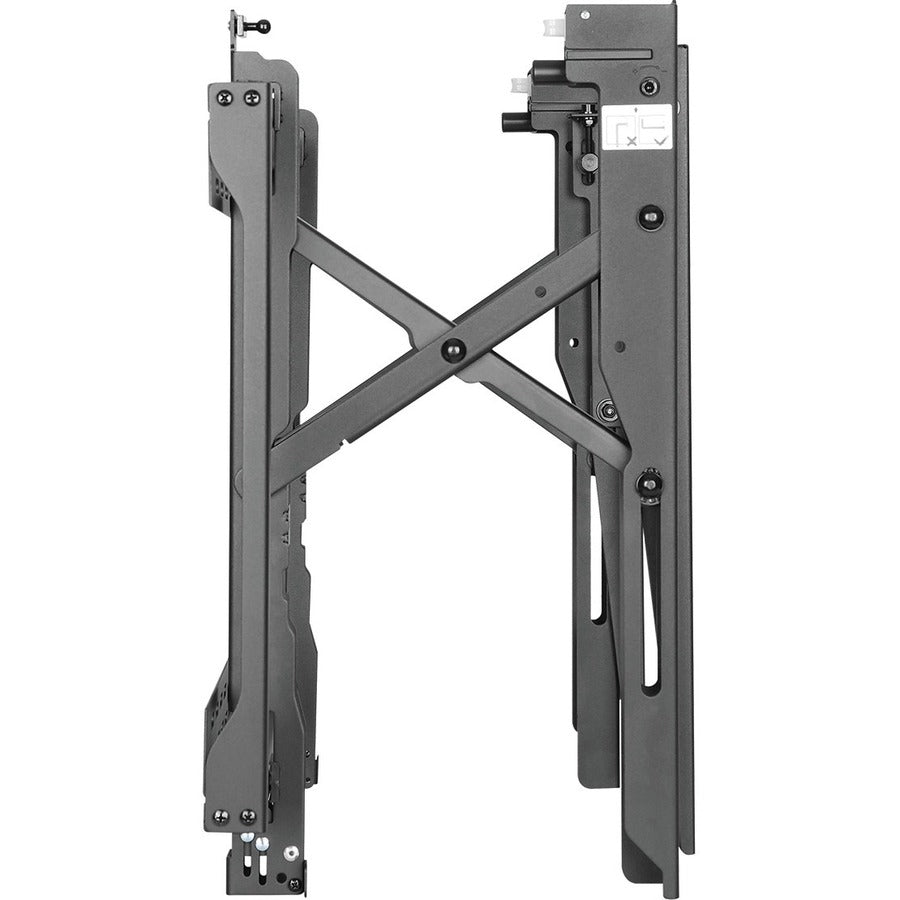

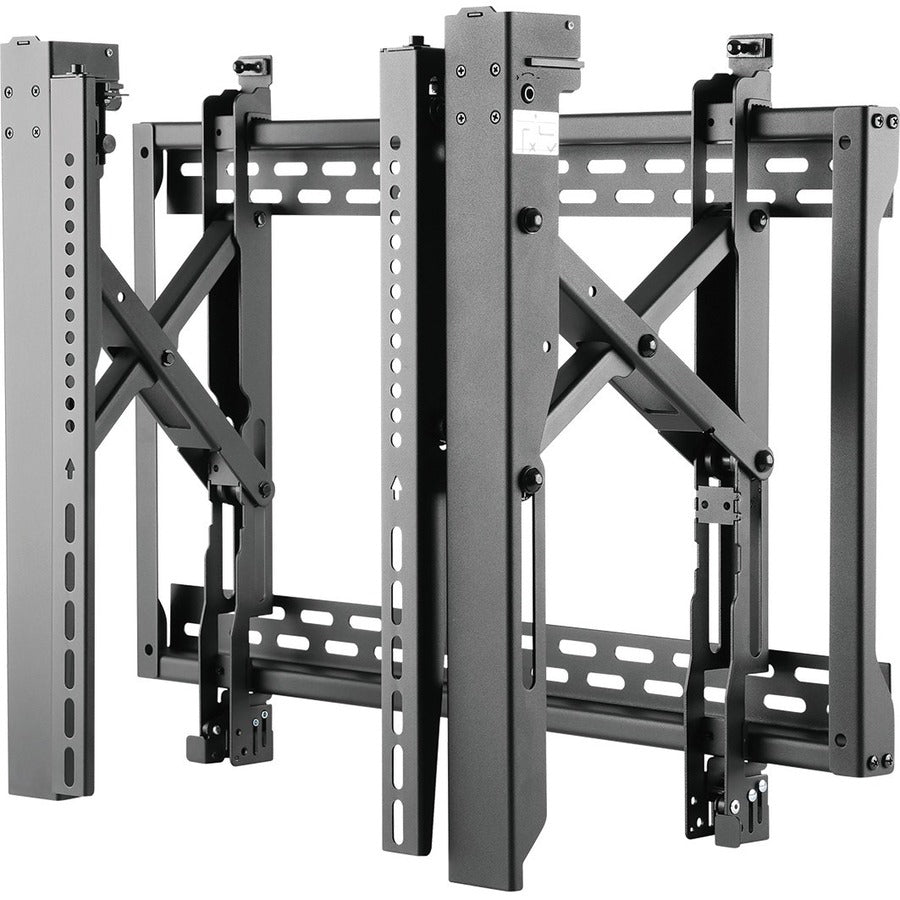

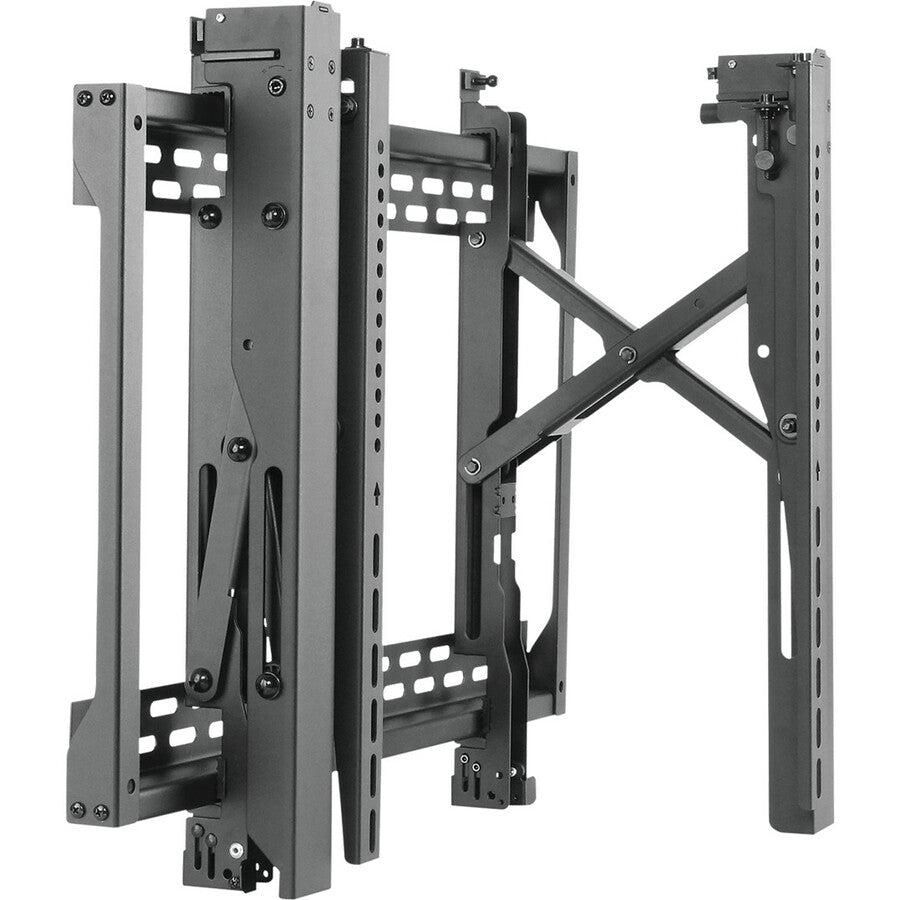

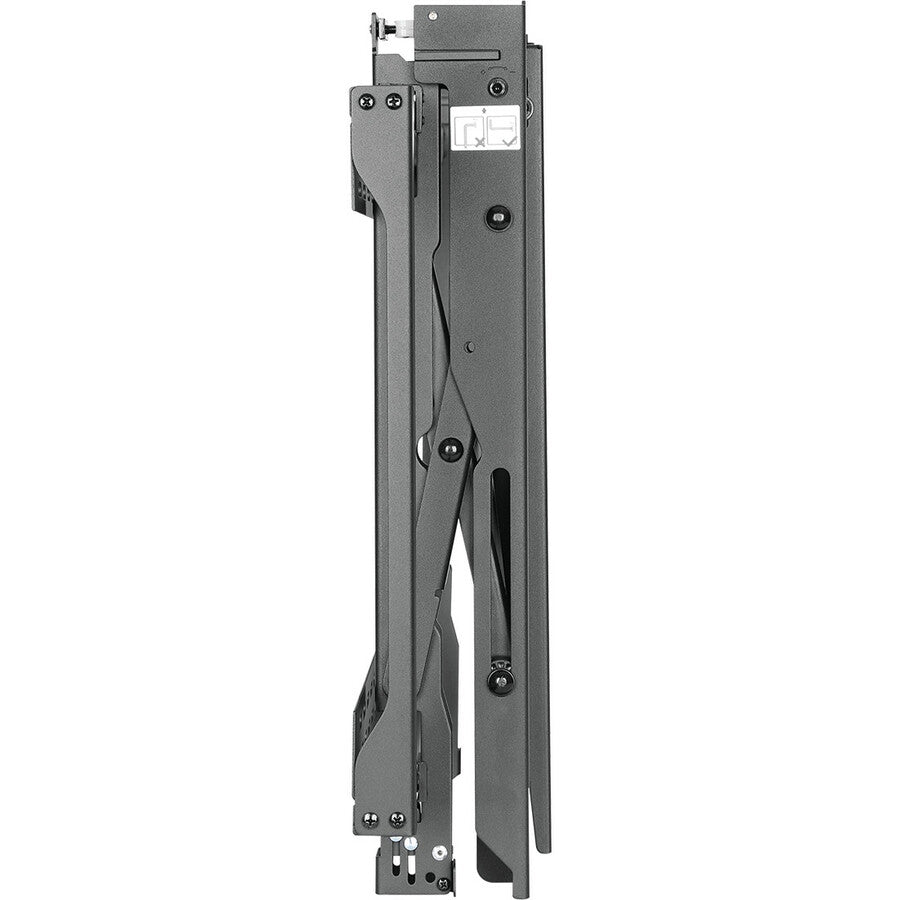

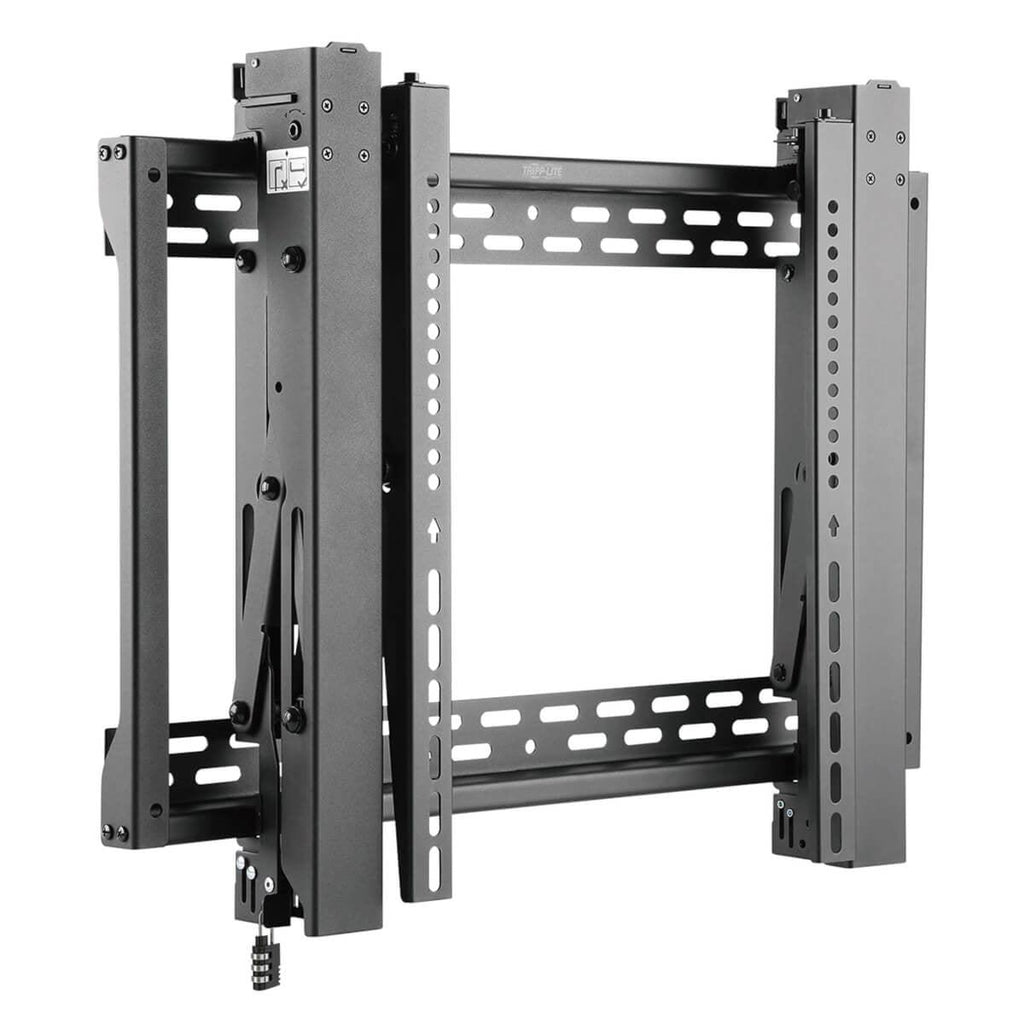

          Pop-Out Video Wall Mount w/Security for 45" to 70" TVs and Monitors - Flat Screens, UL Certified

          Tripp Lite DMVWSC4570XUL Pop-Out Video Wall Mount w/Security for 45" to 70" TVs and Monitors - Flat Screens, UL Certified. Maximum weight capacity: 70 kg, Minimum screen size: 114.3 cm (45"), Maximum screen size: 177.8 cm (70"), Minimum VESA mount: 200 x 200 mm, Maximum VESA mount: 600 x 400 mm. Product colour: Black

          Pop-Out Display Mount is Designed for Video Wall Installations
          A pop-out feature and micro-adjustability make the DMVWSC4570XUL wall mount a purpose-built solution for video walls in home theaters, offices, conference centers, medical facilities, airports, hotels, bars, restaurants and security stations. Designed for use with flat screens from 45 to 70 inches, this wall mount is function- and weight-tested to 154 lbs (69.8 kgs) in accordance with UL Standard 2442.

          Pop-Out Feature Supports Convenient Cable Access and Screen Adjustments
          To unlock the pop-out mechanism, press lightly on the front of your display and pull it toward you. It can extend anywhere from 3.7 to 11 inches from the wall, providing space to access cables or make adjustments. This is especially helpful in video wall installations, where adjacent screens may limit access. The extension also makes it easier to replace a display.

          Multi-Directional Micro-Adjustments Provide Exact Alignment
          You can move the display left or right, adjust the screen level from -3° to +3° and adjust the tilt from -2° to +4°. For exact positioning in a video wall, there are six micro-adjustments for tilt, height and depth (user-supplied hex key required). When the display is in the perfect position, insert the included plastic locks in the brackets to prevent unintentional movement.

          Included Combination Lock Deters Display Theft
          A three-position combination lock (included) secures the display bracket to the wall plate to deter theft, which can be a concern in public areas with unguarded traffic. Deterring display theft also protects the mount, which is often damaged beyond repair when a display is stolen. The heavy-duty steel frame withstands the stress of frequent adjustments, and the black powder-coated finish offers durability and scratch resistance. Your display hides the mount and the padlock, maintaining a professional look.

          VESA-Compliant Mounting Ensures Display Compatibility
          VESA (Video Electronics Standards Association) promotes uniformity in the video electronics industry by developing standards for TVs and monitors. For hassle-free display compatibility, this mount supports the following VESA mounting hole patterns: 200 x 200, 200 x 300, 200 x 400, 300 x 200, 300 x 300, 300 x 400, 400 x 200, 400 x 300, 400 x 400, 500 x 200, 500 x 300, 500 x 400, 600 x 300 and 600 x 400. Mounting hardware is included.

          Specifications :

          General Information

          Manufacturer Tripp Lite by Eaton
          Manufacturer Part Number DMVWSC4570XUL
          Manufacturer Website Address https://tripplite.eaton.com/
          Brand Name Tripp Lite by Eaton
          Product Model DMVWSC4570XUL
          Product Name DMVWSC4570XUL Wall Mount
          Product Type Wall Mount
          UPC 037332240545

          Physical Characteristics

          Color FamilyBlack
          Product ColorBlack
          Height26.4"
          Width11.2"
          Depth20.6"
          Weight (Approximate)25.11 lb

          Miscellaneous

          Package Contents
          • DMVWSC4570XUL Wall Mount
          • Assembly and Mounting Fasteners
          • Display Mounting Fasteners
          • Three-position Combination Lock
          • Owner's Manual
          Environmentally FriendlyYes

          Warranty

          Limited Warranty5 Year
