Tripp Lite Hdbaset Class B (Hdbaset-Lite) Hdmi Over Cat5E/6/6A Extender Kit, Serial & Ir Control, 4K X 2K Uhd / 1080P, Up To 230-Ft. (70.1 M)

Description :

HDBaseT Class B (HDBaseT-Lite) HDMI Over Cat5e/6/6a Extender Kit, Serial & IR Control, 4K x 2K UHD / 1080p, Up to 230-ft. (70.1 m)

Tripp Lite HDBaseT Class B (HDBaseT-Lite) HDMI Over Cat5e/6/6a Extender Kit, Serial & IR Control, 4K x 2K UHD / 1080p, Up to 230-ft. (70.1 m). Type: AV transmitter & receiver, Maximum resolution: 3840 x 2160 pixels, Cable types supported: Cat5e,Cat6,Cat6a. Audio input: 6x 3.5MM (FEMALE). AC input voltage: 100-240 V, AC input frequency: 50 - 60 Hz, Operating voltage: 5 V. Receiver dimensions (WxDxH): 114.3 x 27.94 x 27.94 mm, Receiver weight: 226.7 g, Transmitter dimensions (WxDxH): 114.3 x 63.5 x 27.94 mm. Package width: 157.5 mm, Package depth: 287 mm, Package height: 55.9 mm

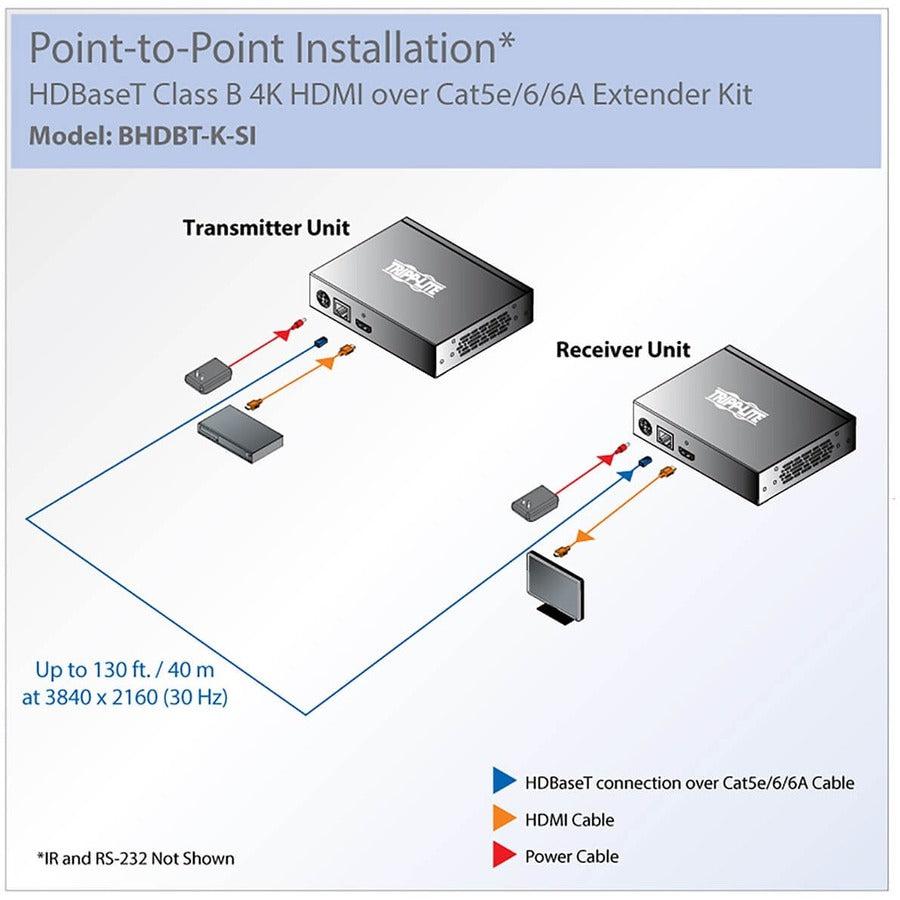

The BHDBT-K-SI HDBaseT Class B (HDBaseT-Lite) Extender Kit allows you to transmit HDMI audio and video, RS-232 serial and IR Remote Control signals up to 230 feet (70 m) over a single Cat5e/6/6a cable, including a 1920 x 1080 (1080p) signal @ 60 Hz. Or you can extend an Ultra High Definition (UHD) 3840 x 2160 (4K x 2K) video signal up to 130 feet (40 m). Add up to five Tripp Lite BHDBT-TR-SI transceivers (sold separately) between the transmitter and receiver units to further expand the range up to 237.74 m (780-ft.) (3840 x 2160) or 420.62 m (1,380-ft.) (1080p) with a monitor connected via HDMI port to each transceiver. You can also control RS-232 serial devices, such as touchscreen displays or scanners, at baud rates up to 115 Kbps. The BHDBT-K-SI’s 2-way IR Remote Control feature (@ 39 KHz) lets you control your Blu-ray player using its remote when at the remote monitor or control your remote monitor using its remote when at the Blu-ray player. Locking HDMI ports (ideal for use with Tripp Lite’s High-Speed HDMI cables with locking connectors, such as P569-006-LOCK) on both the transmitter and receiver prevent cables from coming loose or undone, ensuring an intact signal. The BHDBT-K-SI supports 7.1-channel surround sound, DTS-HD and Dolby TrueHD audio, as well as 3D video, EDID and HDCP. Included mounting hardware lets you attach each unit to a wall, rack or pole. There’s no software to download or install, and you can have the BHDBT-K-SI Extender Kit set up and ready to go quickly.

- Extends a 3840 x 2160 (4K x 2K) signal up to 130 feet (40 m)
- Extends a 1080p @ 60 Hz signal up to 230 feet (70 m)
- Supports 7.1-channel surround sound, DTS-HD and Dolby TrueHD
- Controls RS-232 serial devices at baud rates up to 115 Kbps
- Allows you to control a Blu-ray™ player from a remote monitor

- Extends an Ultra High Definition (UHD) 3840 x 2160 (4K x 2K) signal up to 130 feet (40 m)
- Extends a High Definition 1920 x 1080 (1080p) @ 60 Hz signal up to 230 feet (70 m)
- Accepts up to five BHDBT-TR-SI transceivers and six total monitors to further expand the range up to 237.74 m (780 feet) (3840 x 2160) or 420.62 m (1,380 feet) (1080p)
- Supports 7.1-channel surround sound, DTS-HD and Dolby TrueHD audio
- Supports 36-bit Deep Color (12 bits per channel), CEC pass-through, 3D video, EDID and HDCP
- 2-way 39 KHz IR Remote Control functionality lets you control your Blu-ray player with its remote while standing at the remote monitor (and vice versa)
- RS-232 serial port supports 115 Kbps full-duplex baud rates for scanners and touchscreen monitors
- Plug-and-play engineering means no software or drivers to download and install
- Ready to use in minutes
- Included mounting hardware lets you install each unit on a wall, rack or pole
- Locking HDMI ports (for use with Tripp Lite High Speed HDMI cables with locking connectors, such as P569-006-LOCK) on both the transmitter and receiver prevent cables from coming loose or disconnected, ensuring an intact signal
