Description

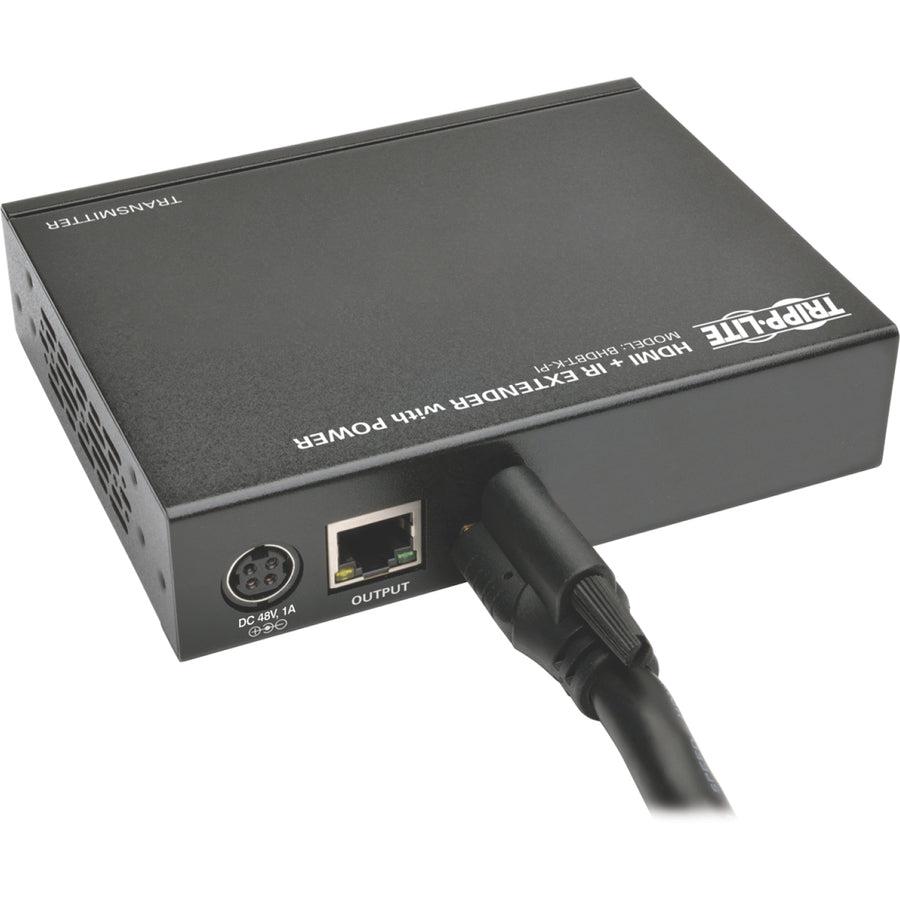

HDBaseT Class B (HDBaseT-Lite) HDMI over Cat5e/6/6a Extender Kit w/Power & IR Control, 4K x 2K UHD / 1080p, Up to 70.1 m (230-ft.)
Tripp Lite HDBaseT Class B (HDBaseT-Lite) HDMI over Cat5e/6/6a Extender Kit w/Power & IR Control, 4K x 2K UHD / 1080p, Up to 70.1 m (230-ft.). Type: AV transmitter & receiver, Maximum resolution: 3840 x 2160 pixels, Cable types supported: Cat5e,Cat6,Cat6a. AC input voltage: 100-240 V, AC input frequency: 50 - 60 Hz, Operating voltage: 48 V. Package width: 150.1 mm, Package depth: 81 mm, Package height: 214.1 mm. Cables included: IR. Master (outer) case width: 320 mm, Master (outer) case length: 246.9 mm, Master (outer) case height: 430 mm
The BHDBT-K-PI HDBaseT Class B (HDBaseT-Lite) HDMI over Cat5e/6/6a Extender Kit extends uncompressed HDMI audio and video and IR remote control signals up to 70.1 m (230-ft.) over a single Cat5e/6/6a cable, including video resolutions up to 1920 x 1080 (1080p). It also extends an Ultra High Definition (UHD) 3840 x 2160 (4K x 2K) signal up to 39.62 m (130-ft.) In addition to HDMI and IR signals, this extender kit features built-in PoE technology, which powers the receiver over Cat5e/6/6a cable, eliminating the need for an external power source. The two-way IR remote control feature (@ 39 KHz) lets you control your Blu-ray player or other HDMI source using its remote when at the remote monitor or control your remote monitor using its remote when at the Blu-ray player. Locking HDMI ports (ideal for use with Tripp Lite’s P569-006-LOCK high-speed HDMI cables with locking connectors) on both the transmitter and receiver prevent cables from coming loose or undone, ensuring an intact signal. The plug-and-play BHDBT-K-PI supports 7.1-channel surround sound, DTS-HD and Dolby TrueHD audio, as well as 3D video, EDID and HDCP. Attach the transmitter and receiver units to a wall, rack or pole with the included mounting hardware.
- Ideal for digital signs, classrooms and trade show booths - Extends a 3840 x 2160 (4K x 2K) signal up to 39.62 m (130 ft.) - Extends a 1920 x 1080 (1080p) signal up to 70.1 m (230 ft.) - Supports 7.1-channel surround sound, DTS-HD and Dolby TrueHD - Built-in PoE technology powers receiver over Cat5e/6/6a cable
- Ideal for digital signage, classrooms, retail locations, conference rooms and trade show booths - Extends an Ultra High Definition (UHD) 3840 x 2160 (4K x 2K) signal up to 39.62 m (130 ft.) - Extends a high-definition 1920 x 1080 (1080p) signal up to 70.1 m (230 ft.) - Supports 7.1-channel surround sound, DTS-HD and Dolby TrueHD audio - Supports 3D video, EDID and HDCP - Reduces cable clutter and installation costs - Built-in PoE technology powers receiver over Cat5e/6/6a cable, eliminating need for external power source - 2-way 39 KHz IR remote control functionality lets you control your Blu-ray player with its remote while standing at the remote monitor (and vice versa) - Prevent cables from coming loose or disconnected, ensuring an intact signal - Ideal for use with Tripp Lite’s P569-006-LOCK high-speed HDMI cables with locking connectors - Plug and play with no software or drivers to download and install - Includes mounting hardware for attaching each unit to a wall, rack or pole
General Information
Manufacturer
Tripp Lite by Eaton
Manufacturer Part Number
BHDBT-K-PI
Manufacturer Website Address
https://tripplite.eaton.com/
Brand Name
Tripp Lite by Eaton
Product Model
BHDBT-K-PI
Product Name
BHDBT-K-PI Video Console/Extender
Product Type
Video Extender Transmitter/Receiver
UPC
037332186935
Network (RJ-45)
Yes
Miscellaneous
Package Contents
Transmitter Unit
Receiver Unit
IR-In Cable, 5 Ft.
IR-Out Cable, 6 Ft.
External Power Supply With C14 Inlet (Input: 100-240V, 50/60 Hz, 1.5A; Output: 48V, 1A), 4.5 Ft.
