Tripp Lite by Eaton

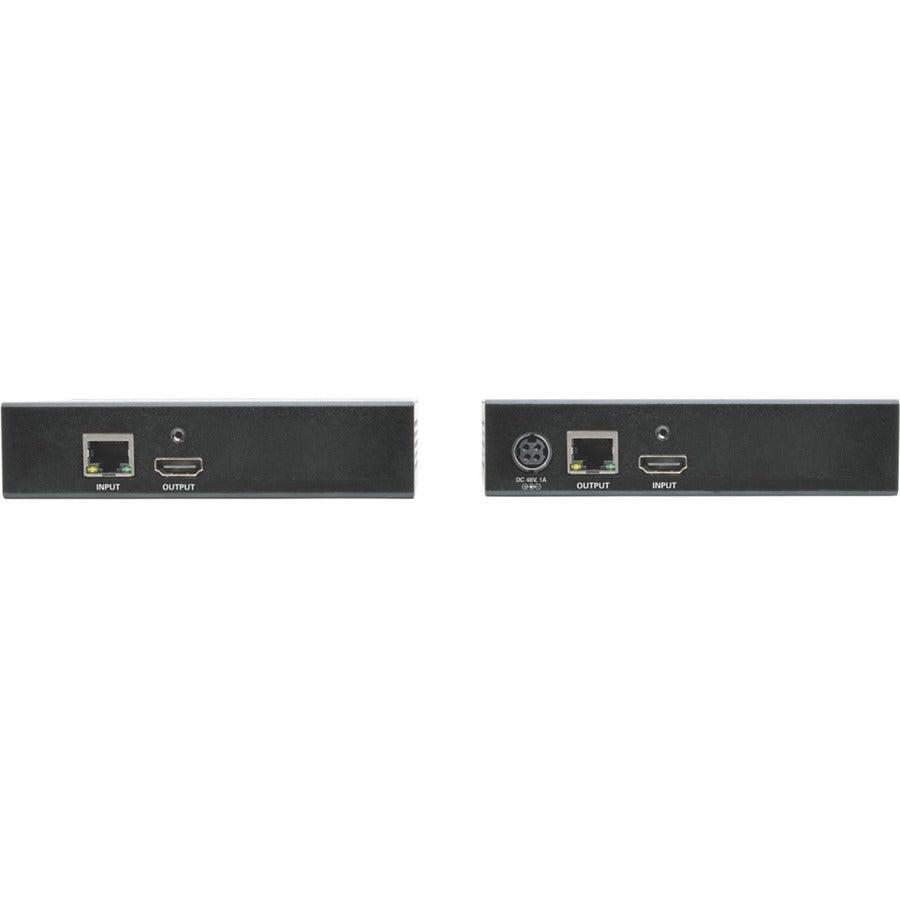

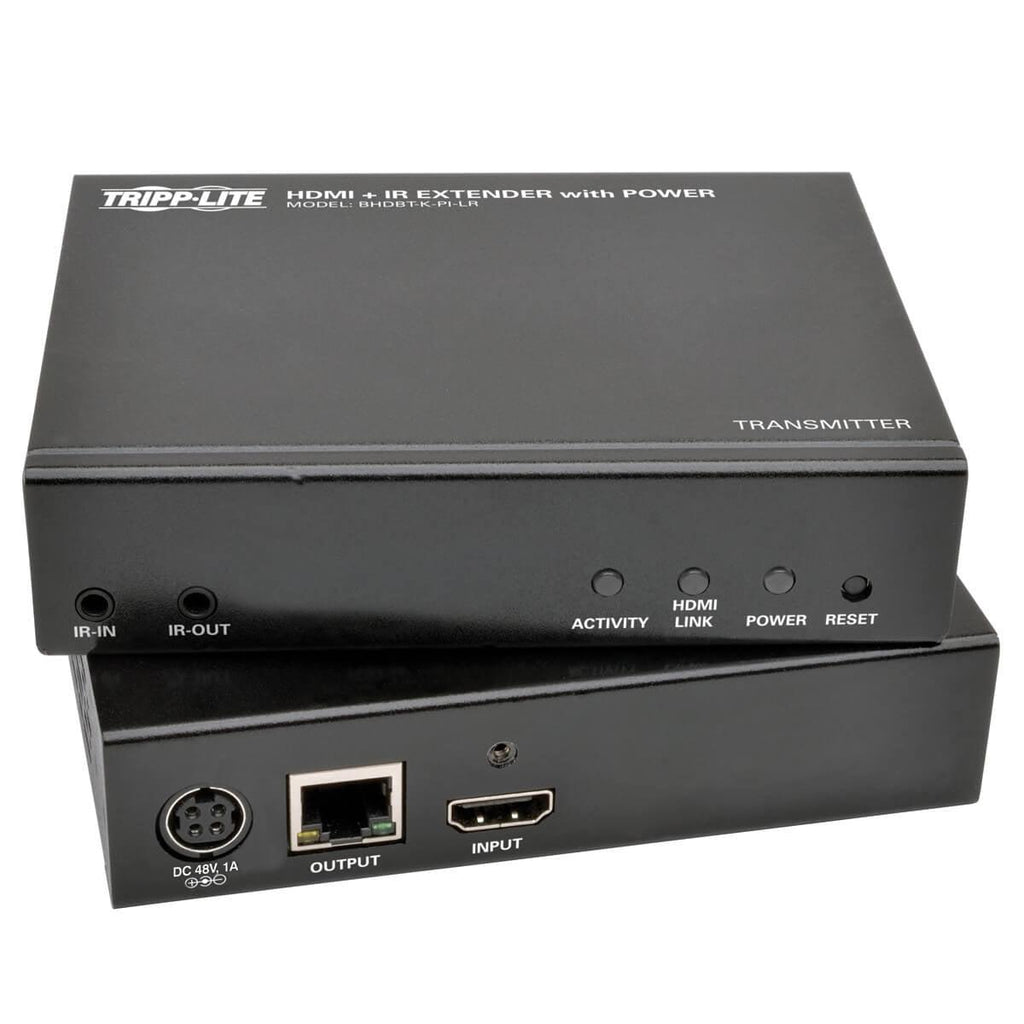

Tripp Lite Hdbaset Hdmi Over Cat5E/6/6A Extender Kit With Power And Ir Control, 4K X 2K Uhd/1080P, Up To 99.97 M (328-Ft.)

Tripp Lite Hdbaset Hdmi Over Cat5E/6/6A Extender Kit With Power And Ir Control, 4K X 2K Uhd/1080P, Up To 99.97 M (328-Ft.)

SKU:BHDBT-K-PI-LR

Regular price $322.24
Regular price Sale price $322.24
Sale Sold out
Shipping calculated at checkout.
          View full details
          Description
          Specifications
          Reviews, Que. & Ans.

          Description :

          HDBaseT HDMI over Cat5e/6/6a Extender Kit with Power and IR Control, 4K x 2K UHD/1080p, Up to 99.97 m (328-ft.)

          Tripp Lite HDBaseT HDMI over Cat5e/6/6a Extender Kit with Power and IR Control, 4K x 2K UHD/1080p, Up to 99.97 m (328-ft.). Type: AV transmitter & receiver, Maximum resolution: 3840 x 2160 pixels, Cable types supported: Cat5e,Cat6,Cat6a. AC input voltage: 100-240 V, AC input frequency: 50 - 60 Hz, Operating voltage: 48 V. Package width: 150.1 mm, Package depth: 81 mm, Package height: 214.1 mm. Cables included: IR. Master (outer) case width: 320 mm, Master (outer) case length: 246.9 mm, Master (outer) case height: 430 mm

          The BHDBT-K-PI-LR HDBaseT HDMI over Cat5e/6/6a Extender Kit extends uncompressed HDMI audio and video and IR remote control signals up to 99.97 m (328-ft.) over a single Cat5e/6/6a cable, including an Ultra High Definition (UHD) 3840 x 2160 (4K x 2K) signal. In addition to HDMI and IR signals, this extender kit features built-in PoE technology, which powers the receiver over Cat5e/6/6a cable, eliminating the need for an external power source. The two-way IR remote control feature (@ 39 KHz) lets you control your Blu-ray player or other HDMI source using its remote when at the remote monitor or control your remote monitor using its remote when at the Blu-ray player. Locking HDMI ports (ideal for use with Tripp Lite’s P569-006-LOCK high-speed HDMI cables with locking connectors) on both the transmitter and receiver prevent cables from coming loose or undone, ensuring an intact signal. The plug-and-play BHDBT-K-PI-LR supports 7.1-channel surround sound, DTS-HD and Dolby TrueHD audio, as well as 3D video, EDID and HDCP. Attach the transmitter and receiver units to a wall, rack or pole with the included mounting hardware.

          - Ideal for digital signs, classrooms and trade show booths
          - Extends a 3840 x 2160 (4K x 2K) signal up to 99.97 m (328-ft.)
          - Supports 7.1-channel surround sound, DTS-HD and Dolby TrueHD
          - Built-in PoE technology powers receiver over Cat5e/6/6a cable
          - Plug and play—no software or drivers to install

          - Ideal for digital signage, classrooms, retail locations, conference rooms and trade show booths
          - Extends an Ultra High Definition (UHD) 3840 x 2160 (4K x 2K) signal up to 99.97 m (328-ft.)
          - Supports 7.1-channel surround sound, DTS-HD and Dolby TrueHD audio
          - Supports 3D video, EDID and HDCP
          - Reduces cable clutter and installation costs
          - Built-in PoE technology powers receiver over Cat5e/6/6a cable, eliminating need for external power source
          - 2-way 39 KHz IR remote control functionality lets you control your Blu-ray player with its remote while standing at the remote monitor (and vice versa)
          - Prevent cables from coming loose or disconnected, ensuring an intact signal
          - Ideal for use with Tripp Lite’s P569-006-LOCK high-speed HDMI cables with locking connectors
          - Plug and play with no software or drivers to download and install
          - Includes mounting hardware for attaching each unit to a wall, rack or pole

          Specifications :

          General Information

          Manufacturer Tripp Lite by Eaton
          Manufacturer Part Number BHDBT-K-PI-LR
          Manufacturer Website Address https://tripplite.eaton.com/
          Brand Name Tripp Lite by Eaton
          Product Model BHDBT-K-PI-LR
          Product Name BHDBT-K-PI-LR Video Console/Extender
          Product Type Video Extender Transmitter/Receiver
          UPC 037332186942
          Network (RJ-45)Yes

          Miscellaneous

          Package Contents
          • Transmitter Unit
          • Receiver Unit
          • IR-In Cable, 5 Ft.
          • IR-Out Cable, 6 Ft.
          • External Power Supply With C14 Inlet (Input: 100-240V, 50/60 Hz, 1.5A; Output: 48V, 1A), 4.5 Ft.
          • C13 to NEMA 5-15P Power Cord, 6 Ft.
          • Mounting Hardware
          • Owner'S Manual
          Environmentally FriendlyYes

          Warranty

          Limited Warranty1 Year
