Tripp Lite by Eaton

Tripp Lite Hdbaset Hdmi Over Cat5E/6/6A Extender Kit With Serial And Ir Control, 1080P, Up To 500-Ft. (150M)

Tripp Lite Hdbaset Hdmi Over Cat5E/6/6A Extender Kit With Serial And Ir Control, 1080P, Up To 500-Ft. (150M)

SKU:BHDBT-K-SI-ER

Regular price $329.24
Regular price Sale price $329.24
Sale Sold out
Shipping calculated at checkout.
          View full details
          Description
          Specifications
          Reviews, Que. & Ans.

          Description :

          HDBaseT HDMI Over Cat5e/6/6a Extender Kit with Serial and IR Control, 1080p, Up to 500-ft. (150M)

          Tripp Lite HDBaseT HDMI Over Cat5e/6/6a Extender Kit with Serial and IR Control, 1080p, Up to 500-ft. (150M). Type: AV transmitter & receiver, Maximum resolution: 1920 x 1080 pixels, Cable types supported: Cat5e,Cat6,Cat6a. Audio input: 6x 3.5MM (FEMALE). AC input voltage: 100-240 V, AC input frequency: 50 - 60 Hz, Operating voltage: 5 V. Receiver dimensions (WxDxH): 114.3 x 27.94 x 27.94 mm, Receiver weight: 226.7 g, Transmitter dimensions (WxDxH): 114.3 x 63.5 x 27.94 mm. Package width: 289.6 mm, Package depth: 165.1 mm, Package height: 55.9 mm

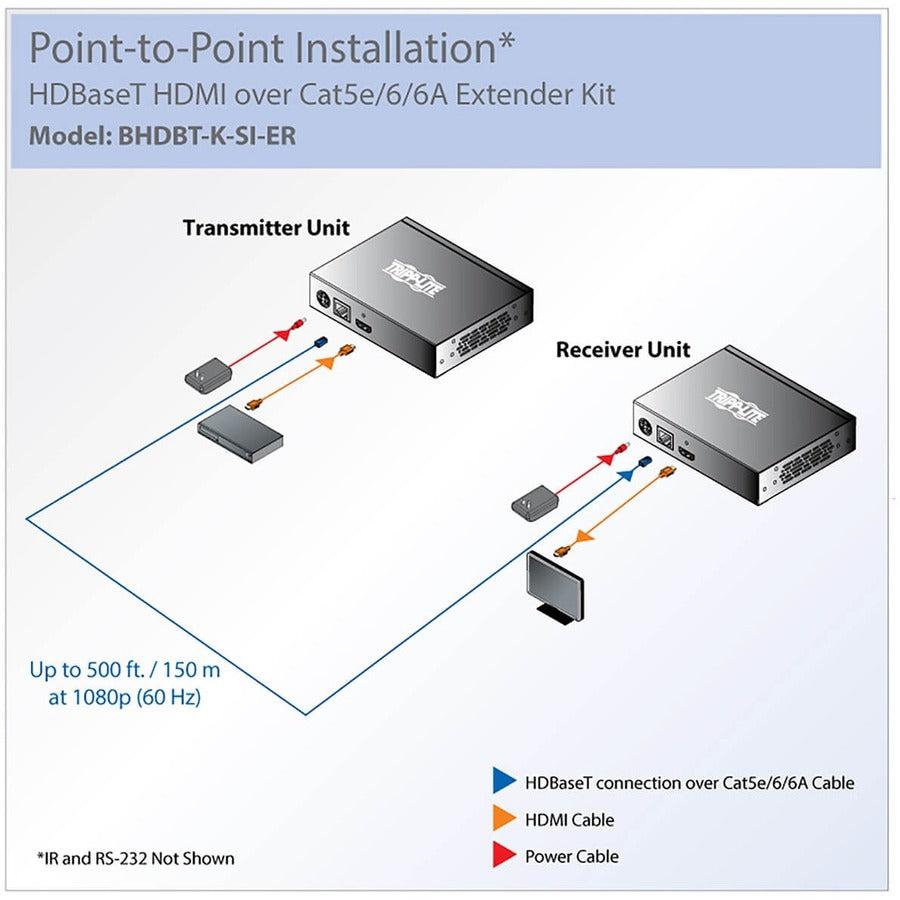

          The BHDBT-K-SI-ER HDBaseT Extender Kit allows you to transmit HDMI audio and video, RS-232 serial and IR Remote Control signals up to 152.4 m (500-ft.) over a single Cat5e/6/6a cable, including a 1920 x 1080 (1080p) signal @ 60 Hz. Add up to five Tripp Lite BHDBT-TR-SI-ER transceivers (sold separately) between the transmitter and receiver units to further expand the range up to 3,000 feet (900 m) with a monitor connected via HDMI port to each transceiver. You can also control RS-232 serial devices, such as touchscreen displays or scanners, at baud rates up to 115 Kbps. The BHDBT-K-SI-ER’s 2-way IR Remote Control feature (@ 39 KHz) lets you control your Blu-ray player using its remote when at the remote monitor or control your remote monitor using its remote when at the Blu-ray player. Locking HDMI ports (ideal for use with Tripp Lite’s High-Speed HDMI cables with locking connectors, such as P569-006-LOCK) on both the transmitter and receiver prevent cables from coming loose or undone, ensuring an intact signal. The BHDBT-K-SI-ER supports 7.1-channel surround sound, DTS-HD and Dolby TrueHD audio, as well as 3D video, EDID and HDCP. Included mounting hardware lets you attach each unit to a wall, rack or pole. There’s no software to download or install, and you can have the BHDBT-K-SI-ER Extender Kit set up and ready to go quickly.

          - Extends a 1080p @ 60 Hz signal up to 500 feet (150 m)
          - Supports 7.1-channel surround sound, DTS-HD and Dolby TrueHD
          - Controls RS-232 serial devices at baud rates up to 115 Kbps
          - Allows you to control a Blu-rayâ„¢ player from a remote monitor
          - Plug and play—no software or drivers to install

          - Extends a High Definition 1920 x 1080 (1080p) @ 60 Hz signal up to 500 feet (150 m)
          - Accepts up to five BHDBT-TR-SI-ER transceivers and six total monitors to further expand the range up to 3,000 feet (900 m)
          - Supports 7.1-channel surround sound, DTS-HD and Dolby TrueHD audio
          - Supports 36-bit Deep Color (12 bits per channel), CEC pass-through, 3D video, EDID and HDCP
          - 2-way 39 KHz IR Remote Control functionality lets you control your Blu-ray player with its remote while standing at the remote monitor (and vice versa)
          - RS-232 serial port supports 115 Kbps full-duplex baud rates for scanners and touchscreen monitors
          - Plug-and-play engineering means no software or drivers to download and install
          - Ready to use in minutes Included mounting hardware lets you install each unit on a wall, rack or pole
          - Locking HDMI ports on both the transmitter and receiver prevent cables from coming loose or disconnected, ensuring an intact signal

          Specifications :

          General Information

          Manufacturer Tripp Lite by Eaton
          Manufacturer Part Number BHDBT-K-SI-ER
          Manufacturer Website Address https://tripplite.eaton.com/
          Brand Name Tripp Lite by Eaton
          Product Model BHDBT-K-SI-ER
          Product Name BHDBT-K-SI-ER Video Console/Extender
          Product Type Video Extender Transmitter/Receiver
          UPC 037332187086
          Network (RJ-45)Yes

          Physical Characteristics

          Color FamilyMulticolor
          Product ColorBlack

          Miscellaneous

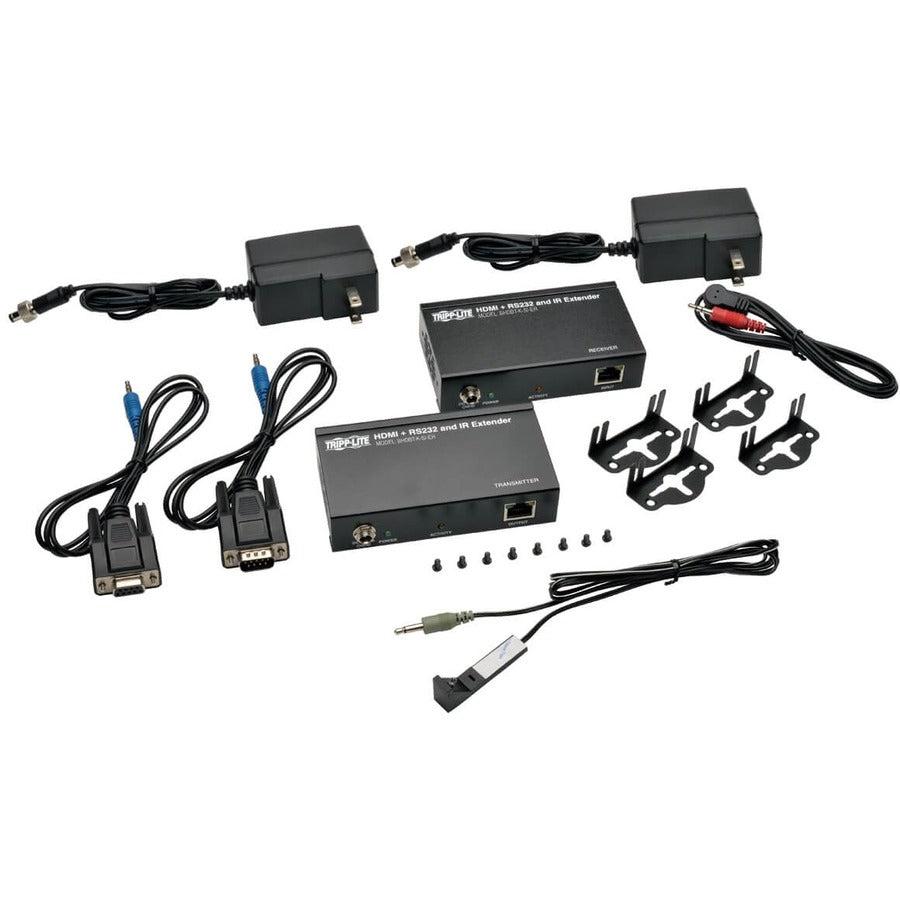

          Package Contents
          • Transmitter
          • Receiver
          • IR-IN and IR-OUT Cables
          • 3.5 mm Male to DB9 Female Adapter Cable
          • 3.5 mm Male to DB9 Male Adapter Cable
          • 2 x External Power Supplies (Input: 100-240V, 50/60 Hz, 0.5A Output: 5V, 3A)
          • Mounting Hardware
          • Owner's Manual
          Environmentally FriendlyYes

          Warranty

          Limited Warranty1 Year
