Tripp Lite NetDirector 8-Port 1U Rack-Mount Console KVM Switch with 19-in. LCD + 8 PS2/USB Combo Cables. Display diagonal: 48.3 cm (19"), Display resolution: 1280 x 1024 pixels, Display: LCD. Interface: PS2. Certification: UL 60950-1 (USA), CAN/CSA (Canada), FCC Part 15 Class A, CE, IEC 60950-1, UL, cUL, CE, FCC. Power consumption (typical): 29.1 W, AC adapter input voltage: 100 - 250 V, AC adapter frequency: 50 Hz. Dimensions (WxDxH): 431 x 685 x 44 mm

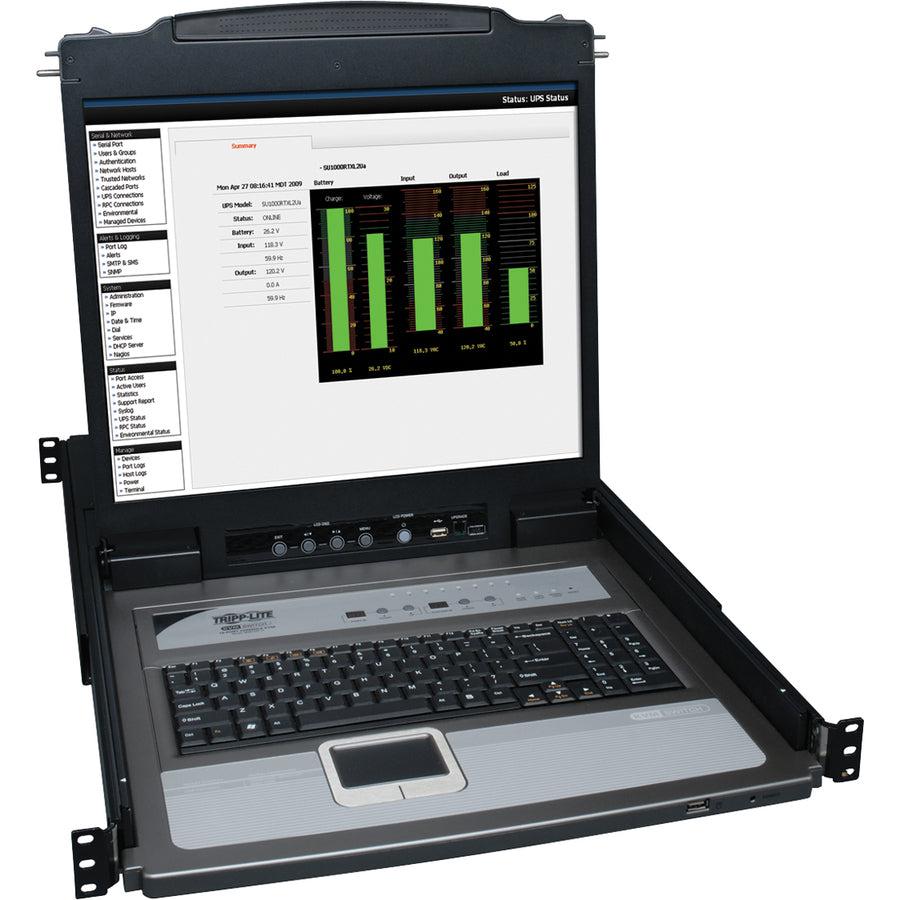

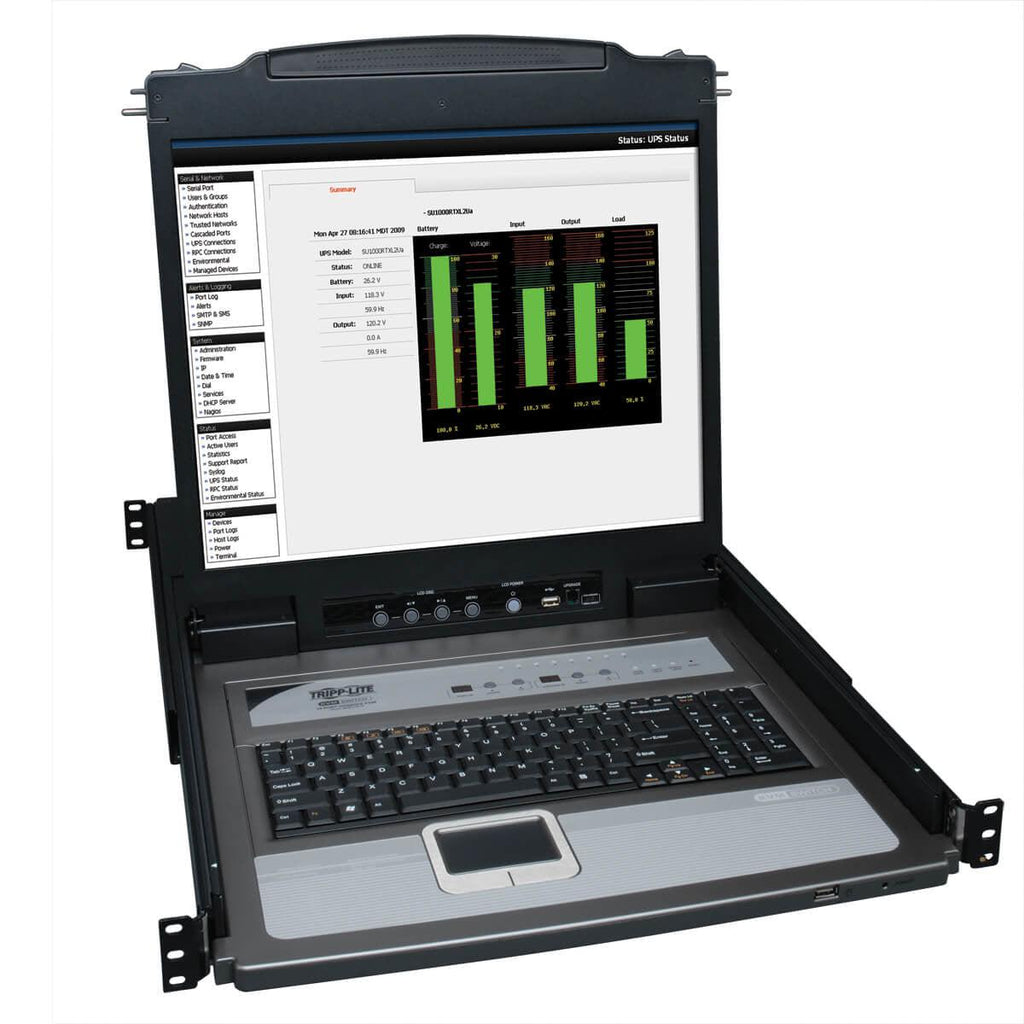

Tripp Lite’s B020-U08-19-K KVM Switch gives you a rack-mountable keyboard, LCD and touchpad in a single console that occupies only 1U of rack space. Easy to install and use, it’s the optimal solution for controlling up to 8 computers/servers. Increase the number of connected computers to up to 256 by daisy-chaining up to 31 B022-U08 KVM switches.
The B020-U08-19-K has a built-in 19” LCD screen that supports video resolutions up to 1280 x 1024. You can switch easily between the 8 ports using on-console push buttons, an on-screen display (OSD) or keyboard hot key commands. Multi-level password security can be set up for an administrator and up to 4 local users to ensure only those with authorization can access the connected computers.

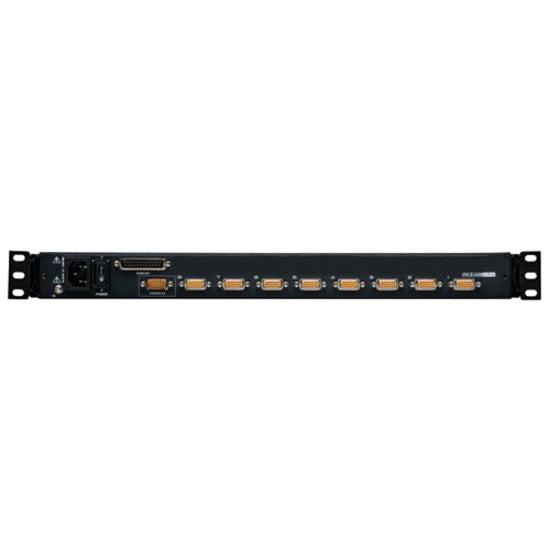

The eight included P778-series combo cable kits support both PS/2 and USB connections, so no adapters are required. A console cable kit can be plugged into the rear of the unit to allow for connection of a Tripp Lite B051-000 IP Remote Access Unit or an external console. A USB port on the front of the keyboard lets you connect an external mouse, plus an external USB 1.1 port means you can add a peripheral that can be shared across all connected servers. When not in use, the B020-U08-19-K stores neatly in a rack drawer and pulls out when needed. This KVM console is compatible with all major operating systems. Heavy-duty steel housing stands up to frequent use.
Saves Space and Money
● Combines an 8-port KVM switch, 19” LCD screen, full keyboard and touchpad in a 1U rack-mountable drawer ● Mounts into 19”-wide rack, 26”-38” deep ● Control up to 8 servers from a single, easily accessible console – ideal when rack space is at a premium ● Includes eight P778-Series cables that support computers with either PS/2 or USB connections ● Flip-up/fold-down screen keeps the console from blocking access to rack equipment when not in use ● Eliminates need to buy costly separate monitors, keyboards and mice for each computer/server
Simplifies IT Tasks
● Switch easily between the 16 ports via on-console buttons, on-screen display or hot keys; OSD can be set to English, Spanish, French, German or Japanese ● Hot pluggable; add or remove computers without having to power down the switch ● Auto-scan mode automatically sequences through all active ports that are accessible to the user
Large 19” LCD
● Extra-wide display makes multitasking easier ● Supports video resolutions up to 1280 x 1024 ● DDC emulation allows optimal output to the LCD
Multi-Level Password Security
● Enhances security by limiting access to an administrator and up to 4 local users ● Two-level log-out allows for manual log-out or automatic log-out after a user-defined period of time has passed
Expandability and Long-Lasting Reliability
● Increase the number of connected computers to up to 256 by daisy-chaining up to 31 B022-U08 KVM switches ● A console cable kit is included so you can connect the external console port to a keyboard, mouse or monitor, or a Tripp Lite B051-000 IP Remote Access Unit ● An additional USB port on the front of the unit lets you connect an external USB mouse; a USB port is also available to share a peripheral such as a flash drive or external hard drive with all the connected servers ● Compatible with all major operating systems for easy integration into your existing structure ● Firmware is upgradable with included cable and utility ● Heavy-duty steel housing stands up to frequent use
● Occupies just 1U of space in a rack-mountable drawer
● 19” LCD screen supports video resolutions up to 1280 x 1024
● Simplifies IT tasks with easy switching between all 8 ports
● Provides 2-level password security (administrator and user)
● Combo cables (included) connect to PS/2 or USB servers
System Requirements
● Computer with HD15 port, and USB port or PS/2 keyboard/mouse ports ● P778-006 USB/PS2 combo KVM cable kit is required for each connected computer/server ● Compatible with all major operating systems ● Power consumption: 120V, 60Hz, 28.5W; 230V, 50Hz, 29.1W
Package Includes
● B020-U08-19-K 1U rackmount console KVM switch with 19” LCD ● (x8) P778-006 6 ft. USB/PS2 combo KVM cable kits ● USB/PS2 combo console cable kit ● RJ11 to DB9 firmware upgrade cable ● C13 to 5-15P power cord ● Grounding wire ● Rackmount hardware ● CD with owner's manual ● Quick start guide
