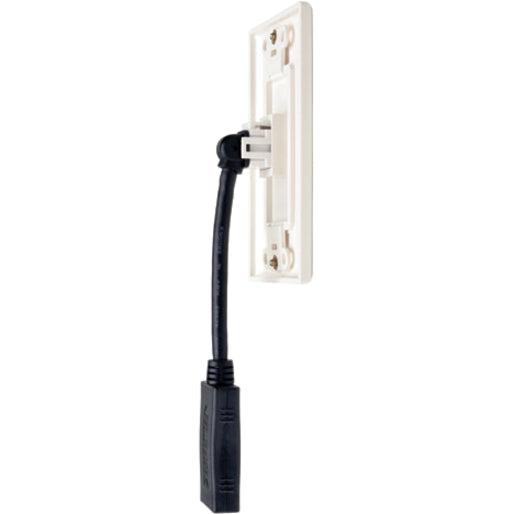

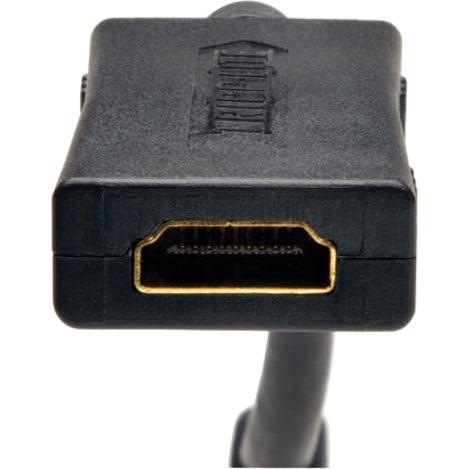

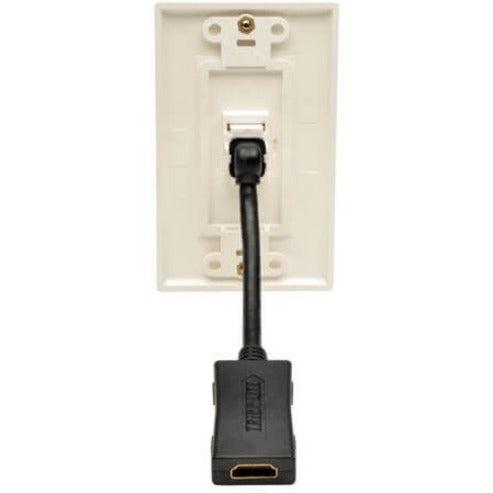

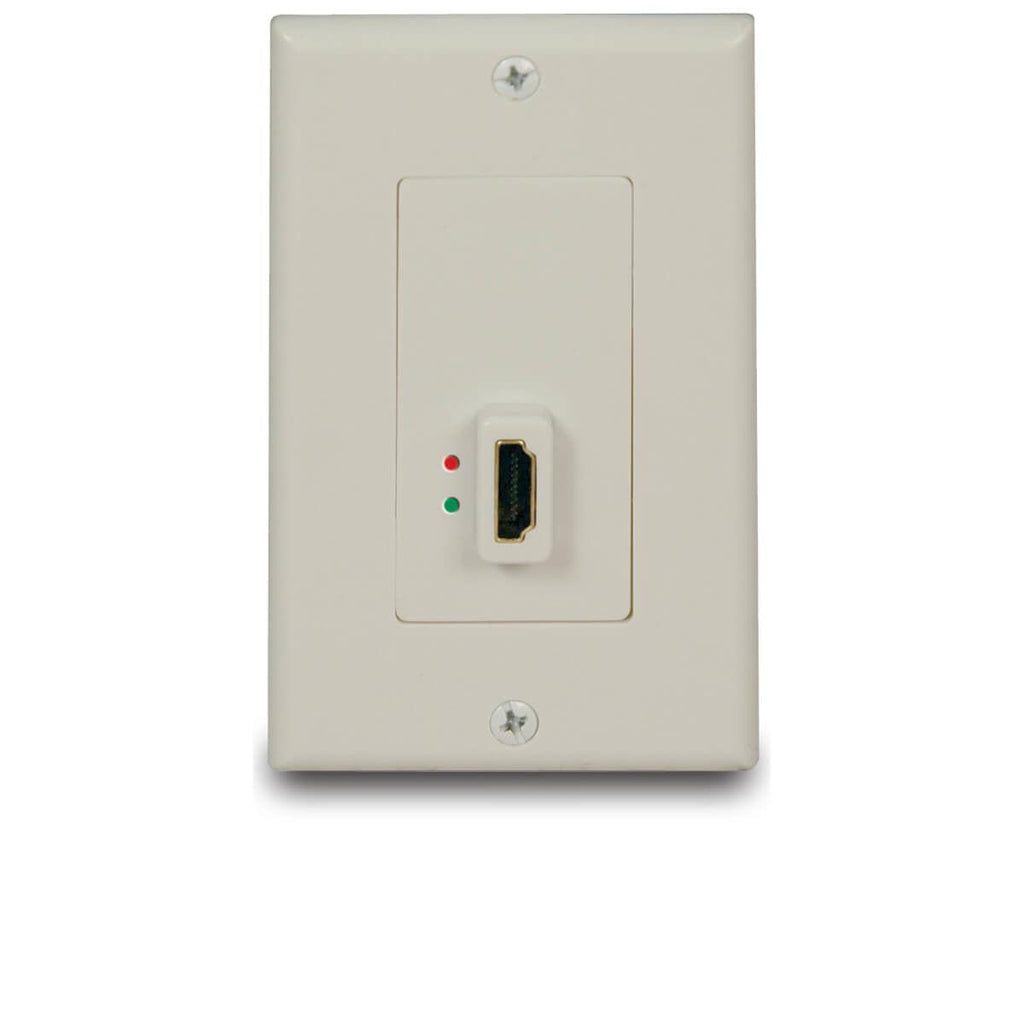

HDMI Display-Side Wallplate with Active Signal Booster, White (F/F)
Tripp Lite P166-001-A HDMI Display-Side Wallplate with Active Signal Booster, White (F/F). Socket type: HDMI. Product colour: White, Housing material: Plastic. Package width: 228.6 mm, Package depth: 12.7 mm, Package height: 177.8 mm. Country of origin: China, Master (outer) case width: 431.8 mm, Master (outer) case length: 25.4 mm
Tripp Lite's P166-001-A HDMI Display-side Wallplate with Signal Booster increases the distance a 1080p (24Hz) signal can be transmitted beyond the recommended 16-ft. (4.88 m.). It supports video resolutions up to 1080p, and a maximum distance of 150-ft. (45.72 m) from the source. Use P568-Series HDMI cables in most applications. When extending a 1080p (24Hz) signal more than 75-ft. (22.86 m), use cable made with 24Awg wiring, such as the P568-100-HD. (Lengths over 100-ft. (30.5 m) are available from Tripp Lite as a custom order) 24Awg HDMI cable is also needed when extending a 3D signal more than 50-ft. (15.24 m). A 3D signal can be extended up to 125-ft. (38.1 m) using 24Awg HDMI cable. Simply connect the longer cable between the source and the P166-001-A, and the shorter cable (16-ft. (4.88 m or less) between the adapter and the monitor. Software or drivers are not required. HDCP compliant.
Cleans up Home Theater installations by hiding HDMI Cables Wallplate is the size of a standard electrical outlet Extend a 1080p (24Hz) HDMI signal up to 150-ft. (45.72 m) from the source Use P568-Series HDMI cables in most applications When extending a 1080p (24Hz) signal more than 75-ft. (22.86 m), use cable made with 24Awg wiring, such as the P568-100-HD. (Lengths over 100-ft. (30.5 m) are available from Tripp Lite as a custom order) 24Awg HDMI cable is also needed when extending a 3D signal more than 50-ft. (15.24 m). A 3D signal can be extended up to 125-ft. (38.1 m) using 24Awg HDMI cable Supports DTS-HD, Dolby True HD and 7.1 Channel Surround Sound Audio HDCP compliant No software or drivers required
General Information
Manufacturer
Tripp Lite by Eaton
Manufacturer Part Number
P166-001-A
Manufacturer Website Address
https://tripplite.eaton.com/
Brand Name
Tripp Lite by Eaton
Product Model
P166-001-A
Product Name
HDMI Display-side Wallplate with Active Signal Booster (F/F)
