Tripp Lite by Eaton

Tripp Lite Pce-D9-04-Cbl 4-Port Db9 (Rs-232) Serial Pci Express (Pcie) Card With Breakout Cable, Full Profile

Tripp Lite Pce-D9-04-Cbl 4-Port Db9 (Rs-232) Serial Pci Express (Pcie) Card With Breakout Cable, Full Profile

SKU:PCE-D9-04-CBL

Regular price $69.61
Regular price Sale price $69.61
Sale Sold out
Shipping calculated at checkout.
          View full details
          Description
          Specifications
          Reviews, Que. & Ans.

          Description :

          4-Port DB9 (RS-232) Serial PCI Express (PCIe) Card with Breakout Cable, Full Profile

          Tripp Lite PCE-D9-04-CBL 4-Port DB9 (RS-232) Serial PCI Express (PCIe) Card with Breakout Cable, Full Profile. Host interface: PCIe, Expansion card form factor: Full-height / Low-profile, Expansion card standard: PCI 1.1. Product colour: Black, Green, Country of origin: China. Data transfer rate (max): 2.5 Gbit/s, Baud rate: 250 Kbit/s. Package width: 137.2 mm, Package depth: 170.2 mm, Package height: 55.9 mm. Products per master (outer) case: 10 pc(s), Master (outer) case width: 315 mm, Master (outer) case length: 355.6 mm

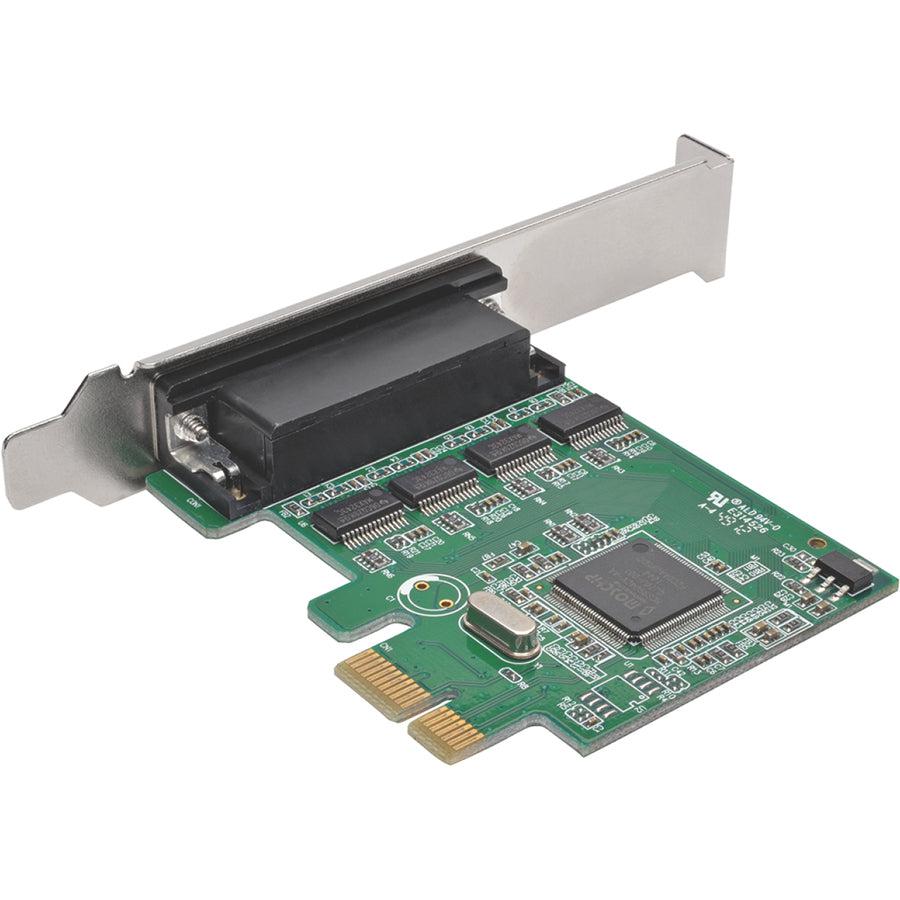

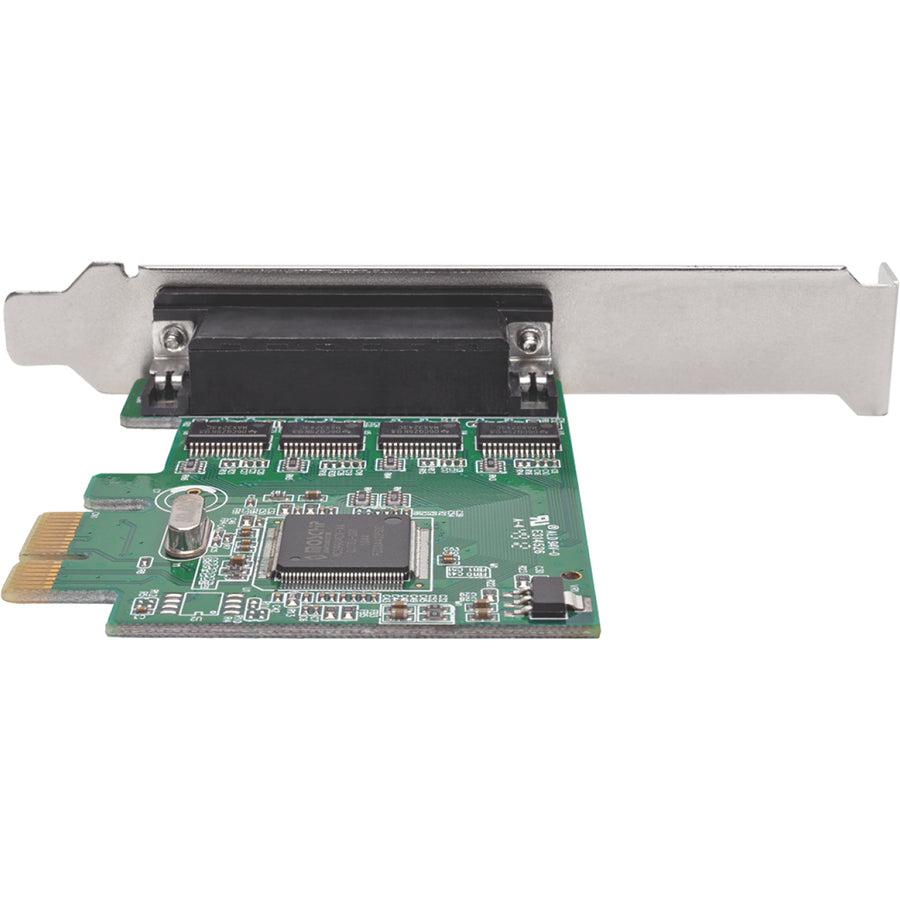

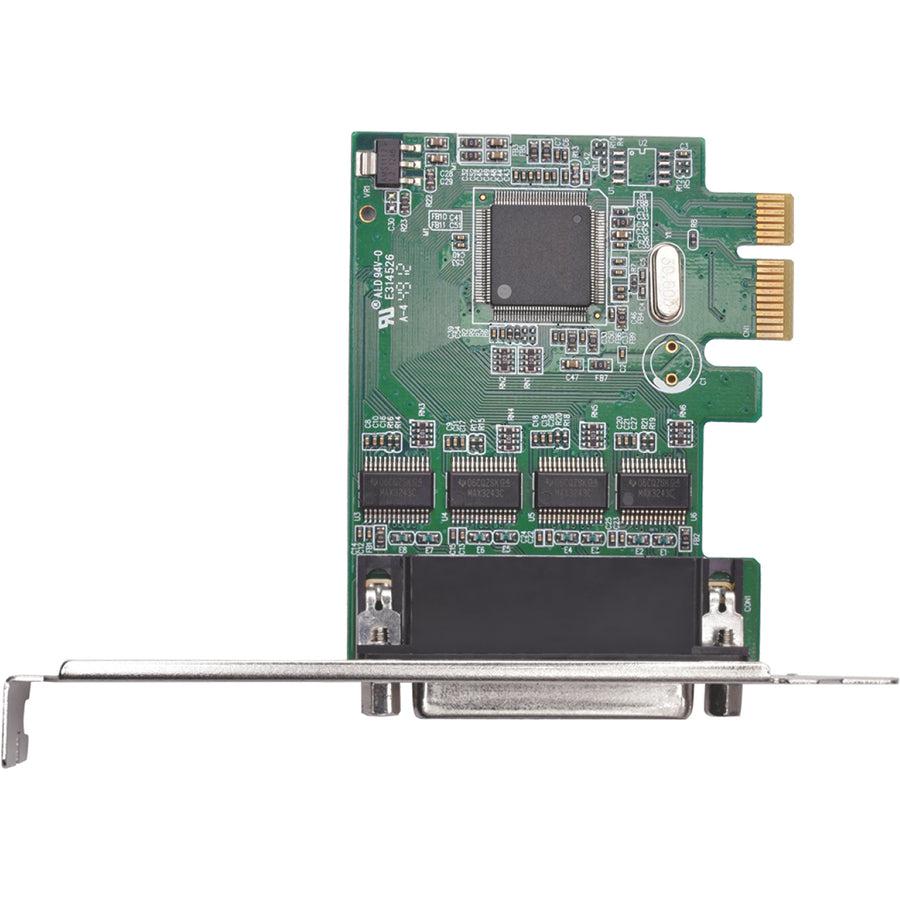

          The PCE-D9-04-CBL 4-Port DB9 Serial PCI Express Card adds four DB9 serial ports to your computer or server. By adding the PCE-D9-04-CBL to a computer with no DB9 ports or not enough of them, you can upgrade your DB9 capability without having to buy a new computer. Its single-chip design provides optimum reliability and speed, reducing your CPU’s load from conventional bridge-chip cards and saving you money.

          Perfect for home or office, the PCE-D9-04-CBL supports data transfer rates up to 250 Kbps on each port with throughput up to 2.5 Gbps. It easily installs inside your computer in just a few minutes. The standard bracket’s one-lane (x1) interface is compatible with x4, x8 and x16 PCIe slots. Connect the included DB9 breakout cable to the card’s HD44 port, and allow the appropriate drivers to automatically install on your hard drive (a driver CD is included if they don’t).

          The PCE-D9-04-CBL is fully compliant with PCI Express Revision 1.1 and compatible with industrial standard 16450/16550 UART. On-chip 256-byte depth FIFO in transmit and receive paths of each port. Supports hardware and software flow control; 5-, 6-, 7- and 8-bit serial formats; Even, Odd, None, Space and Mark parity; 1- or 2-stop bit operation; and re-map function for legacy ports.

          Adds 4 DB9 (RS-232) Serial Ports to Your Computer
          Upgrades your DB9 capability without buying a new computer or server
          Single-chip design reduces CPU load from conventional bridge-chip cards
          Each port supports data transfer rates up to 250 Kbps
          Perfect for home or office use

          Easy to Install Inside Your Computer
          1-lane (x1) interface compatible with x4, x8 and x16 PCIe slots
          Appropriate drivers install to your hard drive automatically

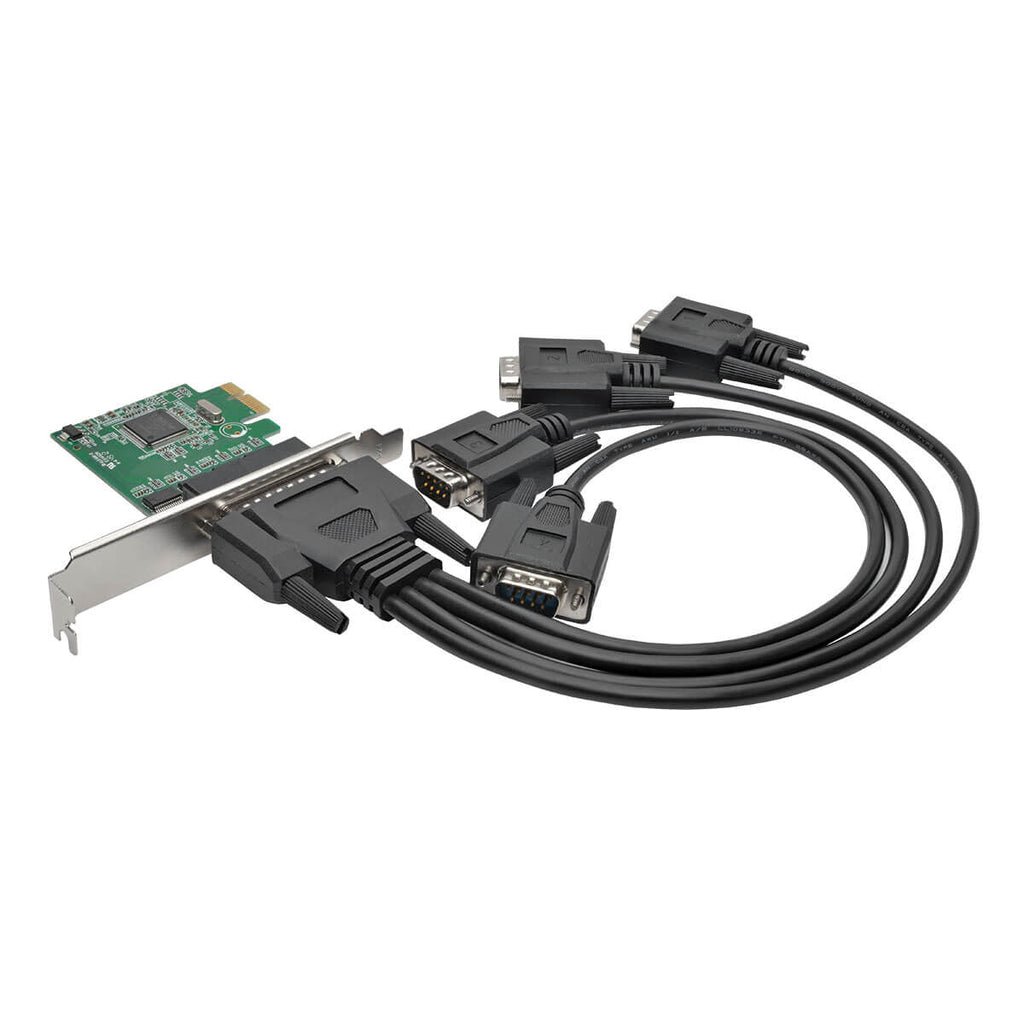

          Included breakout cable features 4 DB9 dongles

          Loaded with the Latest Features
          Complies with PCI Express Revision 1.1
          Throughput up to 2.5 Gbps
          Compatible with industrial standard 16450/16550 UART
          On-chip 256-byte depth FIFO in transmit and receive paths of each port
          Supports hardware and software flow control
          Supports 5-, 6-, 7- and 8-bit serial formats
          Supports Even, Odd, None, Space and Mark parity
          Supports 1- or 2-stop bit operation
          Supports re-map function for legacy ports

          Specifications :

          General Information

          Manufacturer Tripp Lite by Eaton
          Manufacturer Part Number PCE-D9-04-CBL
          Manufacturer Website Address https://tripplite.eaton.com/
          Brand Name Tripp Lite by Eaton
          Product Model PCE-D9-04-CBL
          Product Name 4-Port DB9 (RS-232) Serial PCI Express Card
          Product Type Multiport Serial Adapter
          UPC 037332193636

          Miscellaneous

          Package Contents
          • 4-Port DB9 (RS-232) Serial PCI Express Card
          • DB9 Breakout Cable (HD44 to 4x DB9 M/M)
          • Driver CD
          • Owner's Manual
          Environmentally FriendlyYes

          Warranty

          Limited Warranty2 Year
