Tripp Lite by Eaton

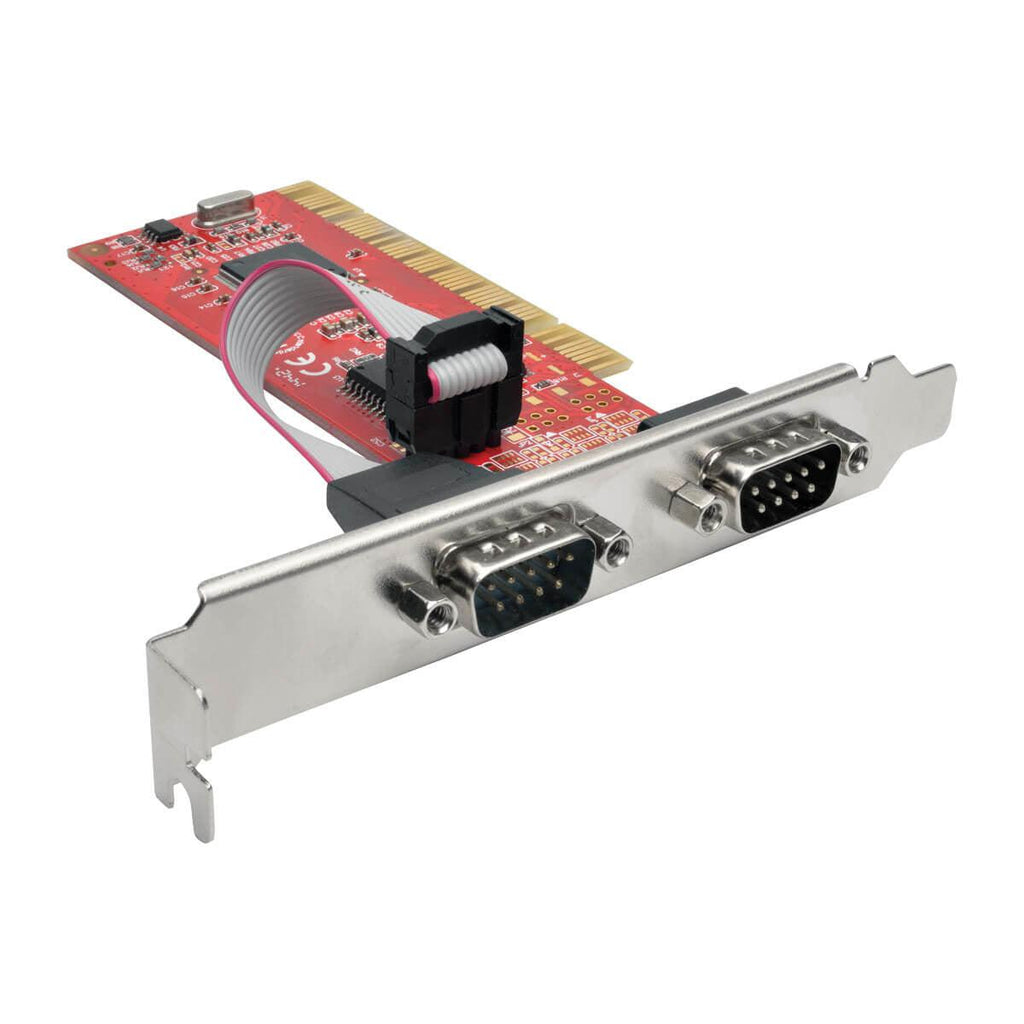

Tripp Lite Pci-D9-02 2-Port Db9 (Rs-232) Serial Pci Card With 16550 Uart, Full Profile

Tripp Lite Pci-D9-02 2-Port Db9 (Rs-232) Serial Pci Card With 16550 Uart, Full Profile

SKU:PCI-D9-02

Regular price $23.58
Regular price Sale price $23.58
Sale Sold out
Shipping calculated at checkout.
          View full details
          Description
          Specifications
          Reviews, Que. & Ans.

          Description :

          2-Port DB9 (RS-232) Serial PCI Card with 16550 UART, Full Profile

          Tripp Lite PCI-D9-02 2-Port DB9 (RS-232) Serial PCI Card with 16550 UART, Full Profile. Host interface: PCI, Expansion card form factor: Full-height, Expansion card standard: PCI 2.3. Product colour: Red, Country of origin: China. FIFO (First In, First Out): 256 B. Package width: 127 mm, Package depth: 147.3 mm, Package height: 25.4 mm. Products per master (outer) case: 10 pc(s), Master (outer) case width: 157.5 mm, Master (outer) case length: 276.9 mm

          The PCI-D9-02 2-Port DB9 Serial PCI Card adds two DB9 serial ports to your computer or server. By adding the PCI-D9-02 to a computer with no DB9 ports or not enough of them, you can upgrade your DB9 capability without having to buy a new computer.

          Perfect for home or office, the PCI-D9-02 supports data transfer rates up to 115.2 Kbps on each port. It easily installs inside your computer in just a few minutes. The standard bracket’s interface is compatible with universal 3.3V and 5V 32-bit PCI/PCI-X slots. Allow the appropriate drivers to automatically install on your hard drive (a driver CD is included if they don’t), and connect DB9 serial extension cables (such as Tripp Lite’s P520-006) to the card’s DB9 connectors.

          The PCI-D9-02 is fully compliant with PCI Local Bus Specification Revision 2.3 and compatible with industrial standard 16550 UART. On-chip 256-byte depth FIFO in transmit and receive paths of each port. Supports hardware and software flow control; PCI IRQ sharing and PCI power management; 5-, 6-, 7-, 8- and 9-bit serial formats; Even, Odd, None, Space and Mark parity; and 1- or 2-stop bit operation.

          Adds 2 DB9 (RS-232) Serial Ports to Your Computer
          Upgrades your DB9 capability without buying a new computer or server
          Each port supports data transfer rates up to 115.2 Kbps
          Perfect for home or office use

          Easy to Install Inside Your Computer
          Compatible with universal 3.3V and 5V 32-bit PCI/PCI-X slots
          Appropriate drivers install to your hard drive automatically

          Loaded with the Latest Features
          Complies with PCI Local Bus Specification Revision 2.3
          Compatible with industrial standard 16550 UART
          On-chip 256-byte depth FIFO in transmit and receive paths of each port
          Supports hardware and software flow control
          Supports PCI IRQ sharing and PCI power management
          Supports 5-, 6-, 7-, 8- and 9-bit serial formats
          Supports Even, Odd, None, Space and Mark parity
          Supports 1- or 2-stop bit operation

          Specifications :

          General Information

          Manufacturer Tripp Lite by Eaton
          Manufacturer Part Number PCI-D9-02
          Manufacturer Website Address https://tripplite.eaton.com/
          Brand Name Tripp Lite by Eaton
          Product Model PCI-D9-02
          Product Name PCI-D9-02 2-Port DB9 Serial PCI Card with 16550 UART, Full Profile
          Product Type Serial Adapter
          UPC 037332193681

          Miscellaneous

          Package Contents
          • PCI-D9-02 2-Port DB9 Serial PCI Card with 16550 UART, Full Profile
          • Driver CD
          • Owner's Manual
          Environmentally FriendlyYes

          Warranty

          Limited Warranty2 Year
