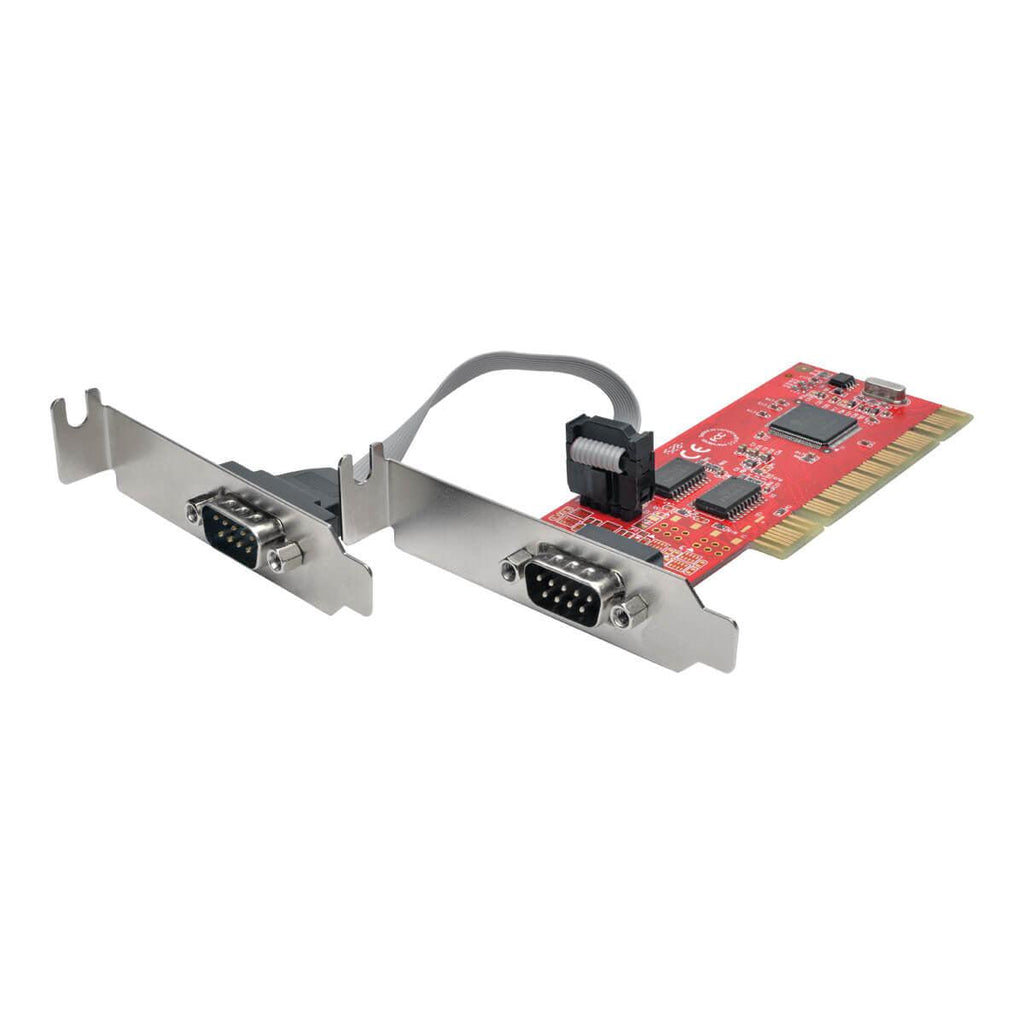

Tripp Lite Pci-D9-02-Lp 2-Port Db9 (Rs-232) Serial Pci Card With 16550 Uart, Low Profile

2-Port DB9 (RS-232) Serial PCI Card with 16550 UART, Low Profile

Tripp Lite PCI-D9-02-LP 2-Port DB9 (RS-232) Serial PCI Card with 16550 UART, Low Profile. Host interface: PCI, Expansion card form factor: Low-profile, Expansion card standard: PCI 2.3. Product colour: Red, Country of origin: China. FIFO (First In, First Out): 256 B. Package width: 127 mm, Package depth: 147.3 mm, Package height: 25.4 mm. Products per master (outer) case: 10 pc(s), Master (outer) case width: 160 mm, Master (outer) case length: 274.3 mm

The PCI-D9-02-LP 2-Port DB9 Serial PCI Card adds two DB9 serial ports to your computer or server. By adding the PCI-D9-02-LP to a computer with no DB9 ports or not enough of them, you can upgrade your DB9 capability without having to buy a new computer.

Perfect for home or office, the PCI-D9-02-LP supports data transfer rates up to 115.2 Kbps on each port. It easily installs inside your computer in just a few minutes. The low-profile bracket’s interface is compatible with universal 3.3V and 5V 32-bit PCI/PCI-X slots. Allow the appropriate drivers to automatically install on your hard drive (a driver CD is included if they don’t), and connect DB9 serial extension cables (such as Tripp Lite’s P520-006) to the card’s DB9 connectors.

The PCI-D9-02-LP is fully compliant with PCI Local Bus Specification Revision 2.3 and compatible with industrial standard 16550 UART. On-chip 256-byte depth FIFO in transmit and receive paths of each port. Supports hardware and software flow control; PCI IRQ sharing and PCI power management; 5-, 6-, 7-, 8- and 9-bit serial formats; Even, Odd, None, Space and Mark parity; and 1- or 2-stop bit operation.

Adds 2 DB9 (RS-232) Serial Ports to Your Computer
Upgrades your DB9 capability without buying a new computer or server
Each port supports data transfer rates up to 115.2 Kbps
Perfect for home or office use

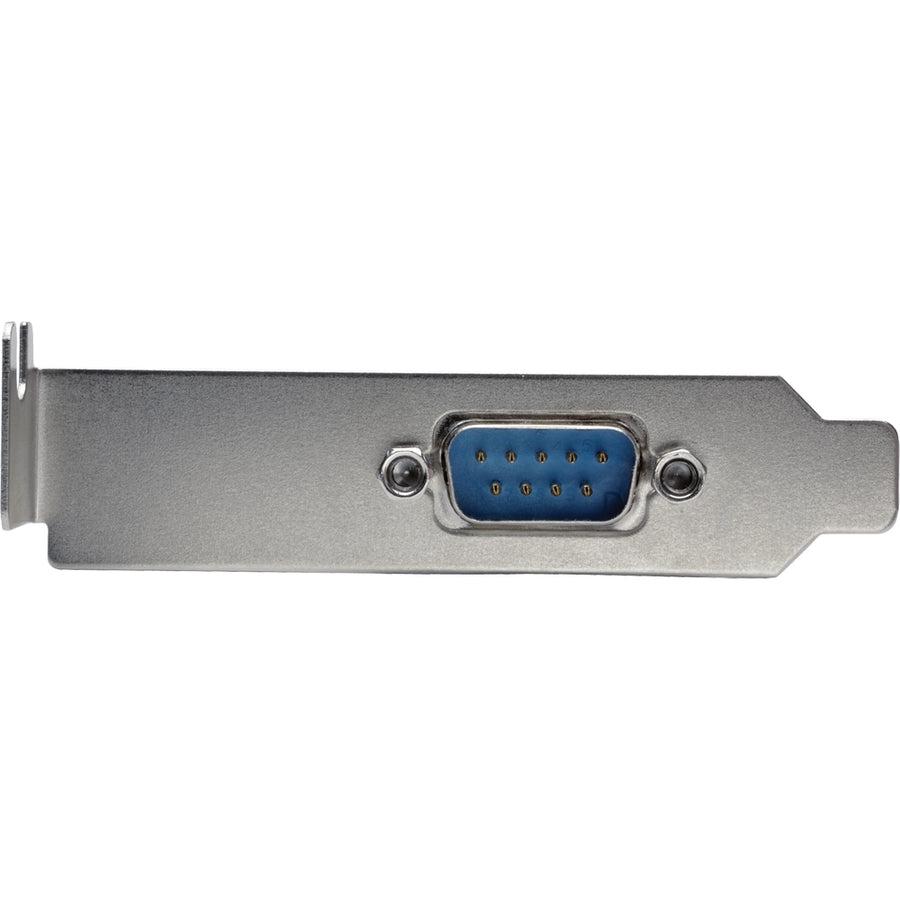

Low-profile bracket to fit shorter cases

Easy to Install Inside Your Computer
Compatible with universal 3.3V and 5V 32-bit PCI/PCI-X slots
Appropriate drivers install to your hard drive automatically

Loaded with the Latest Features
Complies with PCI Local Bus Specification Revision 2.3
Compatible with industrial standard 16550 UART
On-chip 256-byte depth FIFO in transmit and receive paths of each port
Supports hardware and software flow control
Supports PCI IRQ sharing and PCI power management
Supports 5-, 6-, 7-, 8- and 9-bit serial formats
Supports Even, Odd, None, Space and Mark parity
Supports 1- or 2-stop bit operation
