Tripp Lite PDU 3-Phase Vertical Strip ATS 208V 17.3kW 48 C13; 6 C19 0URM Rackmount
The PDU3V602D354B 17.3kW 3-Phase Vertical PDU Outlet Strip is a required accessory option for Tripp Lite's PDU360AT6G60 and other 3-phase ATS PDUs that specify compatibility with this model. It's recommended for high-density equipment racks in data centers and server rooms.

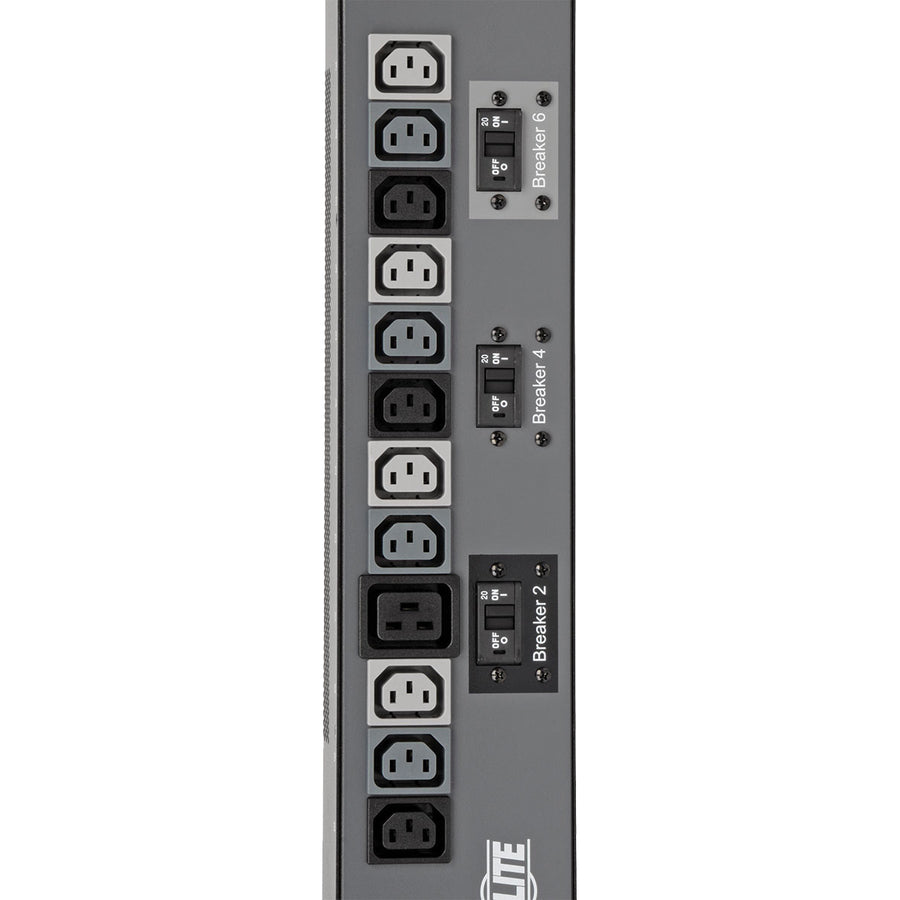

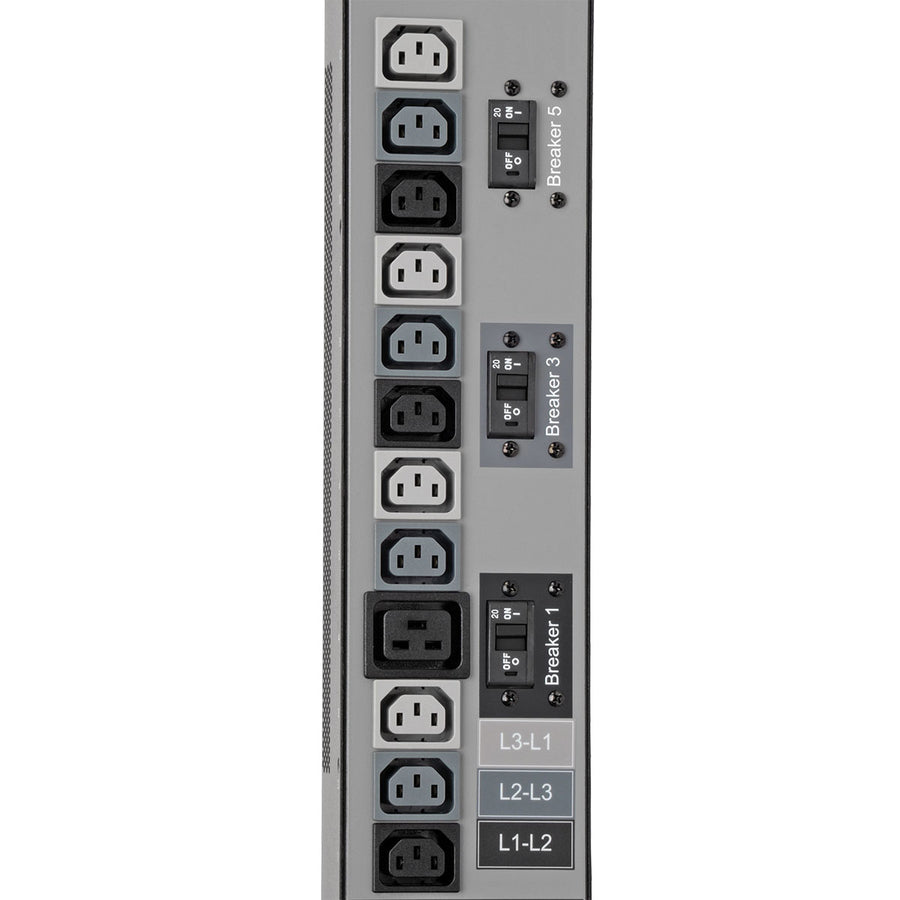

When used with Tripp Lite's PDU360AT6G60, the PDU3V602D354B supports up to 17.3kW total output with 27.8A balanced maximum full load per output phase combination (L1-L2, L2-L3, L3-L1) and 13.9A balanced maximum per breakered output load bank (C1-C6).

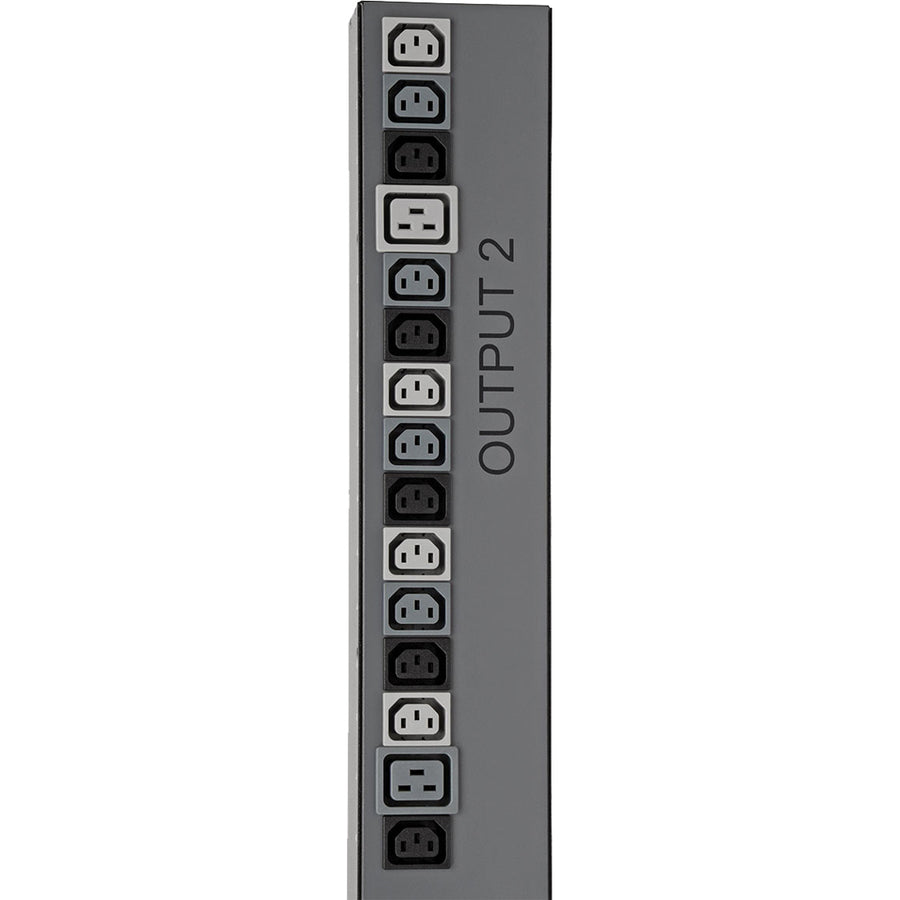

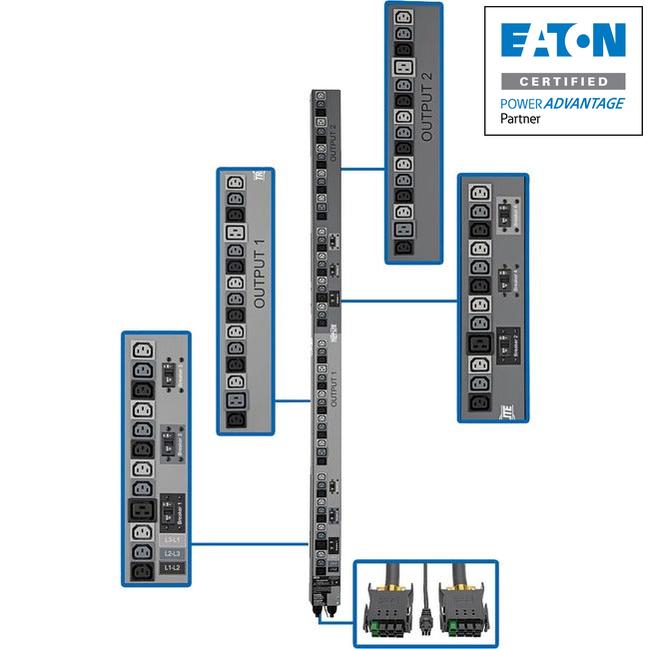

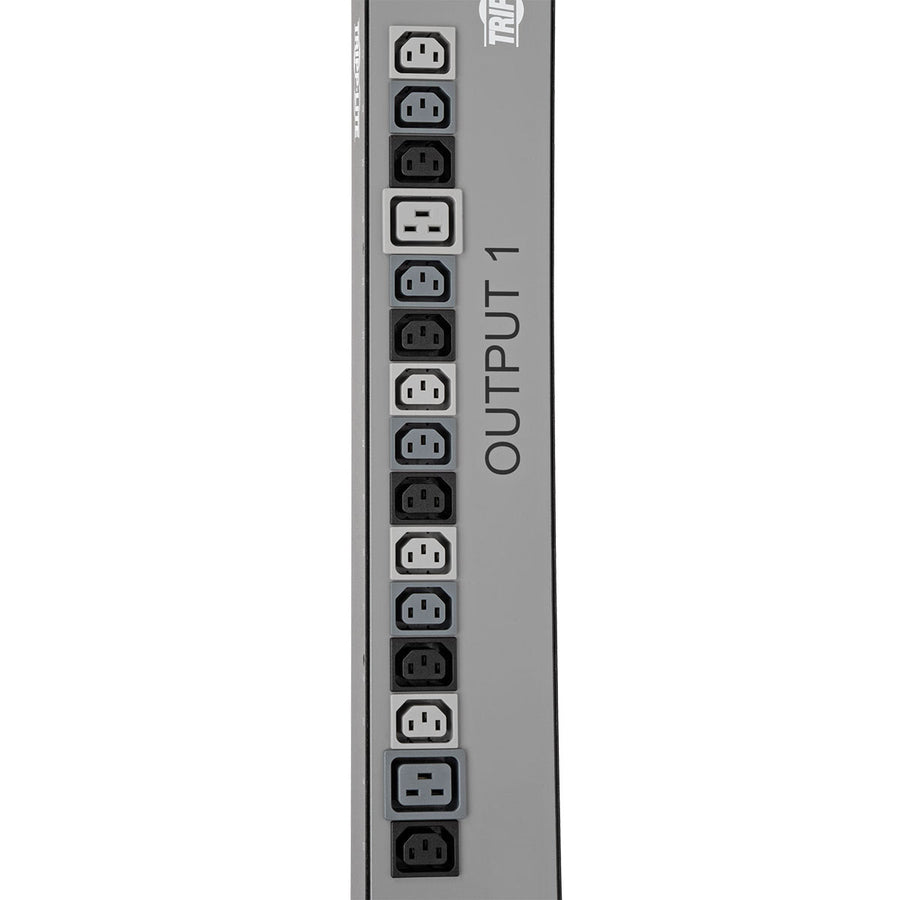

The 48 C13 and six C19 single-phase 208V outlets are interlaced to help you balance loads by spreading connections across the phase combinations throughout the rack. Each outlet is numbered and color-coded to help you keep track of connected devices and which phase combination powers each. Dual 2.5-foot power cords, each with a special seven-position input plug, connect directly to the ATS's rear receptacles.
The PDU3V602D354B's rugged all-metal housing mounts vertically in an EIA-standard 19-inch rack with no tools needed. Vertical 0U installation reduces cord clutter and improves airflow through the rack.
- Required for select Tripp Lite 3-phase ATS PDUs
- 54 single-phase 208V outlets (48 C13 & 6 C19)
- Supports up to 17.3kW total output
- Simplifies load balancing with interlaced color-coded outlets
- Supports 0U toolless vertical rack mounting
Product Type: PDU
Environmentally Friendly: Yes
Environmental Certification: RoHS
Taa Compliant: Yes
Mounting Orientation: Vertical
Country Of Origin: Taiwan
Rack Height: 0U
Brand Name: Tripp Lite
Manufacturer: Tripp Lite by Eaton
Product Model: PDU3V602D354B
Product Name: PDU3V602D354B 54-Outlet PDU
Mount Type: Rack-mountable
Manufacturer Part Number: PDU3V602D354B
Manufacturer Website Address: http://www.tripplite.com
Limited Warranty: 2 Year
Weight (Approximate): 19 lb
