Tripp Lite by Eaton

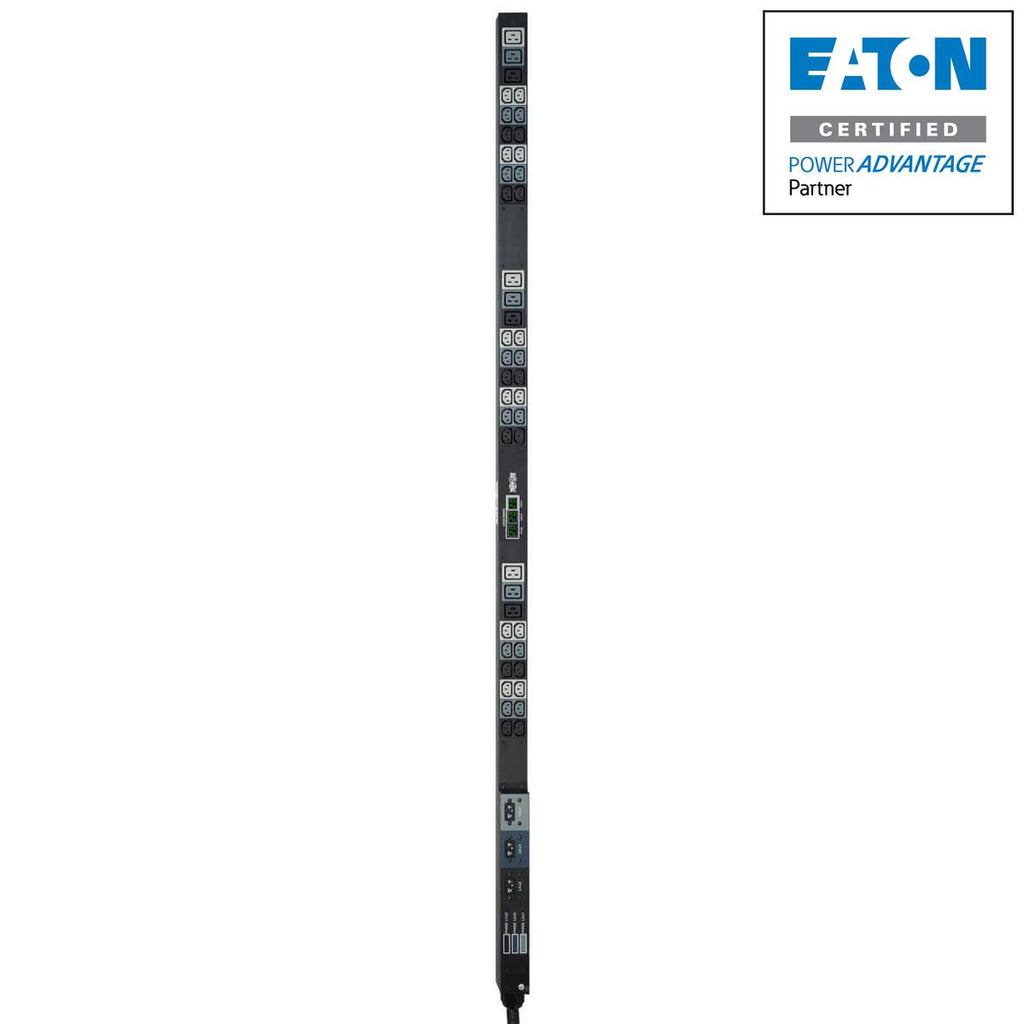

Tripp Lite Pdu3Mv6H50 Power Distribution Unit (Pdu) 45 Ac Outlet(S) 0U Black

Tripp Lite Pdu3Mv6H50 Power Distribution Unit (Pdu) 45 Ac Outlet(S) 0U Black

SKU:PDU3MV6H50

Regular price $764.78
Regular price Sale price $764.78
Sale Sold out
Shipping calculated at checkout.
          View full details
          Description
          Specifications
          Reviews, Que. & Ans.

          Description :

          3-Phase Metered PDU, 12.6 kW

          Tripp Lite PDU3MV6H50. PDU types: Metered, Rack capacity: 0U, Mounting: Horizontal/Vertical. AC outlets quantity: 45 AC outlet(s). Cable length: 1.83 m, Certification: UL60950-1 NOM. Nominal input voltage: 208 V, Maximum current: 35 A, Nominal output voltage: 208 V. Width: 55.9 mm, Depth: 67.3 mm, Dimensions (WxDxH): 67 x 56 x 1778 mm

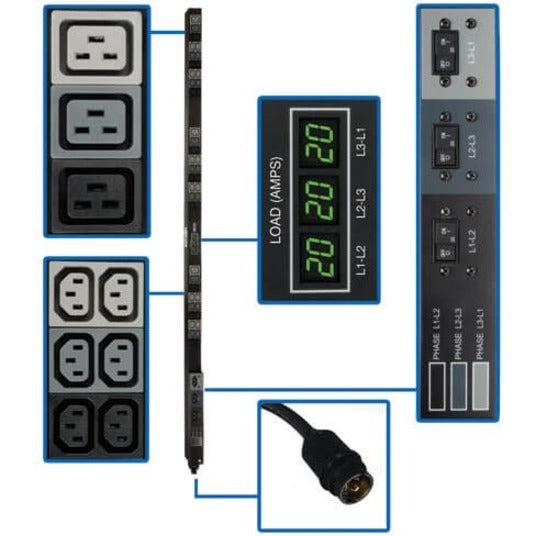

          3-Phase Metered PDU, 12.6 kW, 45 208V outlets (36 C13, 9 C19), 6 ft Hubbell CS8365C 50A input connection

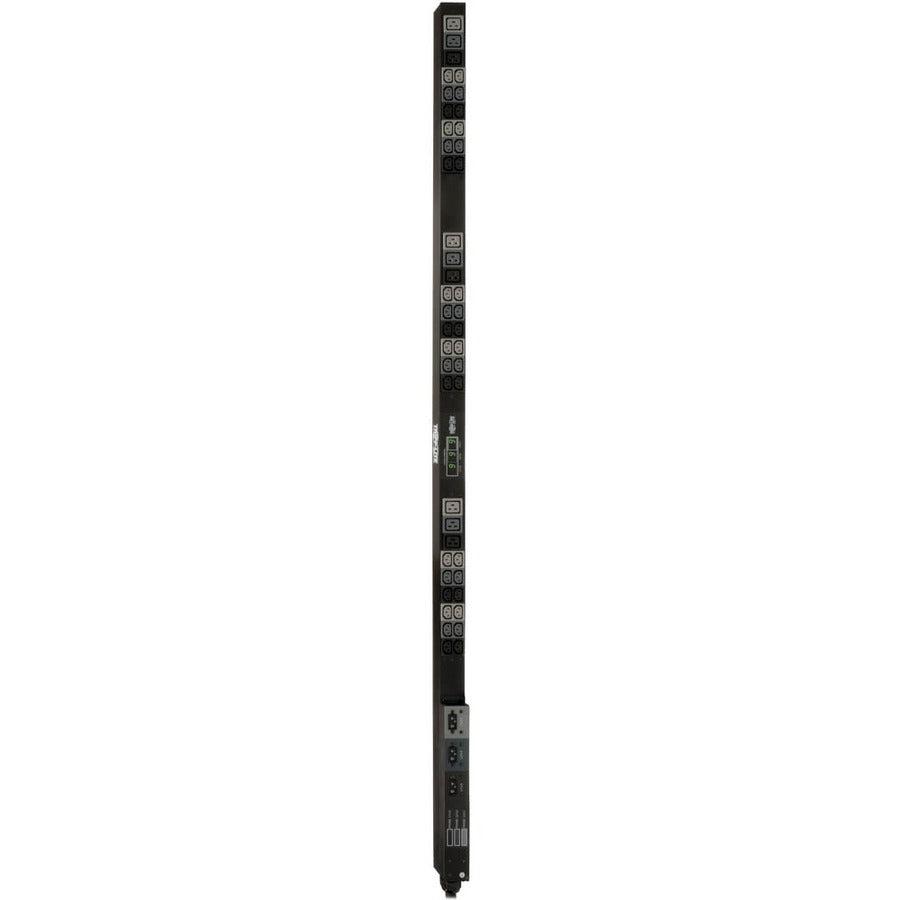

          - Metered 12.6kW 3 Phase 208V PDU; 70 in. / 178cm 0U vertical rackmount
          - Reports load current per-phase via set of 3 built-in current meters
          - Hubbell CS8365C 50A (3P+E) 208V 3 phase input; 6 ft. / 1.8m line cord
          - 45 208V outlets total (36 C13, 9 C19)
          - Toolless button-mount installation; cord retention brackets included

          Tripp Lite 3 phase Metered PDU / Power Distribution Units offer real-time local reporting of current levels in amps via set of 3 built-in digital meters. Enables visual monitoring of PDU current levels to preserve proper loading balance and prevent circuit overloads as additional equipment is added. Offers reliable rackmount multi-outlet power distribution from any protected UPS, generator or mains input power source. High quality design includes rugged all-metal housing and secure rackmount installation with included mounting accessories.

          Key Features
          - 12.6kW 3 phase 208V Metered Power Distribution Unit / PDU

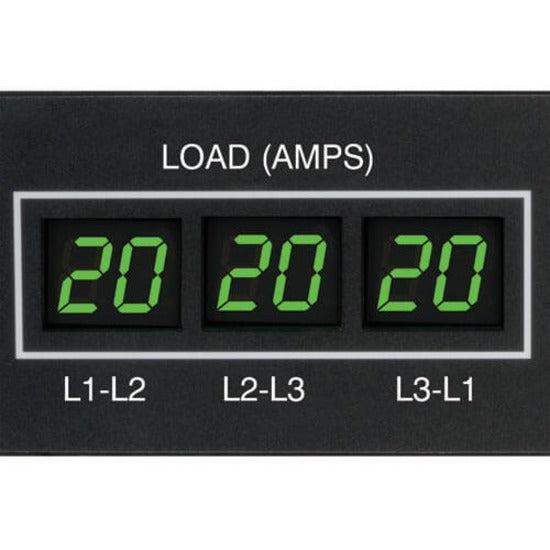

          - Set of 3 built-in current meters continuously report load current in amps for all 3 output phases

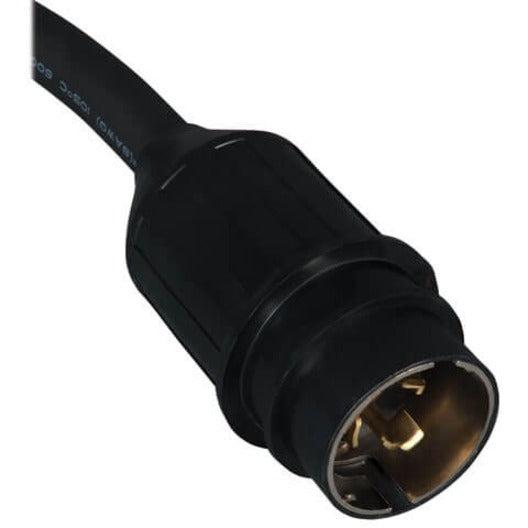

          - Attached Hubbell CS8365C 50A (3P+E) 208V 3 phase input plug with 6 ft. / 1.8m cord
          - 0U, 70 in. / 178cm vertical form factor supports installation in 2 or 4 post equipment racks

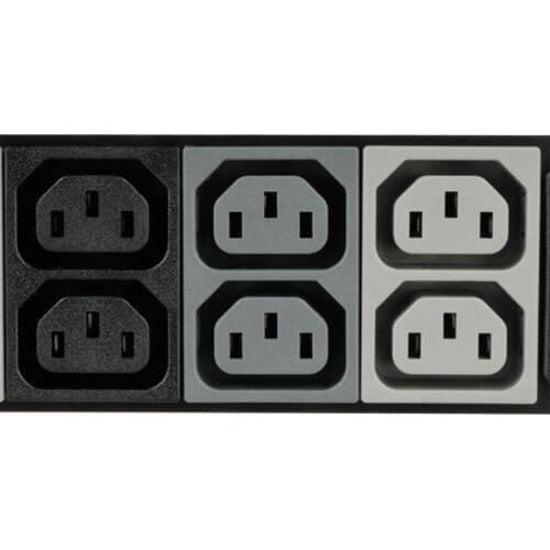

          - 45 total 208V outlets (36 C13, 9 C19) arranged in three breakered single phase output load banks
          - Included cord retention brackets keep vital network equipment plugged in and continuously powered

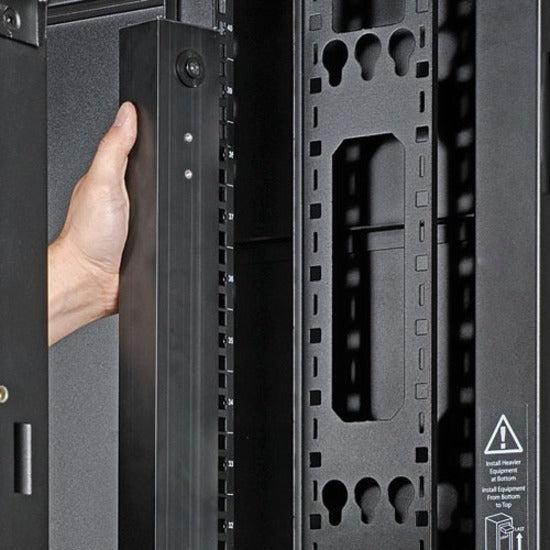

          - Toolless mounting supported in button-mount compatible racks, plus nut-and-bolt mounting brackets for other mounting applications

          Typical Applications
          Ideal for 3 phase network configurations in datacenters and heavily configured equipment racks

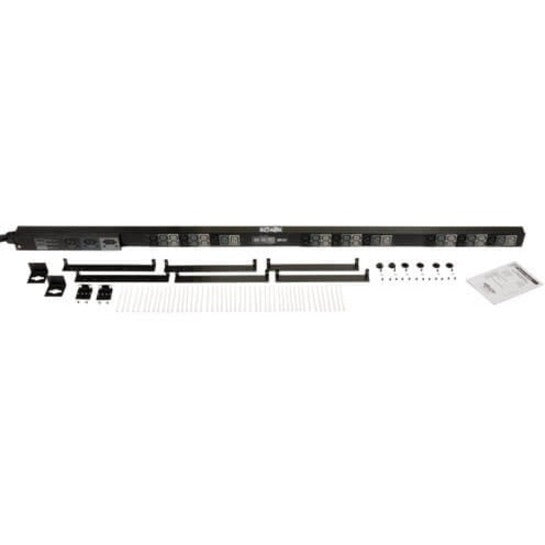

          Package Includes
          - Metered PDU with pre-installed mounting buttons
          - Cord retention brackets
          - Rack mounting brackets
          - Owner's manual

          Specifications :

          General Information

          Manufacturer Tripp Lite by Eaton
          Manufacturer Part Number PDU3MV6H50
          Manufacturer Website Address https://tripplite.eaton.com/
          Brand Name Tripp Lite by Eaton
          Product Series Metered
          Product Model PDU3MV6H50
          Product Name Metered PDU3MV6H50 45-Outlets PDU
          Product Type PDU
          UPC 037332163868
          Height70"
          Width2.7"
          Depth2.2"
          Weight (Approximate)14.50 lb

          Miscellaneous

          Package Contents
          • Metered PDU3MV6H50 45-Outlets PDU
          • Cord Retention Brackets
          • Rack Mounting Brackets
          • Owner's Manual
          Environmentally FriendlyYes
          Environmental CertificationRoHS

          Warranty

          Limited Warranty2 Year
