Description

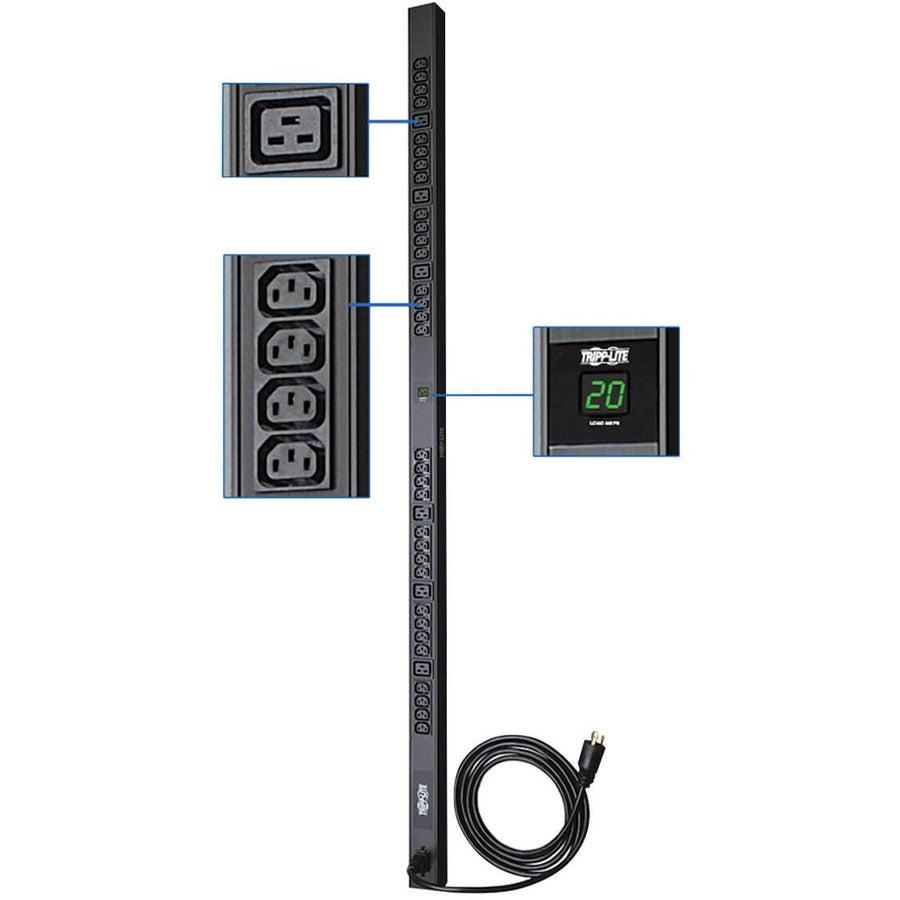

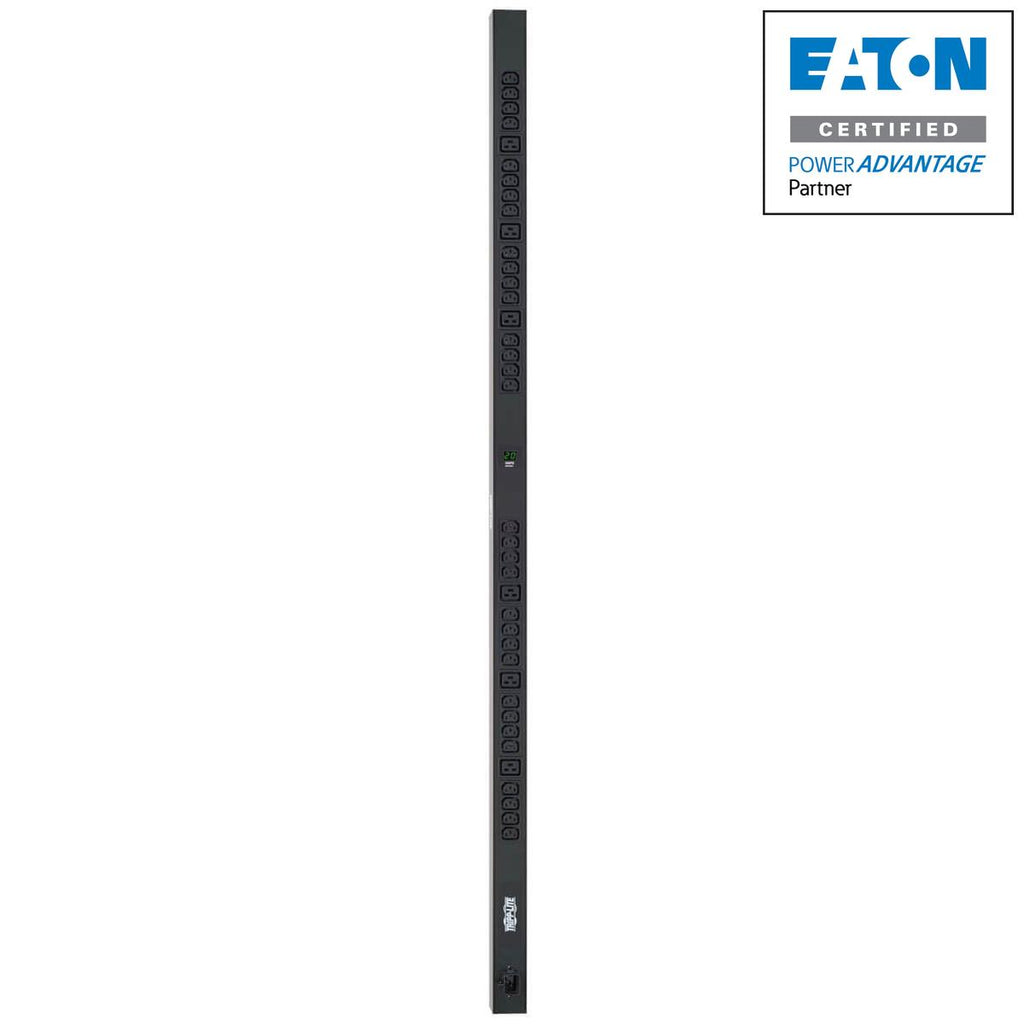

3.7kW Single-Phase Local Metered PDU, 208/230V Outlets (6-C19 & 32-C13 ) C20/L6-20P Cable 10 ft. (3.05 m) Cord, 0U Vertical
Tripp Lite PDUMV20HV 3.7kW Single-Phase Local Metered PDU, 208/230V Outlets (6-C19 & 32-C13 ) C20/L6-20P Cable 10 ft. (3.05 m) Cord, 0U Vertical. PDU types: Metered, Rack capacity: 0U, Mounting: Vertical. AC outlets quantity: 38 AC outlet(s), AC outlet types: C13 coupler, C19 coupler, Input connection type: NEMA L6-20P, IEC-320 C20. Cable length: 3.05 m, Certification: UL60950-1 (USA, Canada), NOM (Mexico), CE (IEC 60950). Nominal input voltage: 200-240 V, Maximum current: 20 A, AC input frequency: 50 - 60 Hz. Width: 57.2 mm, Depth: 1619.2 mm, Dimensions (WxDxH): 57 x 95 x 1620 mm
16/20A single phase 230/208V Local Metered Power Distribution Unit / PDU (Agency derated to 16A continuous) Two-digit lighted meter reports combined total output current in amps 10ft / 3m detachable input cable with NEMA L6-20P plug C20 inlet accepts a variety of 16A international cordsets 0U 63.75in / 162cm vertical rackmount format installs using no rack spaces 38 total outlets (6 C19, 32 C13) Included plug-lock inserts ensure components remain connected and powered Toolless installation supported in button-mount compatible equipment racks Bolt-down installation brackets support installation in other racks and additional surfaces
