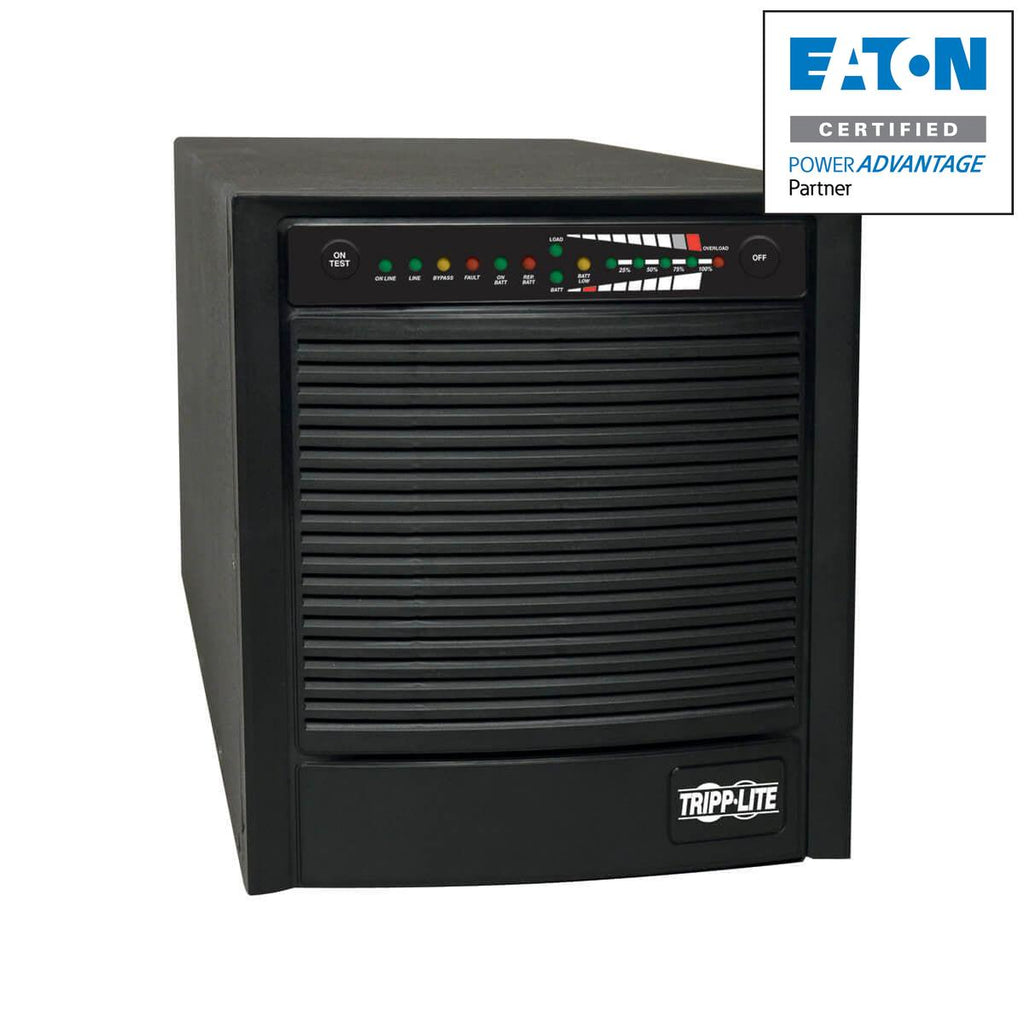

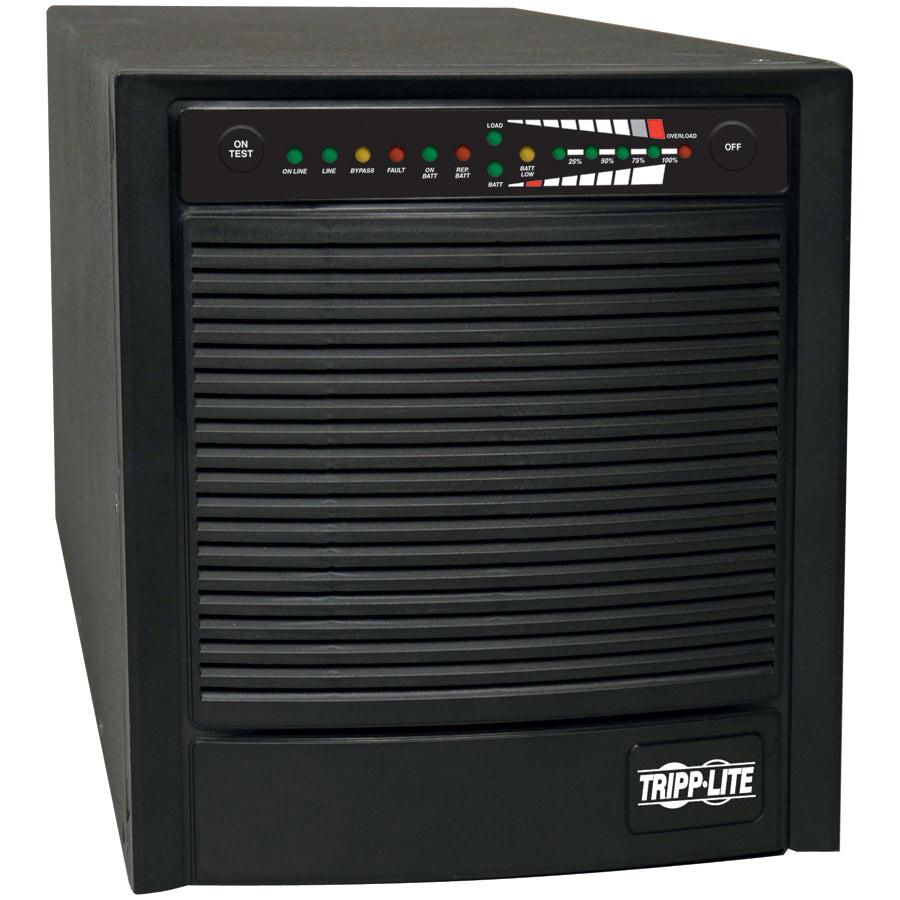

Tripp Lite Smartonline 110-120V 2.2Kva 1.6Kw On-Line Double-Conversion Ups, Extended Run, Snmp, Webcard, Tower, Usb, Db9 Serial

Tripp Lite Smartonline 110-120V 2.2Kva 1.6Kw On-Line Double-Conversion Ups, Extended Run, Snmp, Webcard, Tower, Usb, Db9 Serial

SKU:SU2200XLA

Regular price $962.43
Regular price Sale price $962.43
Sale Sold out
Shipping calculated at checkout.
          View full details
          Description
          Specifications
          Reviews, Que. & Ans.

          Description :

          SmartOnline 110-120V 2.2kVA 1.6kW On-Line Double-Conversion UPS, Extended Run, SNMP, Webcard, Tower, USB, DB9 Serial

          Tripp Lite SmartOnline 110-120V 2.2kVA 1.6kW On-Line Double-Conversion UPS, Extended Run, SNMP, Webcard, Tower, USB, DB9 Serial. UPS topology: Double-conversion (Online), Output power capacity: 2.2 kVA, Output power: 1600 W. AC outlet types: NEMA 5–15R,NEMA 5–20R,NEMA L5-20R, Power plug: NEMA 5-20P, AC outlets quantity: 7 AC outlet(s). Typical backup time at full load: 4.5 min, Typical backup time at half load: 14 min, Replacement battery cartridge: RBC48-SUTWR. Form factor: Tower, Product colour: Black, Cable length: 3.05 m. Width: 228.6 mm, Depth: 495.3 mm, Height: 260.4 mm

          Tripp Lite's Smart Online SU2200XLa on-line, double conversion UPS protects critical server, networking or telecommunications equipment from blackouts, brownouts, voltage fluctuations and surges in an attractive all-black upright tower form factor. Large capacity 2200VA/1600W UPS continuously converts incoming AC to DC, then back to perfect sine wave AC output at 120V AC (+/-2%). Removes harmonic distortion, fast electrical impulses, frequency fluctuations and other hard-to-solve power problems not addressed by other UPS systems. True sine wave output and zero transfer time offers guaranteed compatibility with all equipment types. Includes 7 UPS supported outlets. 2 three-outlet load banks can be independently controlled via software interface to selectively reboot remote equipment or automatically shed less critical loads to extend battery runtime for the most critical equipment. Battery support can be extended with the addition of external battery packs. Includes slot for internal SNMP/web card, plus DB9 enhanced serial monitoring port for unattended shutdown, remote control and monitoring of UPS system and power data. Network management interfaces support simultaneous communications via USB port, DB9 serial port and SNMPWEBCARD slot. HID-compliant USB interface enables integration with built-in power management and auto shutdown features of Windows and Mac OS X. Includes Tripp Lite's PowerAlert UPS Power Management Software. Compatible with Tripp Lite's Watchdog Service Monitoring and Control Software.
          - True on-line, double conversion UPS provides a constant, pure sine wave AC output
          - Maintains continuous operation through blackouts, brownouts, voltage fluctuations and surges with zero transfer time
          - Zero transfer time, on-line, double-conversion and economy-mode operation supported
          - Removes harmonic distortion, electrical impulses, frequency variations and other hard-to-solve power problems
          - Accepts input voltages between 80V and 150V (65V to 150V at loads under 70%), regulating output to 120V AC +/-2%
          - 2200VA/1600W output capacity with 7 total outlets (6 NEMA5-15/20R and 1 L5-20R)
          - Two built-in individually switchable load banks, each with three outets, can be controlled via software interface to selectively reboot remote equipment or automatically shed less critical loads to extend battery runtime for the most critical equipment
          - Standard internal battery set provides 14 min. runtime at half load and 4.5 min. at full load
          - Runtime is expandable with BP48V24-2U (limit 1), BP48V60RT-3U (multi-pack compatible) and BP48V27-2US (multi-pack compatible) external battery packs
          - Some external battery configurations require the use of Tripp Lite's External Battery Configuration Software (see manual)
          - Attractive all-black upright tower format
          - Simultaneous communications via HID-compliant USB port, serial port, and SNMP/web card slot
          - HID-compliant USB interface enables integration with built-in power management and auto shutdown features of Windows and Mac OS X
          - DB9 serial network interface supports RS-232 and contact closure messaging
          - Slot for optional SNMP/web card (part #: SNMPWEBCARD)
          - Included PowerAlert UPS Power Management Software and cabling provides monitoring of in-depth site power conditions, full UPS status and fault warnings, output load level and load bank power control
          - Compatible with Tripp Lite's WatchDog Service Monitoring and Control Software (part# WATCHDOGSW)
          - Fault tolerant electronic bypass maintains utility output during a variety of UPS fault conditions
          - Diagnostic LEDs
          - $250,000 Ultimate Lifetime Insurance (U.S., Canada, and Puerto Rico only)

          Specifications :

          General Information

          Manufacturer Tripp Lite by Eaton
          Manufacturer Part Number SU2200XLA
          Manufacturer Website Address https://tripplite.eaton.com/
          Brand Name Tripp Lite by Eaton
          Product Line SmartOnline
          Product Model SU2200XLa
          Product Name SmartOnline SU2200XLa 2200VA Tower UPS
          Product Type Double Conversion Online UPS
          UPC 037332126566
          Height10.3"
          Width9"
          Depth19.5"
          Weight (Approximate)52.70 lb

          Miscellaneous

          Package Contents
          • SmartOnline SU2200XLa 2200VA Tower UPS
          • SU2200XLa On-line Double-Conversion UPS System
          • PowerAlert Software and cabling
          • Instruction manual with warranty information
          • EPO (Emergency Power Off) cabling

          Warranty

          Limited Warranty2 Year
