Tripp Lite by Eaton

Tripp Lite Smartonline 208/120V Or 240/120V 16Kva 14.4Kw On-Line Double-Conversion Ups, N+1,

Tripp Lite Smartonline 208/120V Or 240/120V 16Kva 14.4Kw On-Line Double-Conversion Ups, N+1,

SKU:SU16KRT-1TF

Regular price $10,021.18
Regular price Sale price $10,021.18
Sale Sold out
Shipping calculated at checkout.
          View full details
          Description
          Specifications
          Reviews, Que. & Ans.

          Description :

          SmartOnline 208/120V or 240/120V 16kVA 14.4kW On-Line Double-Conversion UPS, N+1, Extended Run, SNMP, Webcard, 14U Rack/Tower, USB, DB9 Serial

          Tripp Lite SmartOnline 208/120V or 240/120V 16kVA 14.4kW On-Line Double-Conversion UPS, N+1, Extended Run, SNMP, Webcard, 14U Rack/Tower, USB, DB9 Serial. UPS topology: Double-conversion (Online), Output power capacity: 16 kVA, Output power: 14400 W. AC outlet types: C19 coupler, NEMA 5–15R, NEMA 5–20R, NEMA L6-30R, Power plug: Terminal, AC outlets quantity: 22 AC outlet(s). Typical backup time at full load: 5.5 min, Typical backup time at half load: 13.5 min. Form factor: Rackmount/Tower, Product colour: Black, Rack capacity: 14U. Package width: 1016 mm, Package depth: 1295.4 mm, Package height: 800.1 mm

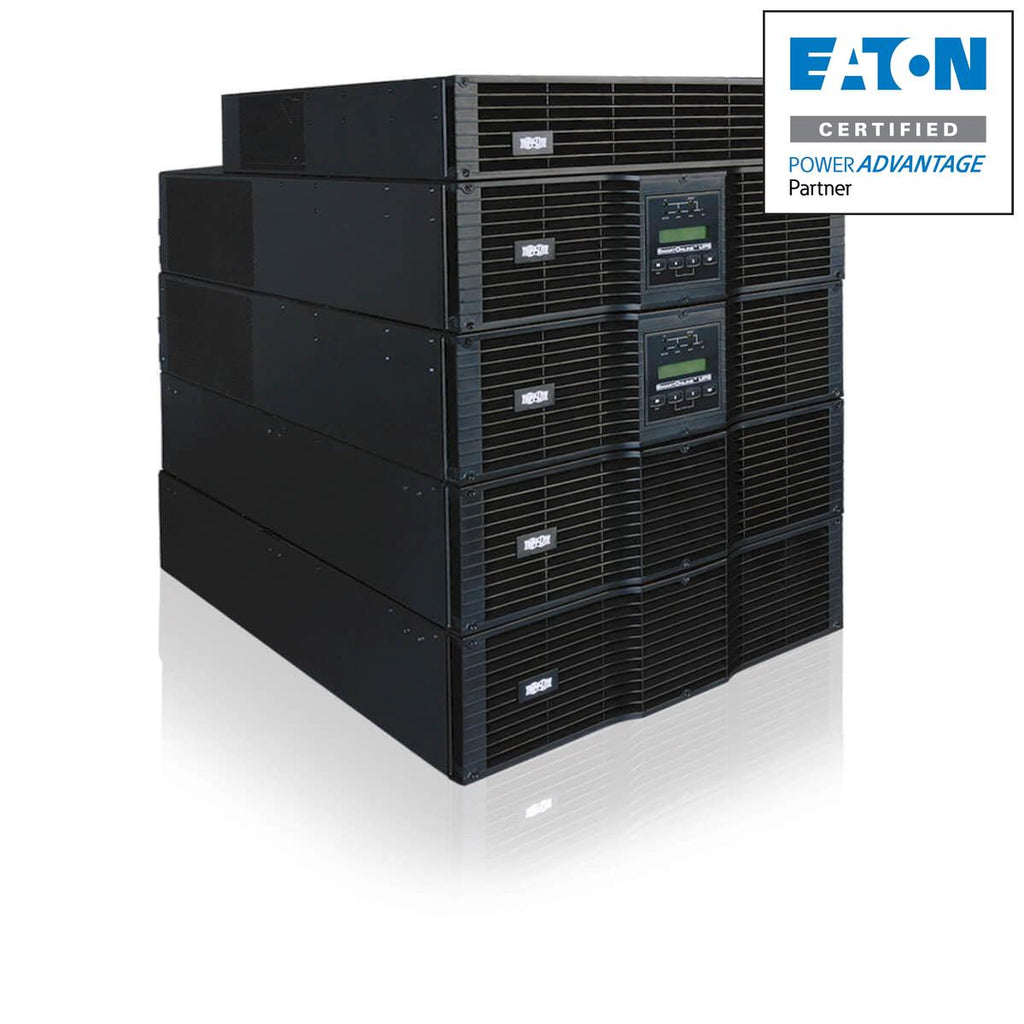

          Tripp Lite SU16KRT-1TF 16,000VA / 16kVA / 14,400 watt online, double-conversion UPS system offers complete power protection for critical server, network and telecommunications equipment in a 14U rack/tower configuration. This system delivers complete N+1 redundancy when used at loads up to 8kVA, and non-redundant operation at loads between 8 and 16kVA. Fault-tolerant auto-bypass prevents unexpected service interruptions during UPS overload or internal fault conditions. Included parallel PDU with manual bypass switching enables hot-swappable replacement of all major UPS system components in both N+1 and combined operating modes. Enhanced availability, fault tolerance and simple hot-swap replacement options make this UPS ideal for advanced networking applications in data centers, computer rooms, network closets and rugged industrial locations.
          - Tripp Lite SU16KRT 16kVA, 16,000VA / 14,400 watt on-line, double-conversion UPS system in 14U total rack/tower configuration
          - Unique configuration offers 16kVA non-redundant operation and automatic N+1 redundancy at load levels of 8kVA and under

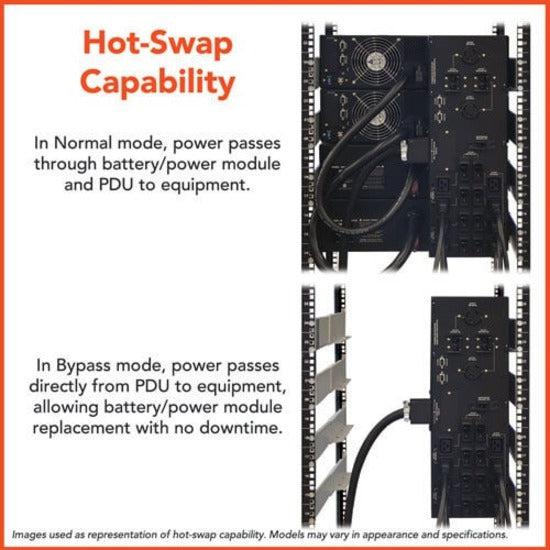

          - Included Parallel PDU with manual bypass switch enables hot-swap replacement of power modules at any supported load level

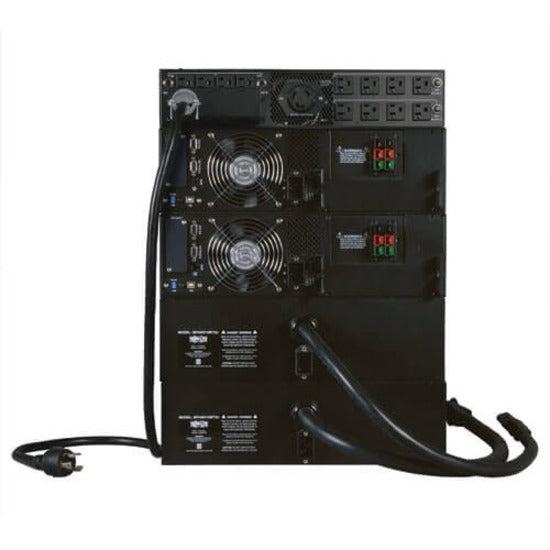

          - Hardwire input; 2 L6-30R (208/240v), 8 C19 (208/240v), 8 5-15/20R (120v) and 4 5-15R (120v) outlets
          - Maintains full-time sine wave output within 2% of selectable 200/208/220/230/240V & 120V nominal
          - Expandable runtime with optional external battery packs
          - Some external battery configurations require the use of Tripp Lite's External Battery Configuration Software (see manual)
          - Battery independent restart
          - Highly efficient economy mode option
          - Optional SNMPWEBCARD, RELAYIOCARD and RELAYIOMINI interface modules available (RELAYIOMINI requires removal of USB interface module)
          - Applications utilizing the optional network communications card require two SNMPWEBCARD accessories (install one per included power module)
          - HID-compliant USB interface
          - Includes Free PowerAlert monitoring software; PowerAlert LOCAL, PowerAlert NSA and PowerAlert NMS for monitoring up to 250 SNMP-enabled UPS, PDU and other networking devices
          - Optional 2POSTRMKITHD supports installation in 2 post 19 inch racks (6 required)
          - Optional 2-9USTAND supports upright tower placement (2 required)
          - Supports Emergency Power Off (EPO) via built-in interface
          - Front panel LEDs and LCD readout with scroll controls
          - LED / LCD display panel rotates for viewing in rackmount or tower configurations
          - External battery packs are field replaceable and hot swappable

          Specifications :

          General Information

          Manufacturer Tripp Lite by Eaton
          Manufacturer Part Number SU16KRT-1TF
          Manufacturer Website Address https://tripplite.eaton.com/
          Brand Name Tripp Lite by Eaton
          Product Line SmartOnline
          Product Series EZ
          Product Model SU16KRT-1TF
          Product Name SmartOnline EZ SU16KRT-1TF 16kVA Tower/Rack Mountable UPS
          Product Type Double Conversion Online UPS
          UPC 037332158253
          Height5.1"
          Width17.5"
          Depth26"
          Weight (Approximate)43 lb

          Miscellaneous

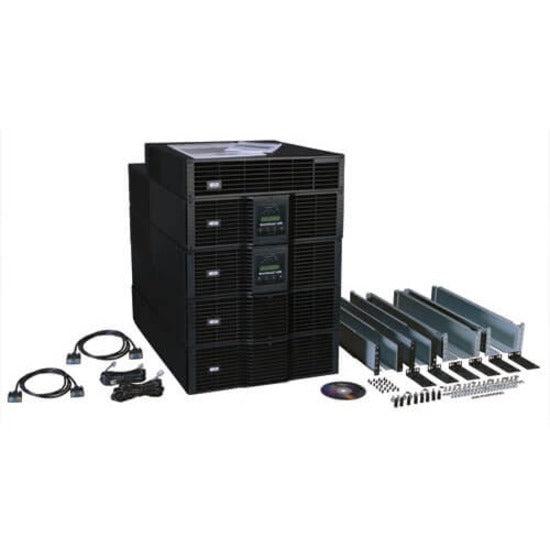

          Package Contents
          • SmartOnline EZ SU16KRT-1TF 16kVA Tower/Rack Mountable UPS
          • 2 x Power Modules
          • 2 x Battery Packs
          • 1 x Transformer

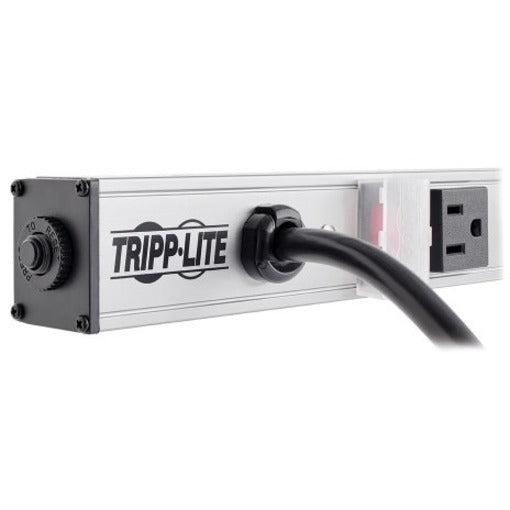

          • L6-30R / C19 Parallel PDU with Bypass Switch
          • 5 x Set of 4 post Rackmount Installation Rails
          • PowerAlert Software CD
          • USB Cable
          • Serial Cable
          • EPO Cable
          Environmentally FriendlyYes

          Warranty

          Limited Warranty2 Year
