Tripp Lite by Eaton

Tripp Lite Srw12Us33G Smartrack 12U Server-Depth Wall-Mount Small Rack Enclosure, Clear Acrylic Window, Hinged Back

Tripp Lite Srw12Us33G Smartrack 12U Server-Depth Wall-Mount Small Rack Enclosure, Clear Acrylic Window, Hinged Back

SKU:SRW12US33G

Regular price $636.98
Regular price Sale price $636.98
Sale Sold out
Shipping calculated at checkout.
          View full details
          Description
          Specifications
          Reviews, Que. & Ans.

          Description :

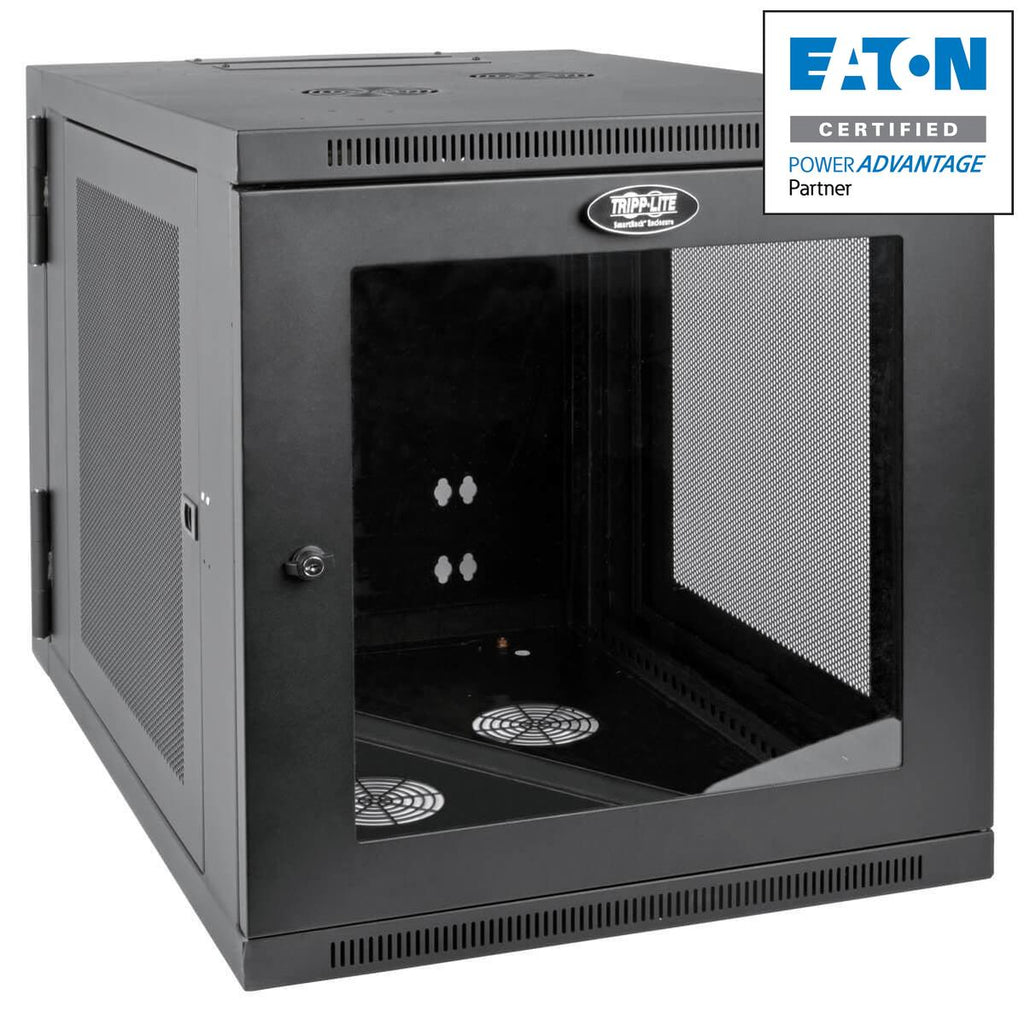

          SmartRack 12U Server-Depth Wall-Mount Small Rack Enclosure, Clear Acrylic Window, Hinged Back

          Tripp Lite SRW12US33G SmartRack 12U Server-Depth Wall-Mount Small Rack Enclosure, Clear Acrylic Window, Hinged Back. Type: Wall mounted rack, Rack capacity: 12U, Maximum weight capacity: 113.4 kg. Weight: 42.9 kg. Product colour: Black

          The SRW12US33G SmartRack 12U Server-Depth Wall-Mount Rack Enclosure Cabinet is ideal for storing 19-inch rack equipment up to 32.5 inches in depth in areas with limited floor space where you need equipment to be secure, organized and out of the way. Constructed from heavy-duty steel with a durable black powder-coated finish, the cabinet has a maximum load capacity of 250 lbs (113.4 kgs).

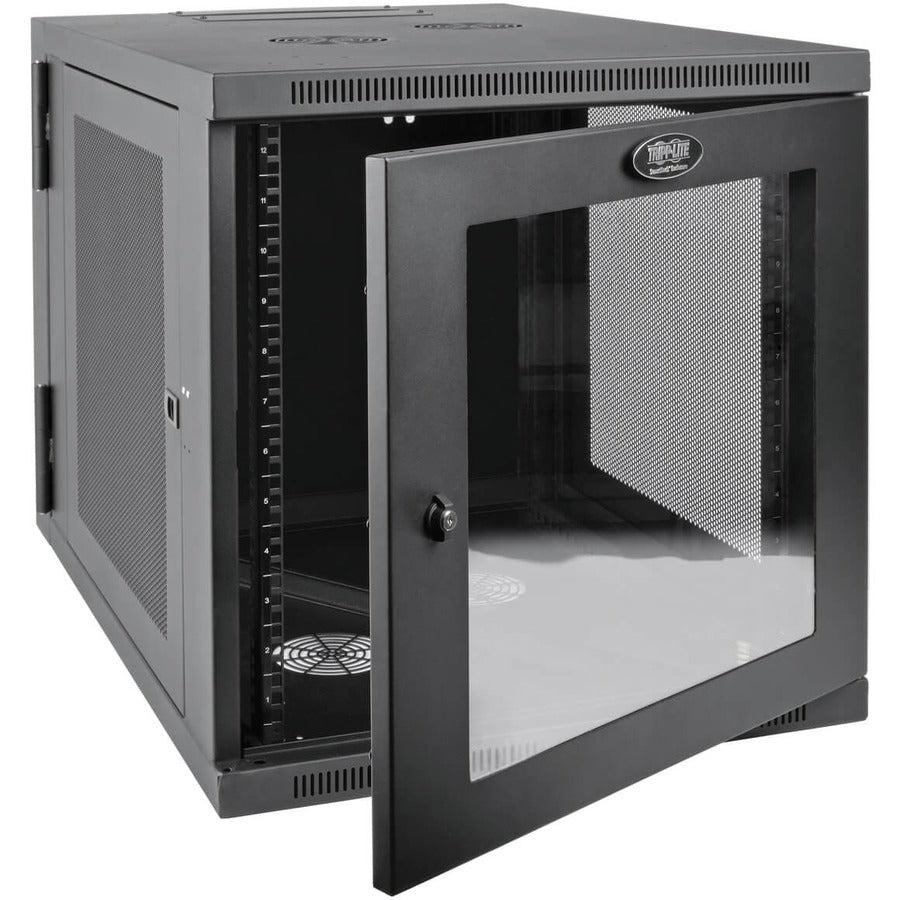

          The front door features a shatter-resistant clear acrylic window that lets you monitor equipment readouts without unlocking the enclosure. Not only does the window help prevent equipment tampering and reduce acoustic noise, but it also adds visual flair to your IT installation.

          The cabinet swings away from the wall on a sturdy hinge, allowing easy access to equipment and cabling during installation and maintenance. To ensure your valuable equipment stays secure, the doors and side panels lock. The top, bottom and removable side panels are vented, which allows air to flow freely through the rack to keep equipment cool. The reversible doors can open left or right by rotating the cabinet 180° before mounting. Convenient top and bottom ports allow easy cable routing through the cabinet.

          The SRW12US33G comes fully assembled and ready to mount to the wall. Square and 12-24 threaded mounting holes and numbered rack spaces make equipment installation easy. The vertical mounting rails adjust in 7/8-inch increments to accommodate equipment up to 32.5 inches, such as 1U servers, UPS systems, battery packs and switches.

          Saves Valuable Workspace
          Perfect for network closets, retail locations, classrooms and other areas with limited floor space where you need equipment to be secure, organized and out of the way
          Extra-deep capacity to house most 1U servers, UPS systems, battery packs and switches
          Maximum load capacity of 250 lbs (113.4 kgs)

          Hinged Cabinet for Convenient Access
          Swings away from the wall to allow easy access to equipment and cabling during installation and maintenance
          Rotate cabinet 180° before mounting to open reversible front door left or right

          Shatter-Resistant Clear Acrylic Front Window
          Lets you monitor equipment without unlocking the enclosure
          Prevents equipment tampering
          Reduces acoustic noise
          Provides extra visual flair

          Keeps Important Equipment Secure

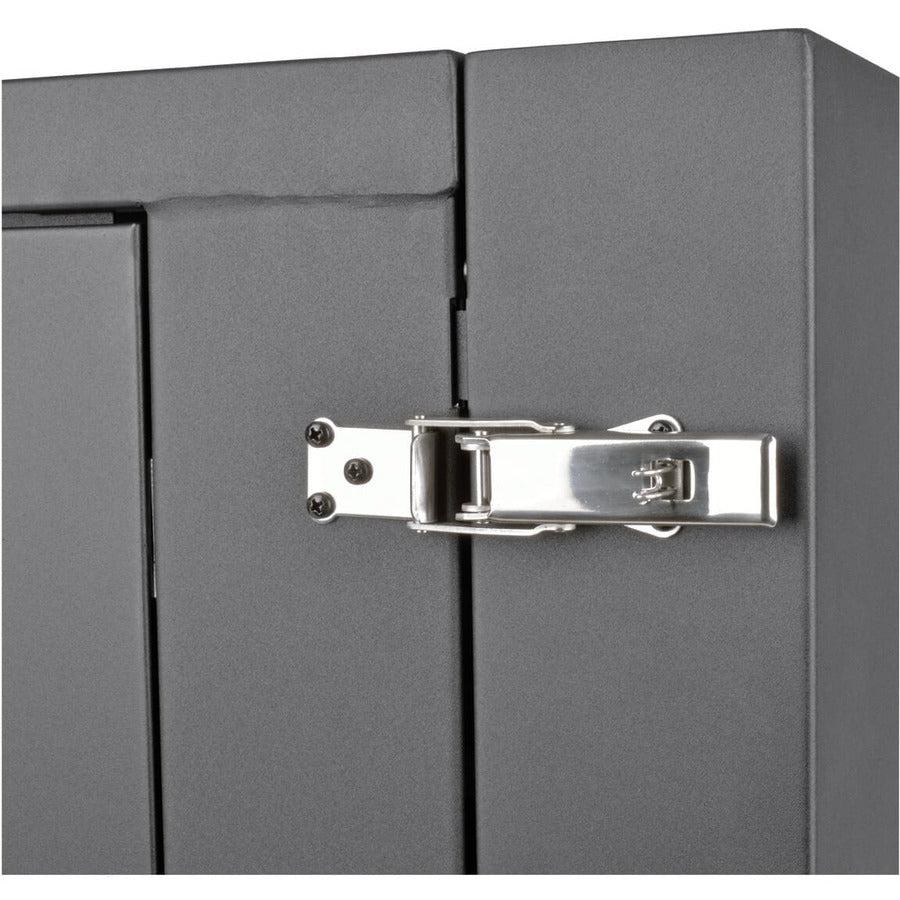

          Side panels and doors lock securely
          Vented panels allow generous airflow that keeps equipment cool
          Convenient ports with removable covers allow cable routing through top and bottom

          Easy Enclosure and Equipment Installation

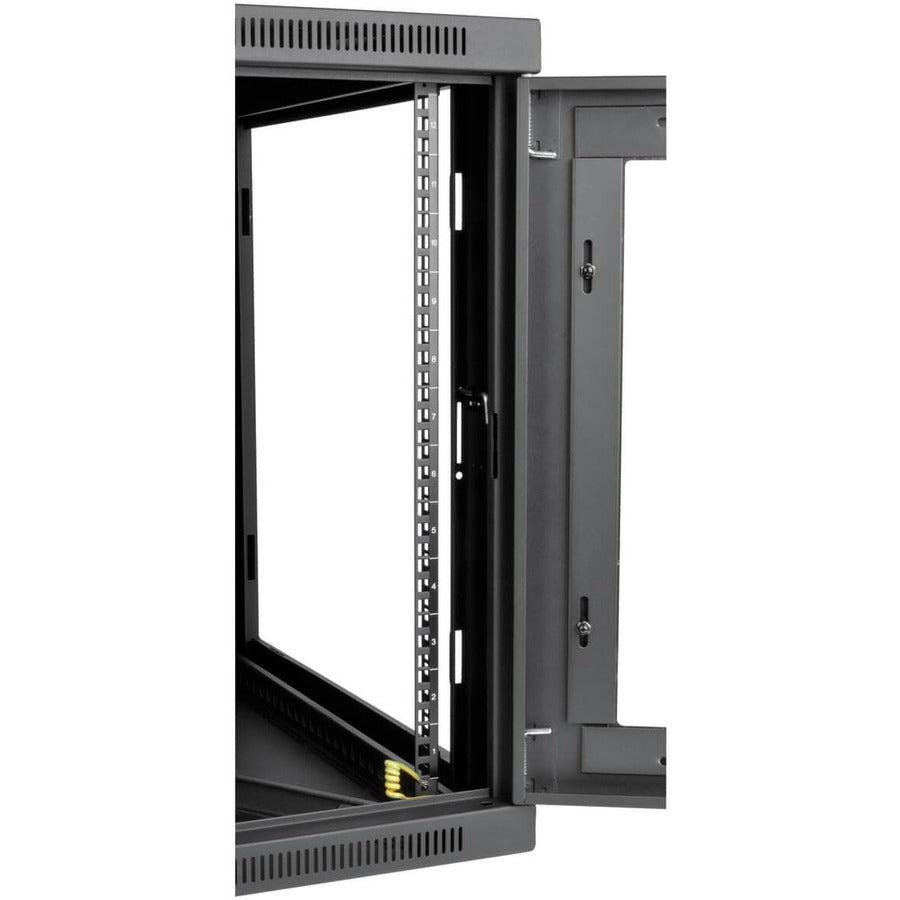

          Vertical mounting rails adjust in 7/8 in. increments to house equipment up to 32.5 in. deep
          Ships fully assembled for quick installation
          Mounts to wall or rolls on floor with Tripp Lite's optional SRCASTER caster kit

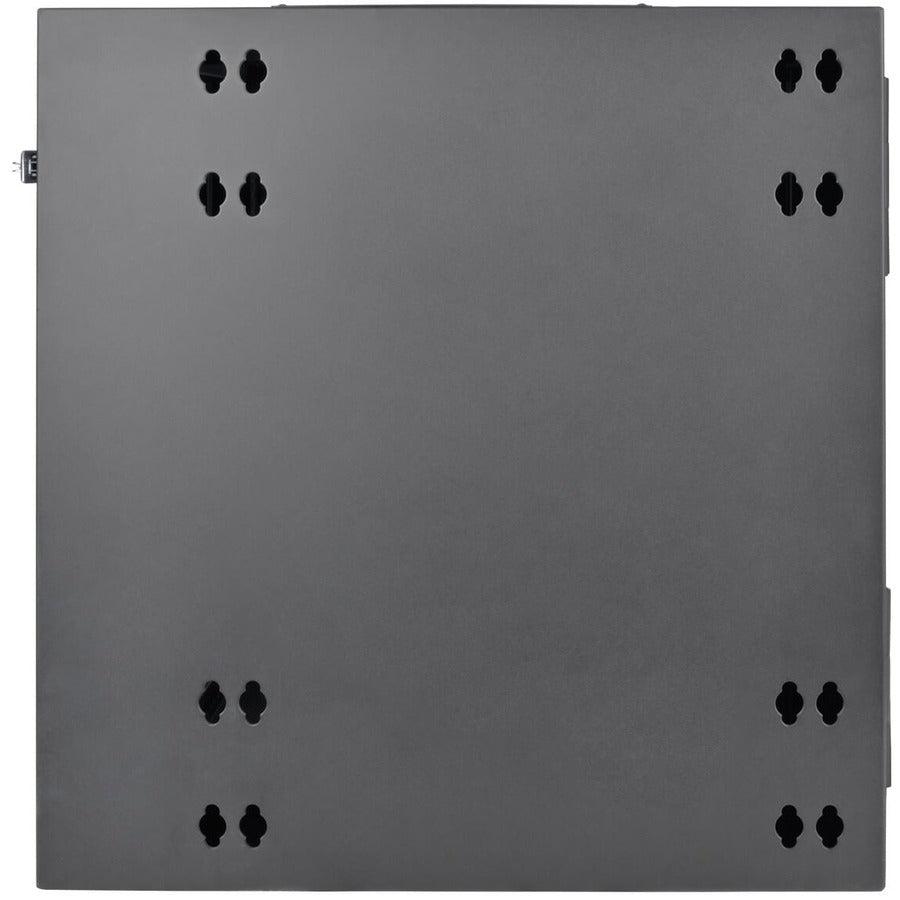

          Wall-mounting holes spaced 16 in. apart to accommodate standard wall stud placement
          Rails support square-hole or 12-24 threaded-hole mounting
          Rack spaces numbered for easy reference

          Meets Payment Card Industry Standards
          Provides physical equipment and media security required for PCI DSS (Payment Card Industry Data Security Standard) compliance

          Specifications :

          General Information

          Manufacturer Tripp Lite by Eaton
          Manufacturer Part Number SRW12US33G
          Manufacturer Website Address https://tripplite.eaton.com/
          Brand Name Tripp Lite by Eaton
          Product Line SmartRack
          Product Model SRW12US33G
          Product Name SRW12US33G SmartRack 12U Server-Depth Wall-Mount Rack Enclosure Cabinet
          Product Type Rack Cabinet
          UPC 037332187352

          Physical Characteristics

          Color FamilyOther
          Product ColorBlack Powder Coat
          Height25"
          Width23.6"
          Depth33.5"
          Weight (Approximate)94.50 lb

          Miscellaneous

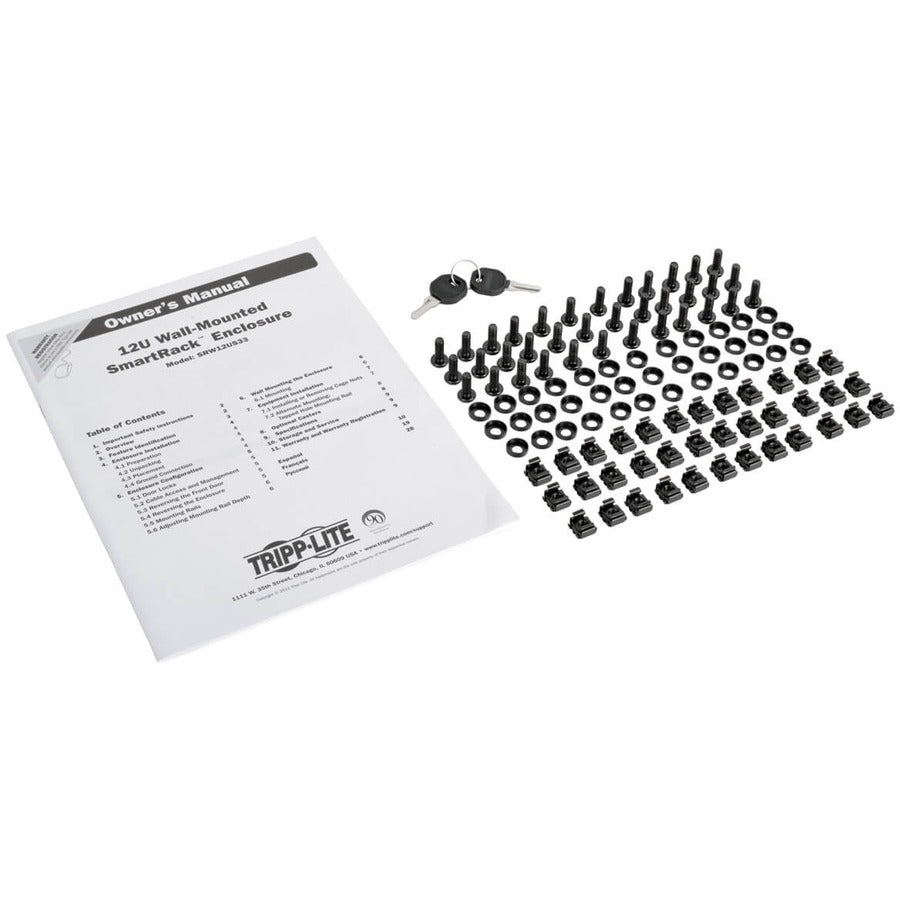

          Package Contents
          • SRW12US33G SmartRack 12U Server-Depth Wall-Mount Rack Enclosure Cabinet
          • 36 x M6 Screws
          • 36 x M6 Cage Nuts
          • 36 x M6 Washers
          • 36 x 12-24 Screws
          • 2 x Keys
          • Owner's Manual
          Environmentally FriendlyYes

          Warranty

          Limited Warranty5 Year
