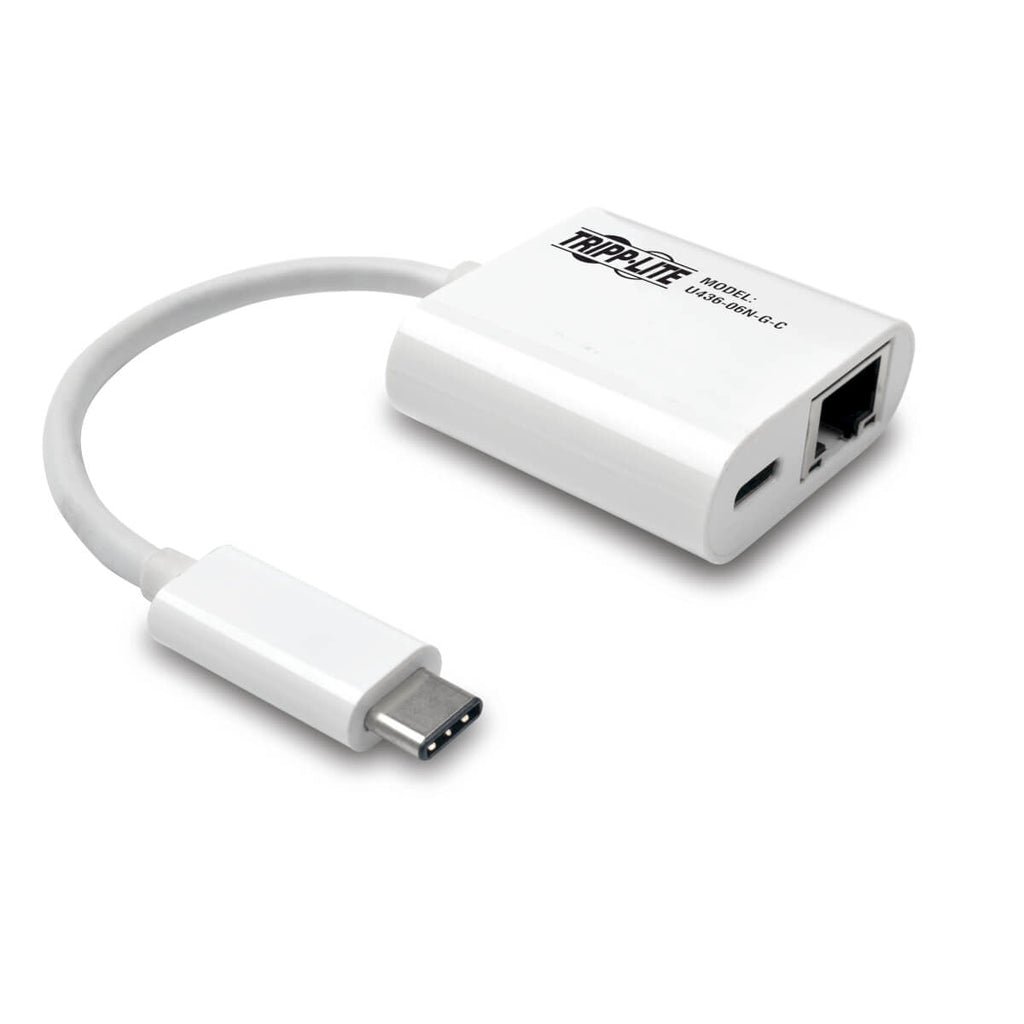

USB-C to Gigabit Network Adapter with USB-C PD Charging - Thunderbolt 3, White
Tripp Lite U436-06N-G-C USB-C to Gigabit Network Adapter with USB-C PD Charging - Thunderbolt 3, White. Host interface: USB Type-C, Output interface: RJ-45,USB 3.2 Gen 1 (3.1 Gen 1). Product colour: White, Country of origin: Vietnam, Certification: 802.3; 802.3u; USB 1.1; USB 2.0, 3.0, 3.1. Power consumption (typical): 60 W. Package width: 119.9 mm, Package depth: 97.5 mm, Package height: 20.1 mm. Products per master (outer) case: 10 pc(s), Master (outer) case width: 255 mm, Master (outer) case length: 119.9 mm
The U436-06N-G-C USB 3.1 Gen 1 USB-C to Gigabit Ethernet NIC Network Adapter allows USB Type-C or Thunderbolt™ 3 computers, laptops, tablets and other compatible devices without an NIC (Network Interface Controller) to connect to a network or the Internet using an RJ45 cable. It’s a more convenient and less expensive way to connect to a network than opening your device and installing an internal Ethernet card.

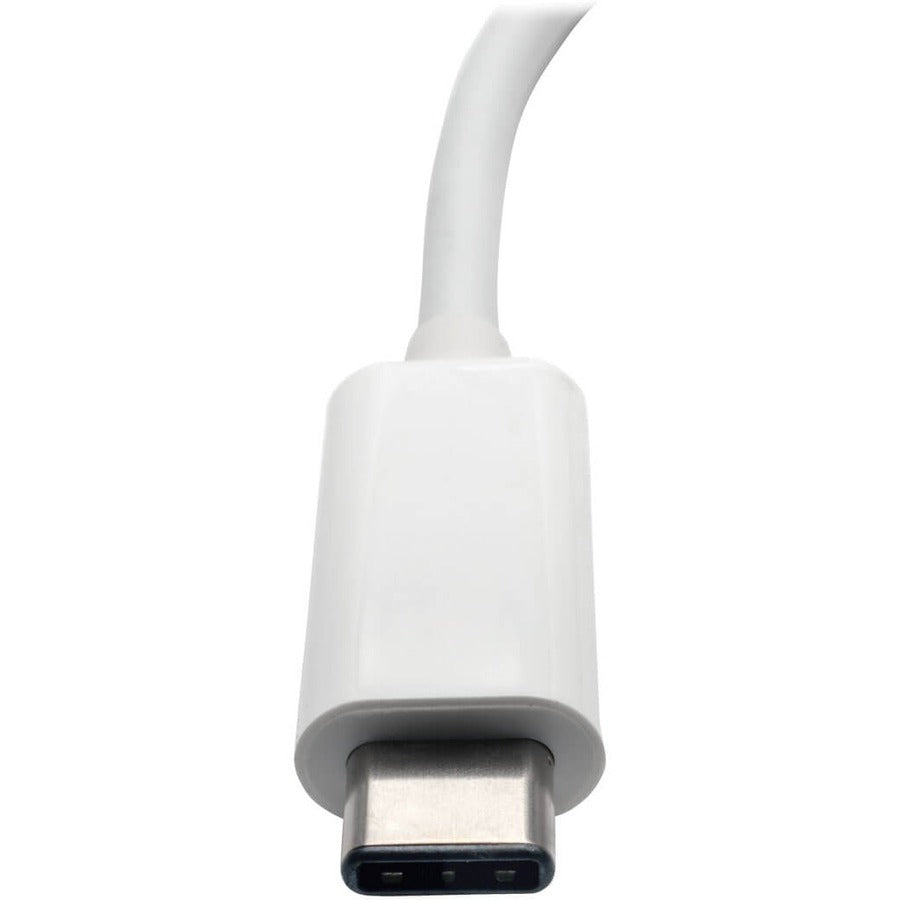

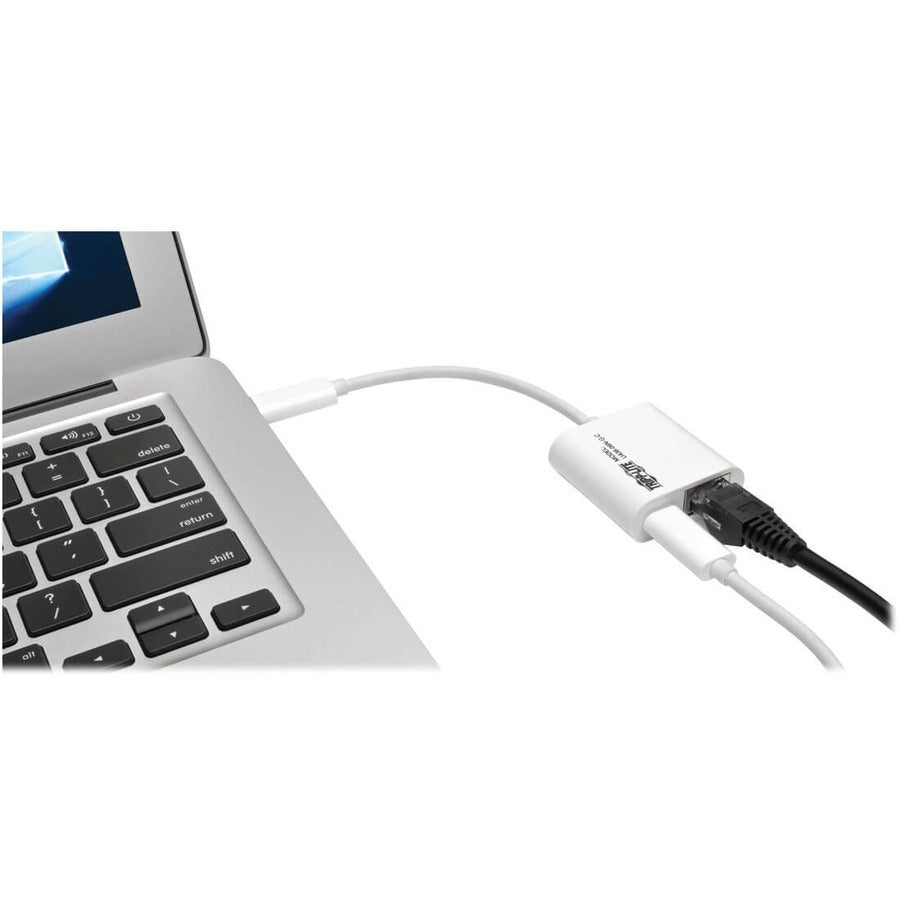

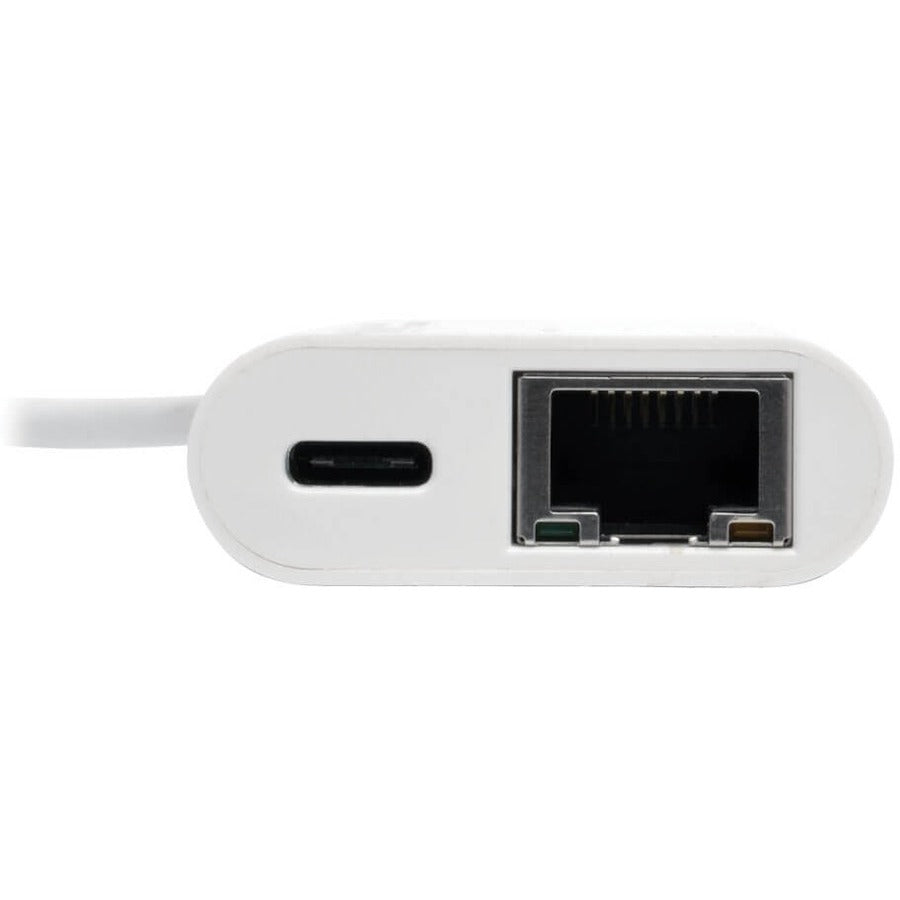

No software or drivers are needed. Connect the adapter’s USB-C male plug to the USB-C or Thunderbolt™ 3 port on your device. Then, connect the adapter’s RJ45 port to a network using a UTP cable, such as Tripp Lite’s N201-Series Cat6 cables. The U436-06N-G-C allows you to transfer data quickly and stream audio and video at true 10/100/1000 Mbps Ethernet speeds. Two status LEDs illuminate when the adapter is successfully connected to the network (link) and transferring data (activity).
The USB-C charging port supports power input up to 20V 3A (60W). It powers the device that the U436-06N-G-C is plugged into by connecting the charging port to a USB-C wall charger.
Compliant with IEEE 802.3, 802.3u, 802.3ab and 802.3az standards. Supports 10/100/1000 auto-sensing, twisted-pair crossover detection, auto-correction and Wake-on-LAN power management. Compatible with Windows, Mac and Chromium operating systems. Backward compatible with previous USB versions.
USB Type-C™ and USB-C™ are trademarks of USB Implementers Forum
Saves You Time and Money Connects USB-C or Thunderbolt™ 3 devices to a network or the Internet without buying and installing an internal Ethernet card Plug-and-play engineering—no software or drivers necessary Compact and lightweight for easy carrying in your laptop bag
Excellent Speed and Versatile Performance Sustains full 10/100/1000 Mbps network speeds for fast data transfer 2 LEDs indicate activity and link Complies with IEEE 802.3, 802.3u, 802.3ab and 802.3az (Energy Efficient Ethernet) standards Supports 10/100/1000 auto-sensing, twisted-pair crossover detection, auto-correction and Wake-on-LAN Compatible with Windows, Mac and Chromium Backward compatible with previous USB versions
USB-C Port for Charging Portable Devices Supports power input up to 20V 3A (60W) Connects to USB-C wall charger to power connected device
