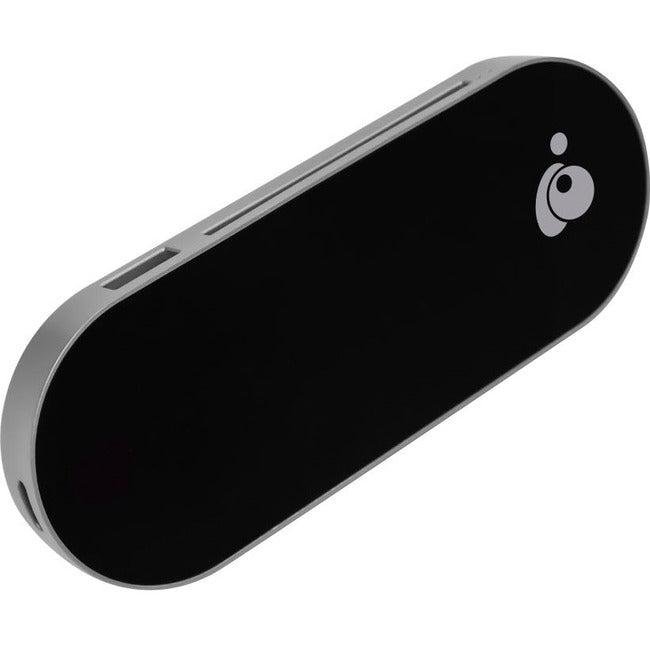

IOGEAR USB-C CAC Reader Plus (TAA Compliant)
USB-C CAC Reader Plus for Microsoft® Surface
The IOGEAR USB-C CAC Reader Plus is an easy-to-install USB™-C device designed for all Microsoft Surface devices, but compatible with any USB-C or Thunderbolt™ 3 laptop, smartphone, or tablet.
Universal CAC Compatibility
Utilizing the latest common access card encryptions (CAC) and compatible with most CAC middleware software, the USB-C CAC Reader Plus works with all CACs issued by any organization from the U.S. Department of Defense (DOD) to military personnel, federal and state employees, government contractors as well as corporate, banking and healthcare industries.
Compatible With Any USB-C or Thunderbolt 3 Laptop or Device

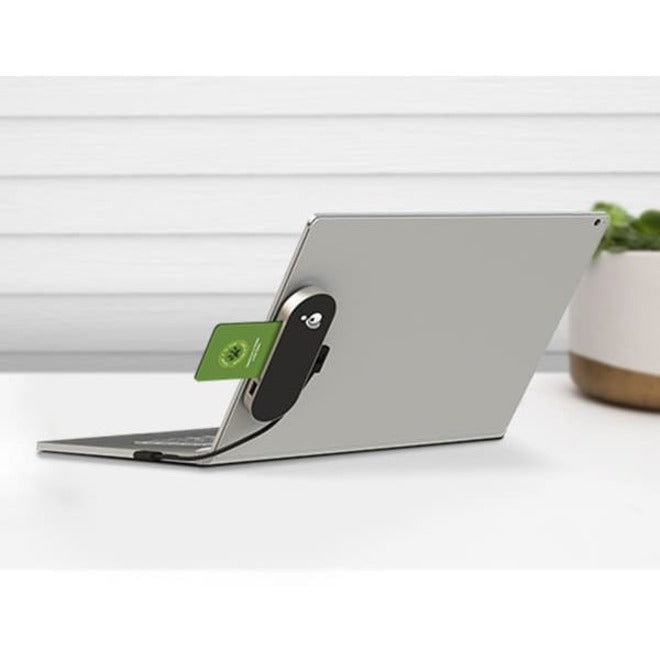

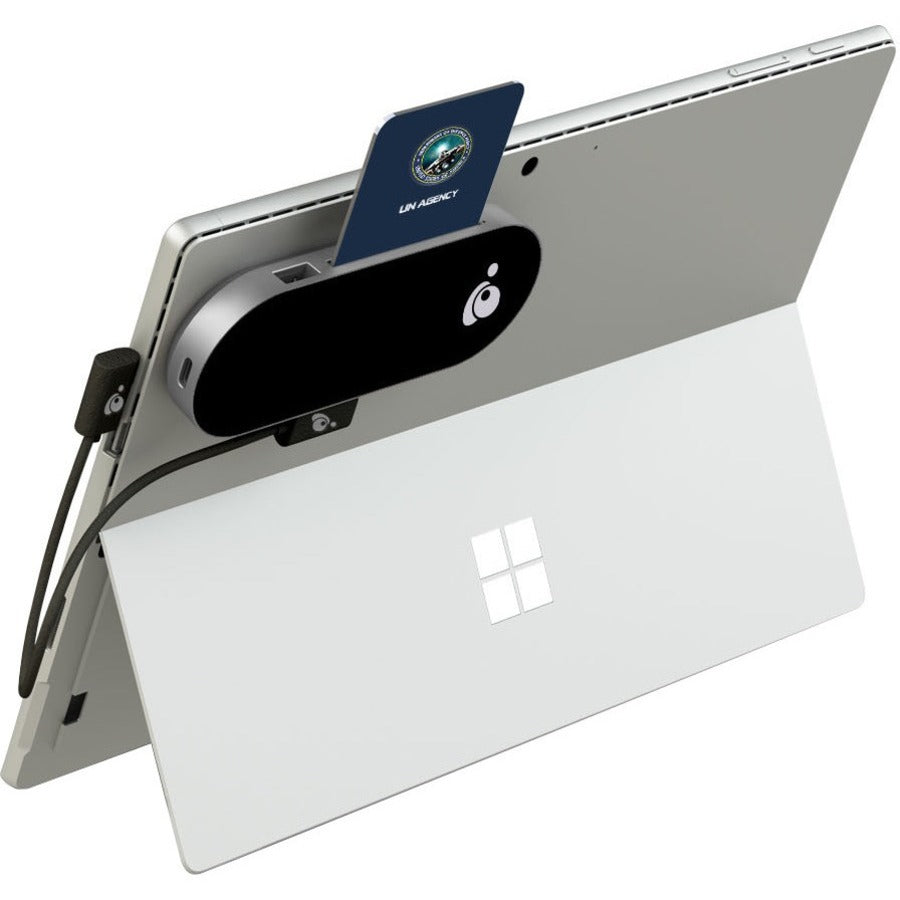

Although designed to fit on the back of most Microsoft Surface devices, the USB-C CAC Reader Plus works with any USB-C or Thunderbolt 3 desktop, laptop, smartphone or tablet.
- TAA Compliant USB-C CAC Reader with PD 3.0 and USB 3.2 Gen1 Hub
- Quick attach and release mounting system
- Compatible with Microsoft USB-CCID driver
- Ideal for government, military, healthcare or banking
- Portable design with power and scan LED indicators
- 688Kbps read speed with multi-protocol support
- ISO7816 implementation-Class A, B and C (5V,3V,1.8V) card
- EMV2000 Level 1 approved and supports 3V & 5V cards
- EMVCo 4.3 Level 1 Specification certified
- PBOC3.0 Level 1 Specification certified
- Support PC Smart Card industry standard-PC/SC 2.0
- Support ISO7816 T0, T1 protocol
- Support ISO7816 Class A, B, C (5/3/1.8V) cards
- Support I2C memory card, SLE4418, SLE4428, SLE4432, SLE4442, SLE4436,SLE5536, SLE6636, AT88SC1608, AT45D041 card and AT45DB041 card via external EEPROM
- Support customized USB VID/PID, manufacture/product strings and serial number by external EEPROM via USB interface
- Support remote wake up through inserting card/removing card
- Support USB selective suspend
- Support Power Saving Mode (Using one pin to select between Normal/PWR Saving Mode)
- Support card power over current protection mechanism
- Supports PIV cards
- Support single slot
- TAA compliant
More from the Manufacturer
- TAA Compliant USB-C CAC Reader with PD 3.0 and USB 3.2 Gen1 Hub
- Quick attach and release mounting system
- Compatible with Microsoft USB-CCID driver
- Ideal for government, military, healthcare or banking
- Portable design with power and scan LED indicators
Product Type: Smart Card Reader
Taa Compliant: Yes
Brand Name: IOGEAR
Manufacturer: IOGEAR, Inc
Product Name: USB-C CAC Reader Plus (TAA Compliant)
Manufacturer Part Number: GSRU205-MS
Manufacturer Website Address: http://www.iogear.com
Packaged Quantity: 1
Package Contents:
- USB-C CAC Reader Plus (TAA Compliant)
- 1 x USB-C to C Cable
- 1 x Quick Start Guide
- 1 x Warranty
Weight (Approximate): 2.40 oz
