Usb Displayport Hdbaset 20 Kvm,Extender 4K At 330Ft

Description :

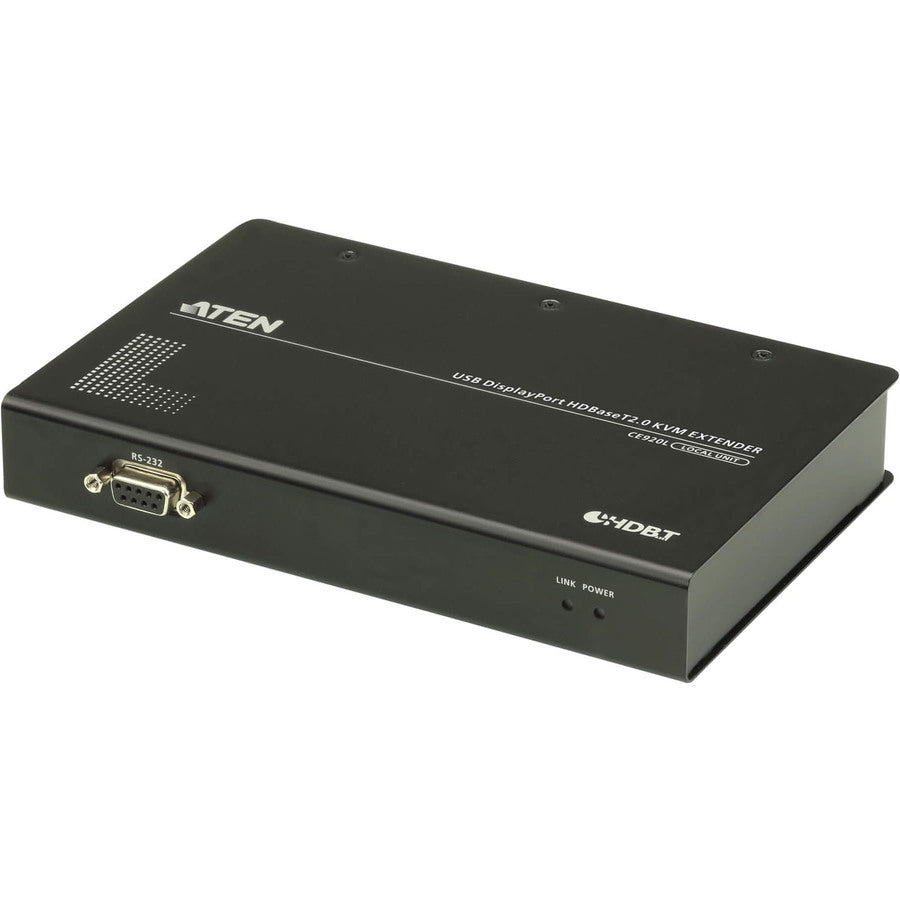

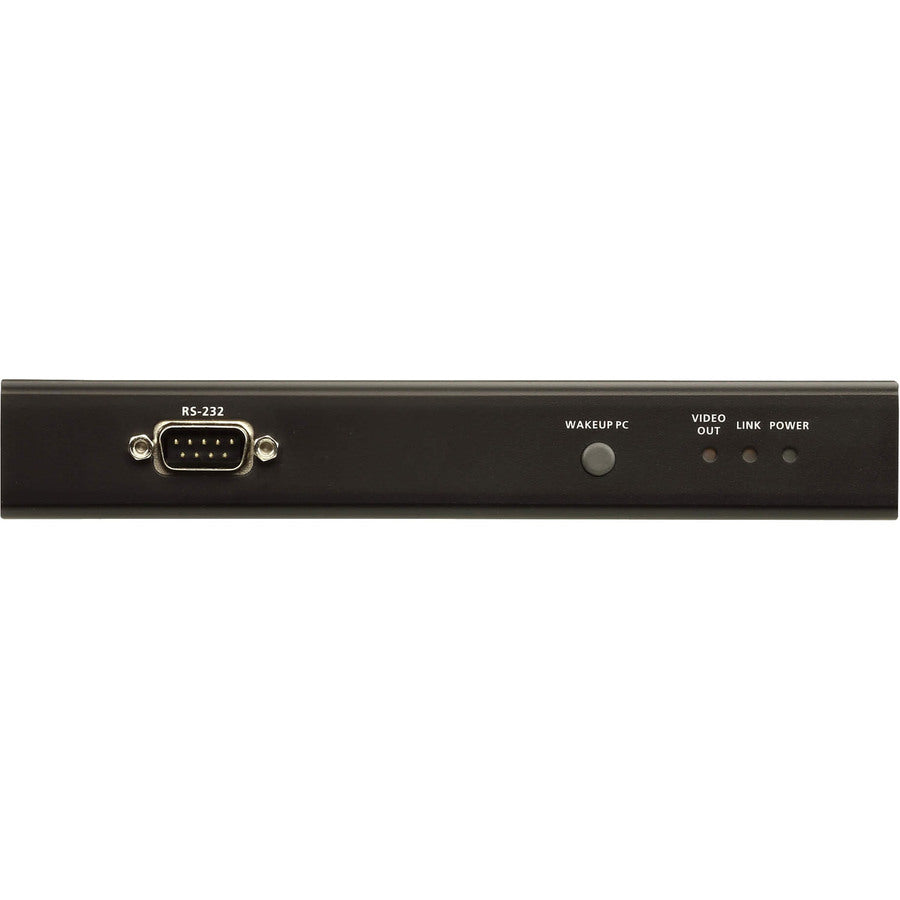

VanCryst USB DisplayPort HDBaseT 2.0 KVM Extender (4K@100 m)-TAA Compliant

The ATEN CE920 USB DisplayPort HDBaseT™ 2.0 KVM Extender integrates the latest HDBaseT™ 2.0 technologies to deliver 4K video, stereo audio, USB, Ethernet, and RS-232 signals up to 100 meters using a single Cat6 / 2L-2910 Cat 6 cable. The HDBaseT™ 2.0 guarantees the most reliable transmission on the market as well as enables the long-reach capability that extends full HD 1080P signals up to 150 meters. With an easy cable installation supporting various signals, the CE920 is ideal for applications where convenient remote access is required - such as transportation control centers, medical facilities, industrial warehouses, and extended workstations.

• Extends video, audio, USB, RS-232, and Ethernet signals via a single Cat6 / 6a / 2L-2910 Cat 6 cable


• Enhanced bit error detection and correction to resist signal interference during high-quality video transmissions


• Status detection and LED indication for HDBaseT™ signal transmission on remote unit


• EDID Buffer for smooth power-up and the highest quality display


• HDBaseT™ Standard mode up to 4K @ 100m (Cat 6 / 6a / 2L-2910)


• HDBaseT™ Long-Reach mode up to 1080P @ 150m


• Long Reach mode switch - switches between HDBaseT™ Standard and Long Reach modes in a snap


• USB 2.0 full speed ports - ensures fast transmission speeds for peripherals


• HDCP Compatible


• Supports individual 2-channel stereo audio for high-quality audio applications

Product Type: KVM Console/Extender
Environmentally Friendly: Yes
Environmental Certification: WEEE
Transmitter Height: 1.13"
Transmitter Width: 4.80"
Transmitter Depth: 7.17"
Receiver Height: 1.13"
Receiver Width: 4.80"
Receiver Depth: 7.17"
Transmitter Weight (Approximate): 1.39 lb
Receiver Weight (Approximate): 1.41 lb
Brand Name: VanCryst
Form Factor: Rack-mountable
Manufacturer: ATEN Technology Inc
Product Model: CE920
Product Name: USB DisplayPort HDBaseT 2.0 KVM Extender (4K@100 m)
Manufacturer Part Number: CE920
Manufacturer Website Address: http://www.aten.com/us/en/
Package Contents:

• 1 x CE920L USB DisplayPort HDBaseT 2.0 KVM Extender (Local Unit)
• 1 x CE920R USB DisplayPort HDBaseT 2.0 KVM Extender (Remote Unit)
• 1 x Microphone Cable
• 1 x Speaker Cable
• 1 x USB Type-A to Type-B Cable
• 1 x DisplayPort Cable
• 2 x Mounting Kits
• 2 x Power Adapters
• 1 x User Instructions
