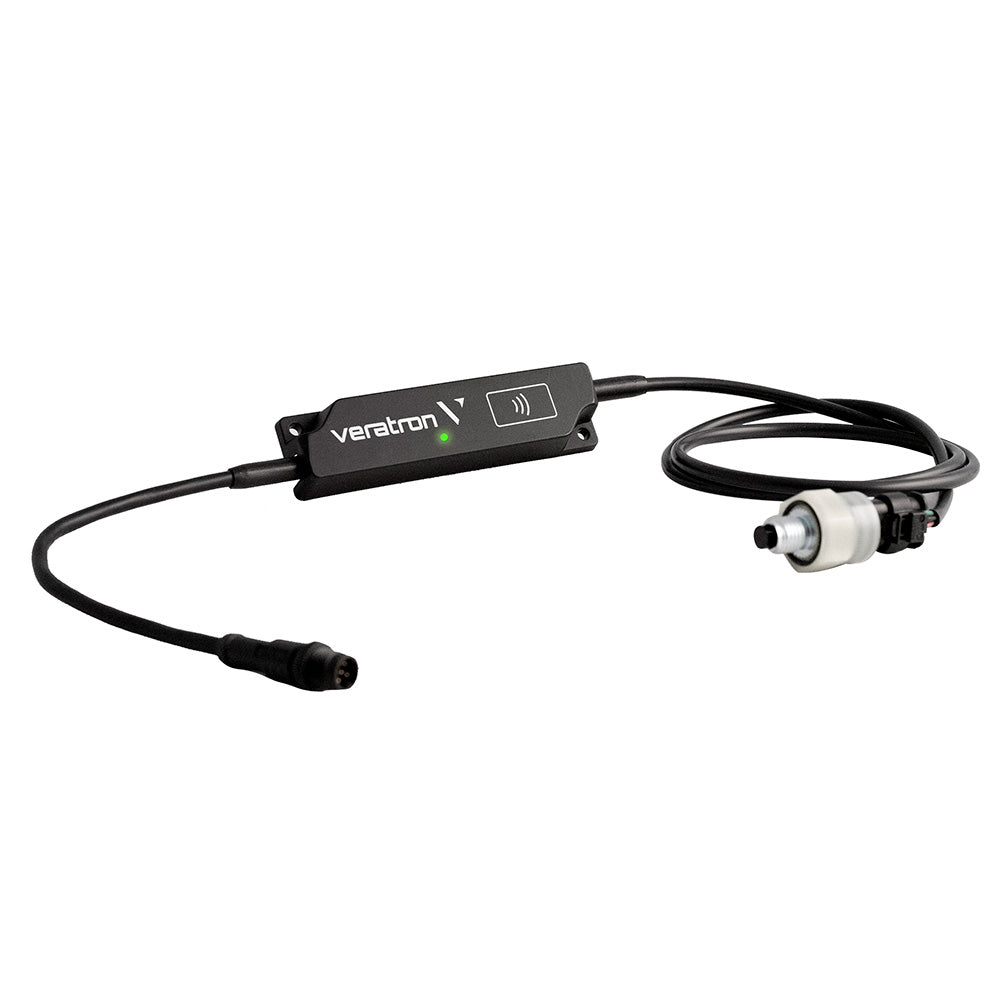

LinkUp Intelligent Temperature & Pressure
This Sensor measures simultaneously the engine oil's temperature and pressure while providing the data to the LinkUp, which translates it to the NMEA 2000® standard.
Features:
- Interface to the new electronic 2-in-1 sensor
- Oil Temperature and Pressure in a single sensor
- Rugged and reliable design derived from the automotive field
- ASIC-controlled sensor
- PWM (Pulse Width Modulated) output to transmit both pressure and temperature
Technical Specifications:
- M12 mounting thread
- IP 69/K protection class
- 5V power feed provided by the LinkUp
- Temperature accuracy ± 1°K in the 135 °C – 160 °C range
- Pressure accuracy ± 0.2 bar (range 0.5 –3 bar), ± 0.1 bar below and ± 0.3 bar above
- Temperature range: -40 °C + 160 °C
- Pressure range: 0.5 to 10.5 bar
- 1M cable length
This product may not be returned to the original point of purchase. Please contact the manufacturer directly with any issues or concerns. Manufacturer Part Number: B00070501
