Description
HDMI 1.3 with HDCP 1.2, 10.2 Gbps, 300 g, White

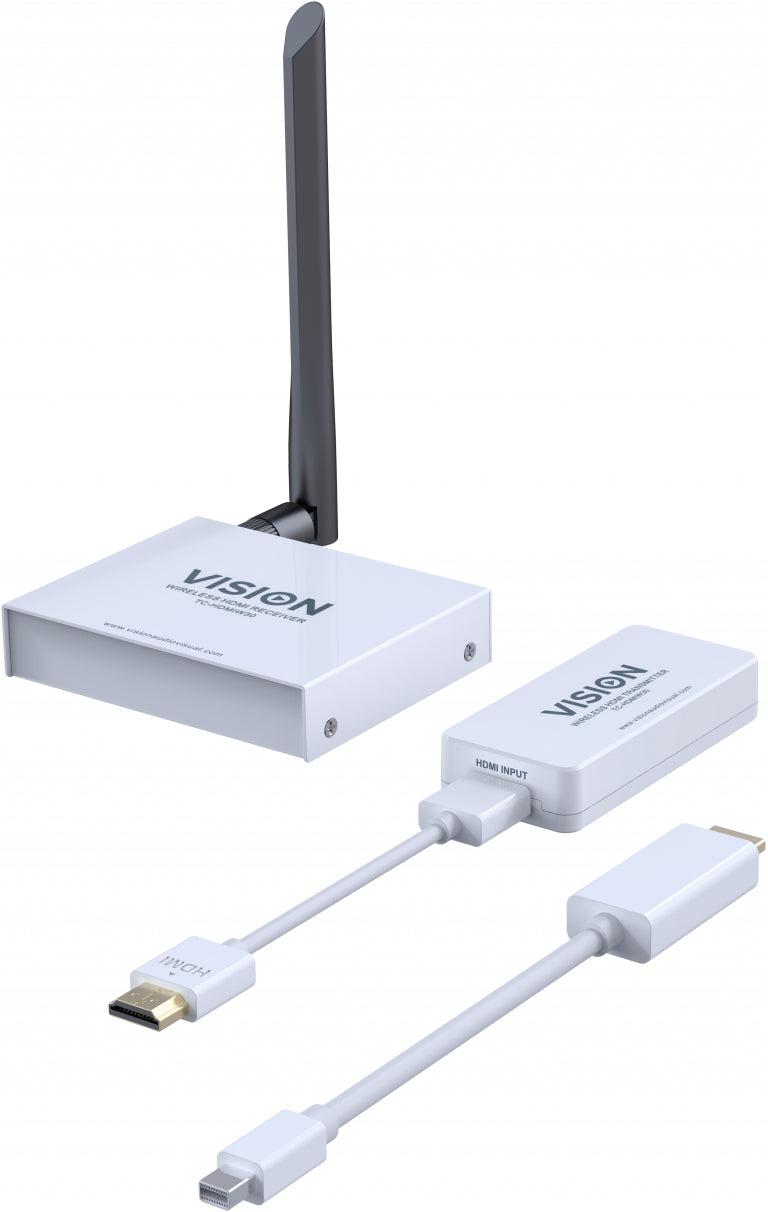

Vision TC-HDMIW30. Type: AV transmitter & receiver, Maximum resolution: 1920 x 1080 pixels, Maximum transfer distance: 30 m. Connectivity technology: Wireless. AC input voltage: 100 - 240 V, AC input frequency: 50 - 60 Hz, Operating voltage: 5 V. Receiver dimensions (W x D x H): 79 x 97 x 21 mm, Receiver weight: 220 g, Transmitter dimensions (WxDxH): 40 x 87 x 17 mm. Package dimensions (WxDxH): 150 x 200 x 80 mm, Package length: 20 cm, Package weight: 650 g
Details Stream the content from your laptop screen straight to a flat-panel or projector with ease. Just plug the transmitter dongle in to your laptop HDMI or Mini-DisplayPort; it will automatically transmit to the receiver positioned at the display. No software or drivers necessary.
Presentation Applications While this product can be used with any HDMI device such as Blu-Ray it is optimised for teaching and meeting room environments. Its practical ease of use will eliminate technical problems and let presenters get on with presenting.
30 Metre Range An internal antenna in the transmitter gives a range of up to 30 metres for HD content – or up to 50 metres in an open space. Too close or too far away and the image will degrade. It uses the same frequencies as wifi so it will work through dry-walls but performance drops off with distance and physical obstacles, so we recommend using in the same room.
No Cable Clutter Switching to wireless allows you to eliminate the ugly tangle of cables. Keep your decor clean and uncluttered.
5GHz It operates in the 5GHz frequency band and uses Dynamic Frequency Selection (DFS) to select a clear channel for transmission. The signal is made secure with 128 bit AES encryption.
Tail Design The two input cables are short “tails” to keep the transmitter dongle from blocking other ports on your PC.
HDMI It is HDMI 1.3 with HDCP 1.2 compliance. Features not supported are ARC (Audio Return Channel), and Ethernet.
Low Latency The TC-HDMIW30 has a latency of less than 200 millisecond – 1/5 of a second. HD Video is smooth and glitch-free.
IR Passthrough Includes IR blaster and receiver cables to allow control of the source device from the remote display. Supports 20-60KHz frequencies.
Backup Power The transmitter requires 500-1000 mA to function. HDMI ports are required to output 55mA but most laptops output a lot more so in most cases it will work. If it doesn’t use the included USB cable to get additional power from a USB port.
