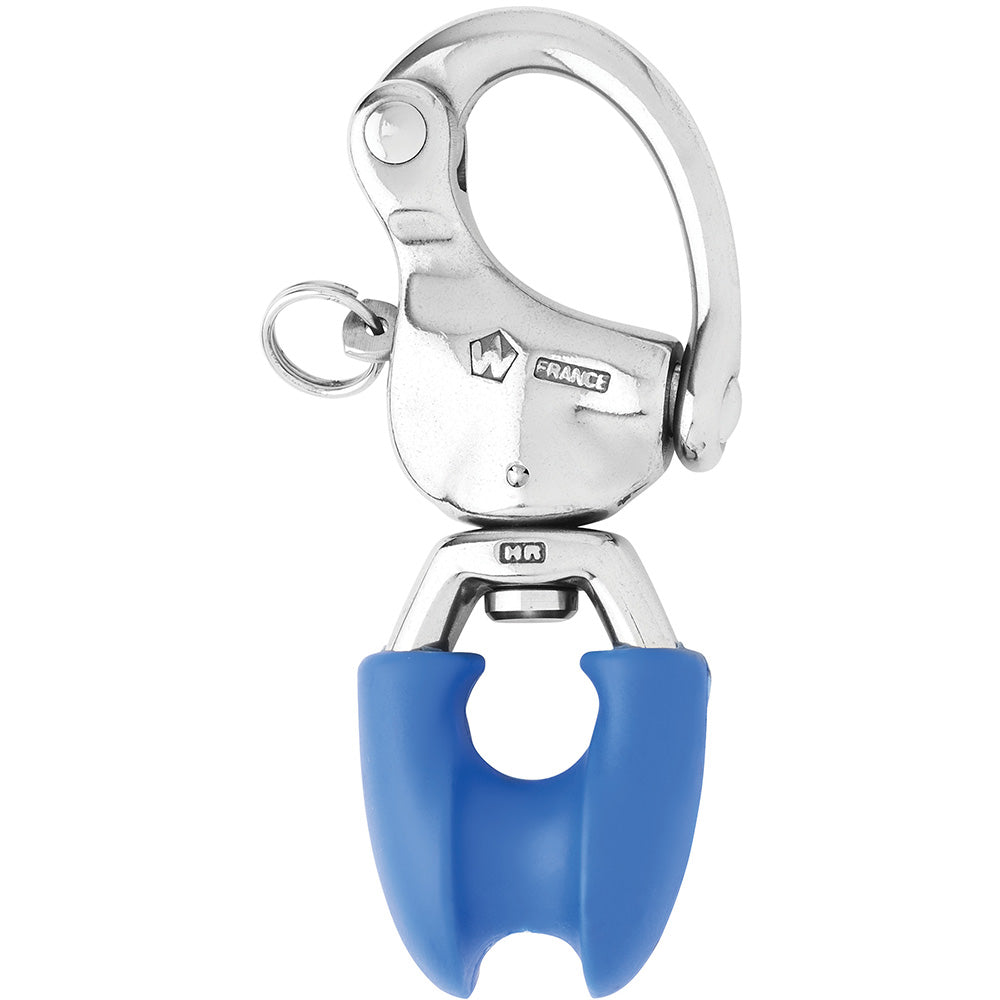

HR Snap Shackle with Thimble Eye - Length 3-3/4"
Features:
- HR Forged snap shackle (Grade 17.4 PH stainless steel) with thimble eye
- Allows to splice the halyard directly onto the snap shackle (without using a thimble)
- Avoids the wear of the ropes
- Free rotation of the snap shackle thanks to the swivel eye
- The plunger pin is set captive into the hook and cannot become detached
- Excellent working and breaking loads > Easy to open by pulling the plunger pin (possibility to attach a lanyard)
Applications:
- Snap shackle applications
- Allows to splice the halyard
- Applications requiring a free rotation of the snap shackle (for a better sail orientation)
Specifications:
- Materials HR 17.4 PH stainless steel grade
- Length (inch) 3 3/4"
- Working load (lb) 2110
- Breaking load (lb) 4400
- Weight (lb) 0.168

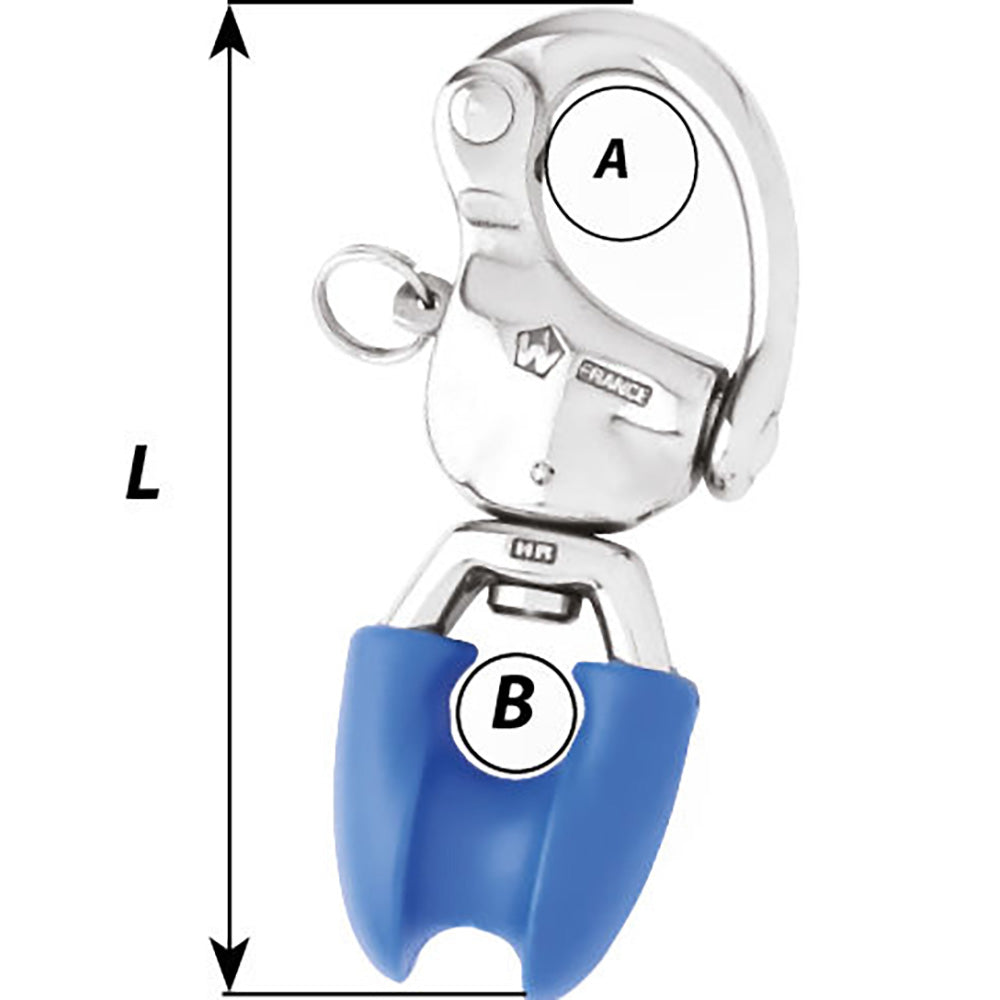

- A (inch) 5/8"
- B (inch) 15/32"
Manufacturer Part Number: 02493
