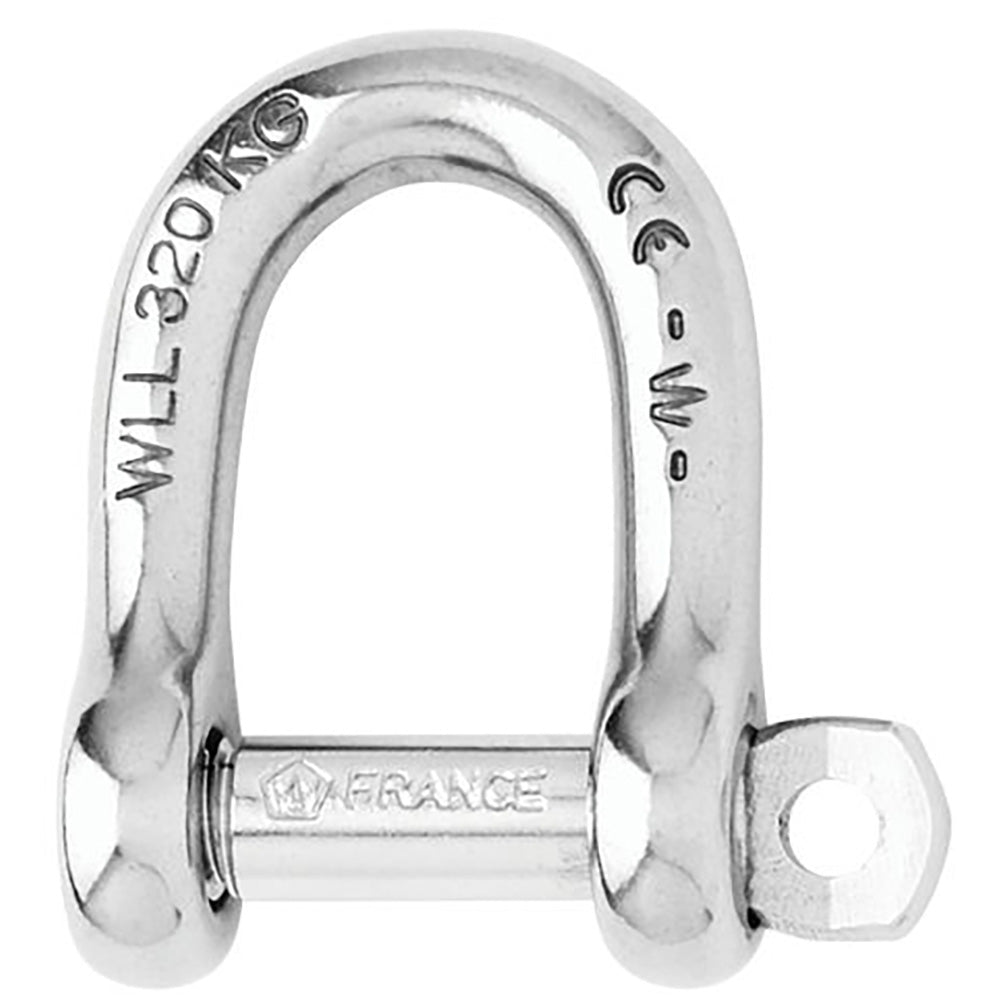

Self-Locking D Shackle - 12mm Diameter - 15/32"
Features:
- Self-locking D shackle forged in grade 316L stainless steel
- The pin is locked into one of the indentations
- No risks of loosening due to vibrations
- Outstanding working and breaking loads
- WLL: only for industrial applications (lifting i.e…)
- CE marking
Applications:
- Standard applications of the shackle
- Attachment applications: blocks, head
Specifications:
- Materials: 316 stainless steel grade
- Working load: (lb) 4580 / (kg) 2080
- WLL: (lb) 2640 / 1200 (kg)
- Breaking load: (lb) 13220 / (kg) 6000
- Weight: (lb) 0.425 / (g) 193
Dimensions:
- A: (inch) 1-21/32" / (mm) 42
- B: (inch) 1-1/16" / (mm) 27
- C: (inch) 15/32" / (mm) 12
- D: (inch) 15/16" / (mm) 24
- D diameter: (inch) 15/32" / (mm) 12
- E: (inch) 7/16" / (mm) 11
- F: (inch) 2-7/8" / (mm) 73
- G: (inch) 2-7/16" / (mm) 62
Caption:
- Working Load (WL): For nautical applications
- Working Load Limit (WLL): For industrial applications only. The safety factor is 5 times the breaking load. WLL = Breaking load / 5
*Sold as an Individual
Manufacturer Part Number: 01206
