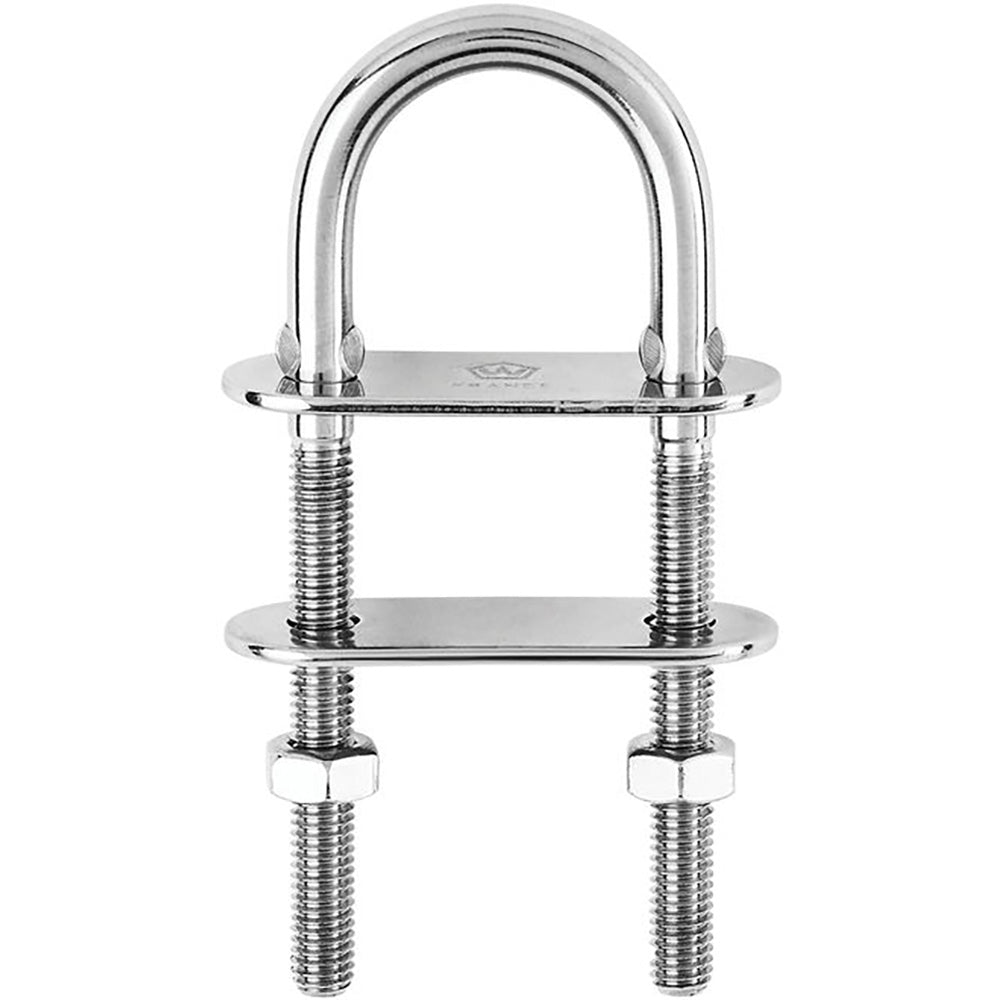

U-Bolt Pad Eye - 12mm Diameter - 15/32" - 130mm Length - 5-1/8"
Features:
- Entirely drop forged product with high-quality stainless steel
- Outstanding working and breaking loads
- For any fastening applications (shrouds, lifelines, blocks...)
- Delivered with bolts and counter-plate
- Max tightening torque: 60 Nm
Applications:
- Various fastening applications: shrouds, lifelines, blocks…
Specifications:
- Materials: 316L stainless steel grade
- Working load: (lb) 14100 / (kg) 6400
- Breaking load: (lb) 22040 / (kg) 10000
- Weight: (lb) 0.769 / (g) 349
Dimensions:
- A: (inch) 1 47/64" / (mm) 44
- B: (inch) 1 11/32" / (mm) 34
- C: (inch) 2 3/4" / (mm) 70
- D diameter: (inch) 15/32" / (mm) 12
- Length: (inch) 5 1/8" / (mm) 130
Caption:
- Working Load (WL): For nautical applications
- Working Load Limit (WLL): For industrial applications only. The safety factor is 5 times the breaking load. WLL = Breaking load / 5
*Sold as an Individual
Manufacturer Part Number: 06526
