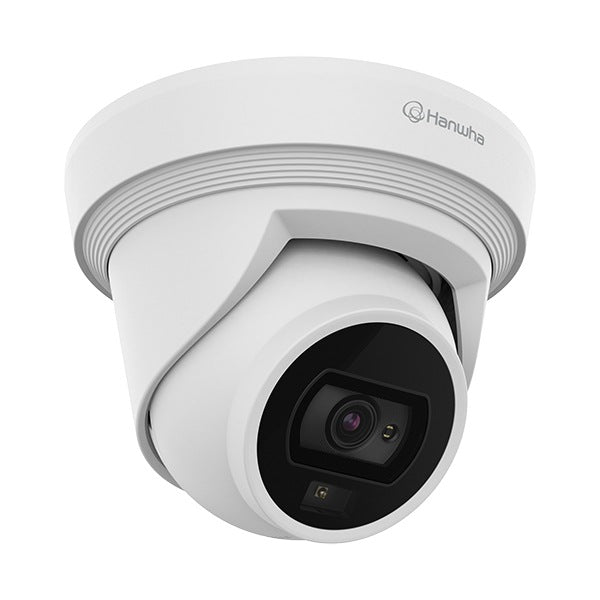

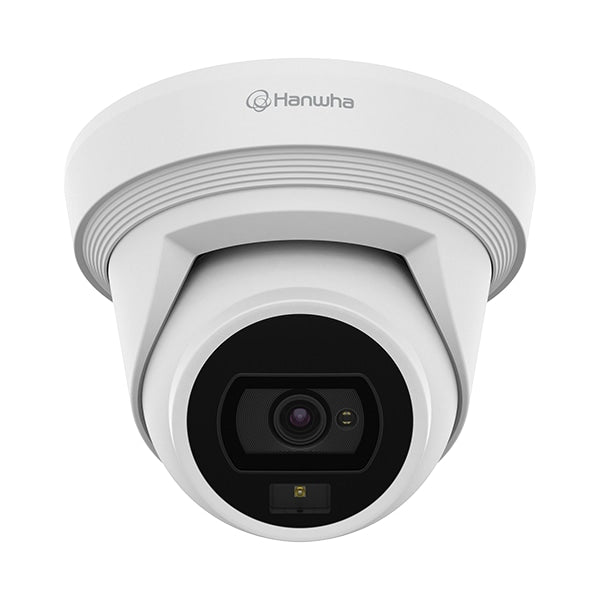

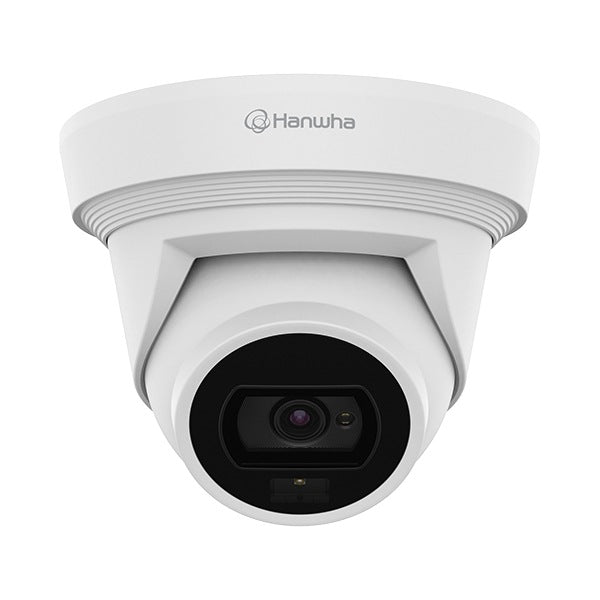

The WISENET Q Network Outdoor Flat-Eye Camera by HANWHA VISION is a rugged 5MP surveillance solution designed for professional outdoor security across commercial, industrial, and public spaces. It delivers sharp, real-time video at 30fps with intelligent analytics to help you monitor more effectively with less noise.
-
Resolution & Frame Rate: 5MP resolution at 30 frames per second for clear, detailed footage.
-
Lens: 3mm fixed focal length with a 97° horizontal and 53° vertical field of view.
-
Video Compression: Supports H.265, H.264, and MJPEG with WiseStream III for optimized bandwidth and storage.
-
Wide Dynamic Range: 120dB WDR to maintain detail in challenging lighting conditions.
-
Illumination: Dual white LEDs plus infrared LEDs with up to 30 meters of night vision.
-
AI Motion Detection & IVA: Intelligent object classification (person or vehicle) and advanced IVA events such as virtual line crossing, intrusion, loitering, and defocus detection.
-
Durability: Built to endure harsh outdoor environments with IP66/IP67 protection and IK10 vandal resistance.
-
Storage & Connectivity: SD/SDHC/SDXC card slot supporting up to 256GB; Power over Ethernet (PoE) for simplified installation; ONVIF compliant and OnCloud compatible.
-
Operating Range: Wide operating temperature from -40°C to +60°C (-40°F to +140°F).
Designed with reliability in mind, this camera pairs HANWHA VISION’s trusted WISENET Q engineering with advanced analytics to reduce false alarms and boost situational awareness. The combination of robust housing, flexible storage options, and network-friendly compression makes it ideal for outdoor monitoring of campuses, industrial sites, retail complexes, and public facilities.
Specs
- 5MP resolution
- 3mm lens
- 97° horizontal FOV, 53° vertical FOV
- 120dB WDR
- Dual white LED & IR illumination (up to 30m)
- AI motion detection with person/vehicle classification
- IVA events: virtual line crossing, intrusion, loitering, defocus
- IP66/IP67 weather protection, IK10 vandal resistance
- SD card slot up to 256GB
- Power over Ethernet (PoE)
- ONVIF compliant, OnCloud compatible
- Operating temperature: -40°C to +60°C
FAQ
-
What is the maximum storage capacity for the SD card?
Up to 256GB.
-
Does the camera support night vision?
Yes, it features dual white LED and IR illumination with visibility up to 30 meters.
-
Is the camera suitable for harsh weather conditions?
Yes, it is rated IP66/IP67 for weather resistance and IK10 for vandal resistance.
-
What types of objects can the AI detect?
It can identify persons and vehicles (car, bus, truck, motorcycle, bicycle) and supports IVA events like line crossing, intrusion, loitering, and defocus detection.
-
Can the camera be powered via Ethernet?
Yes, it supports Power over Ethernet (PoE) for easy installation.
