Description

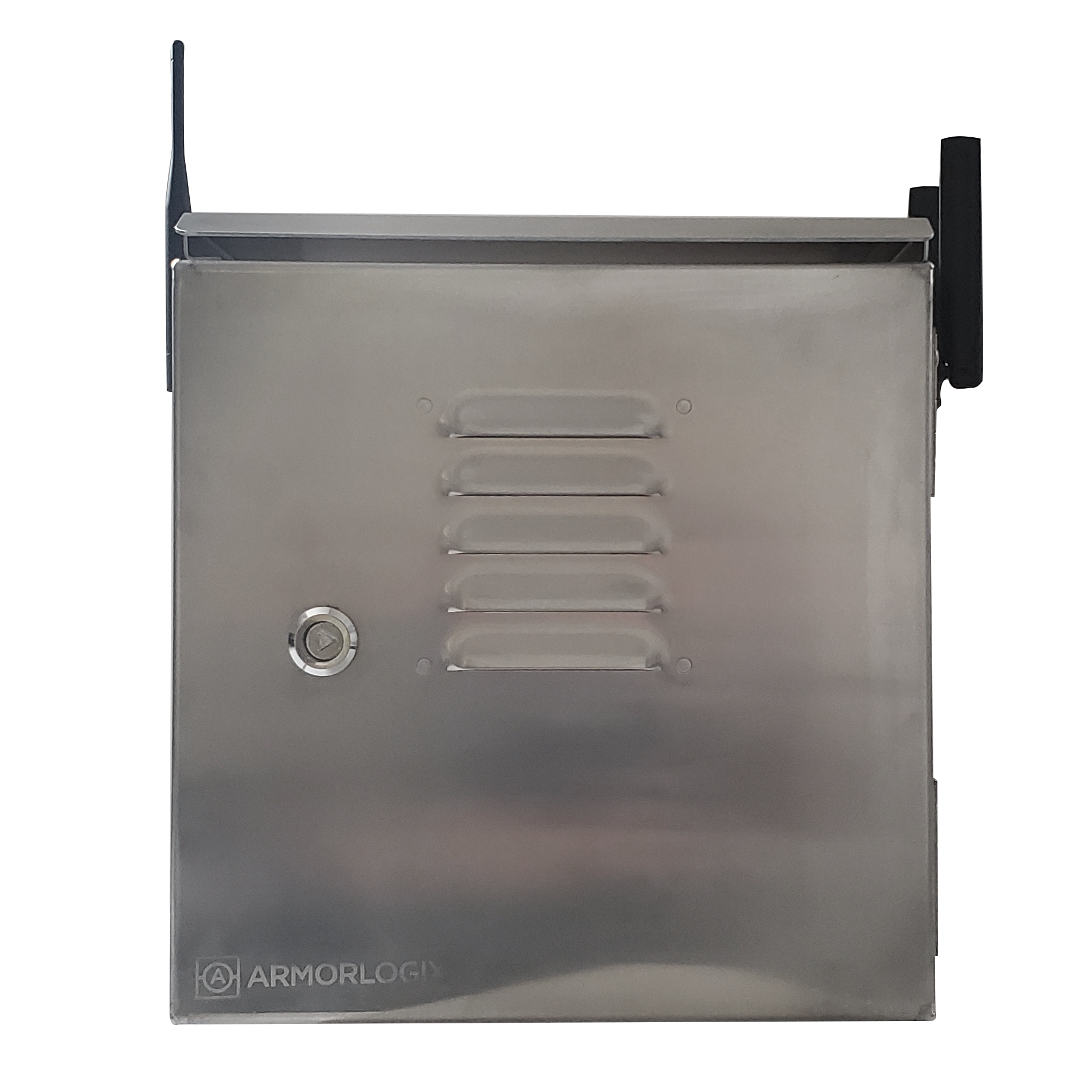

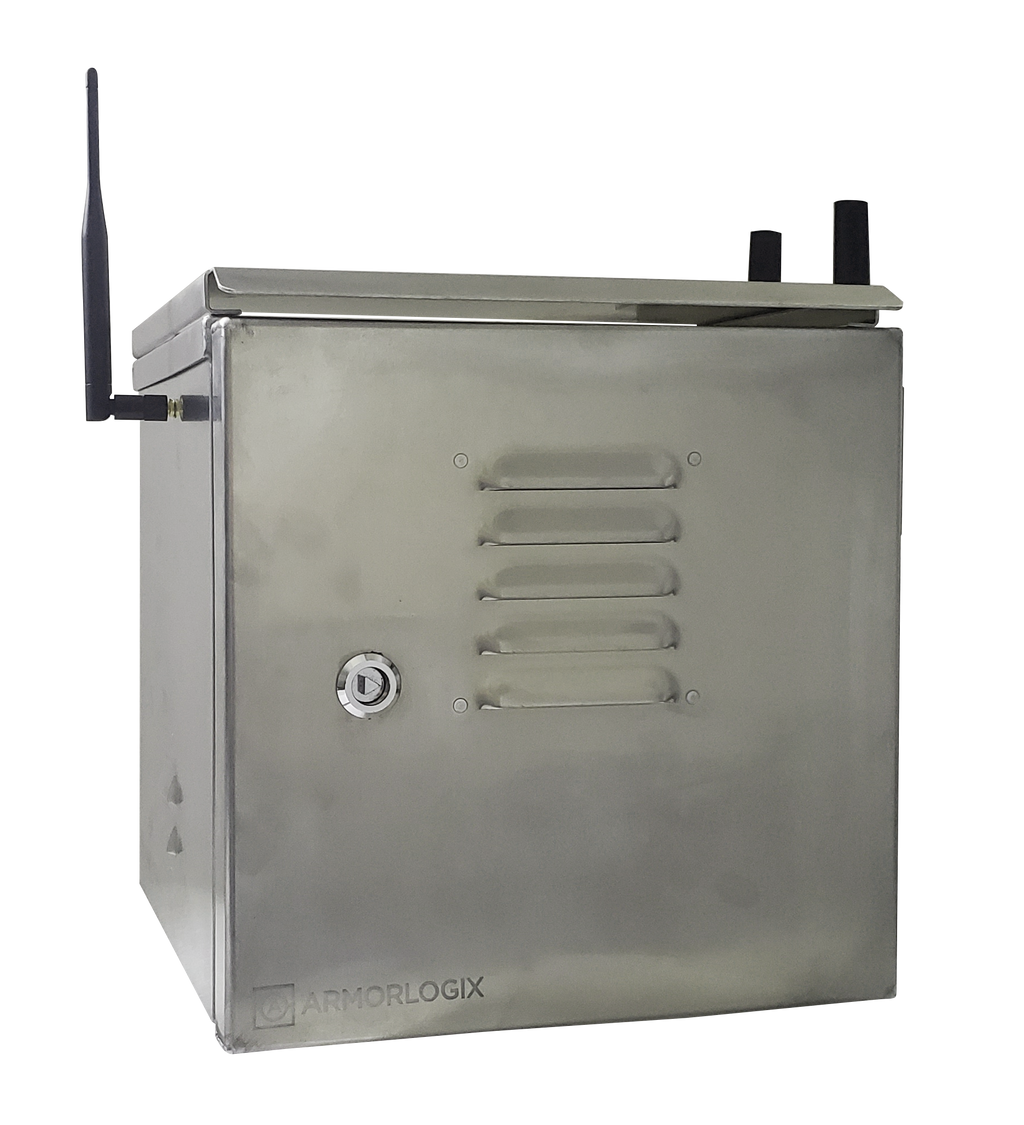

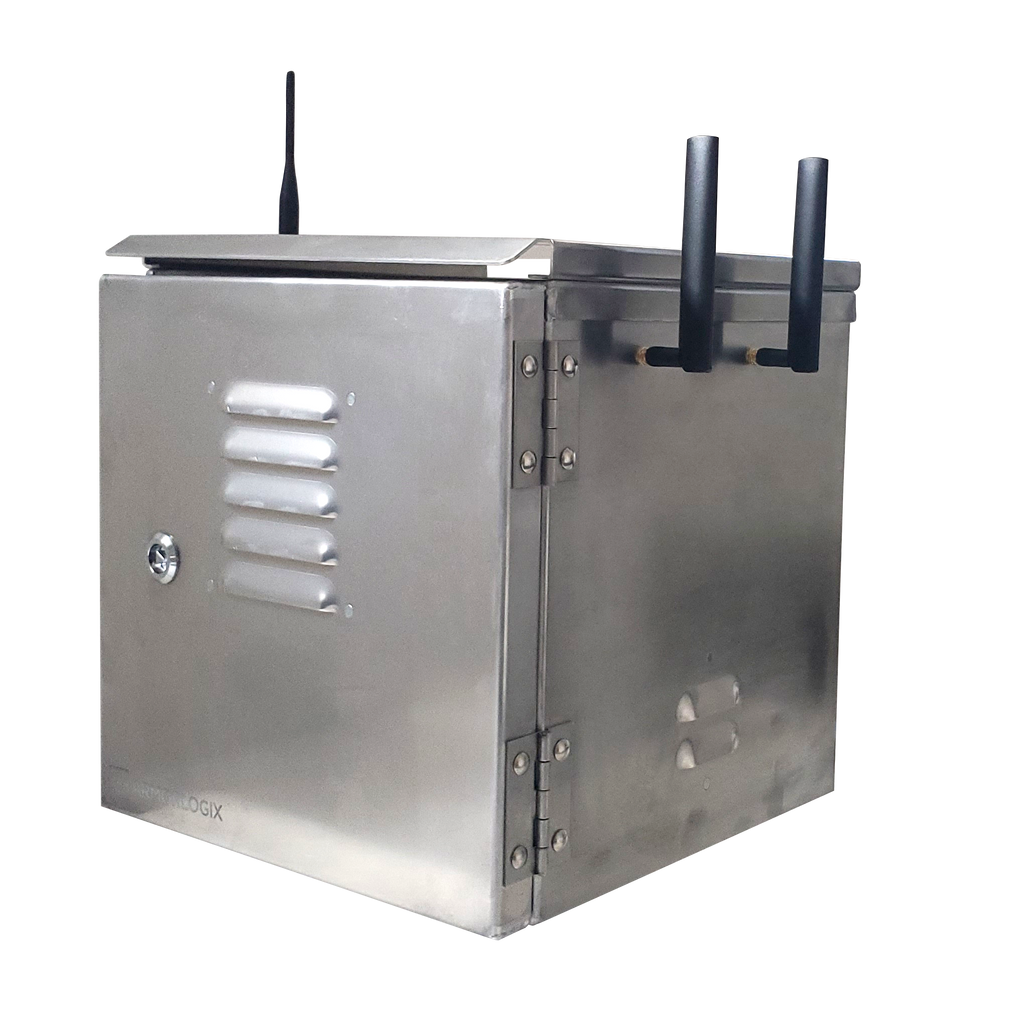

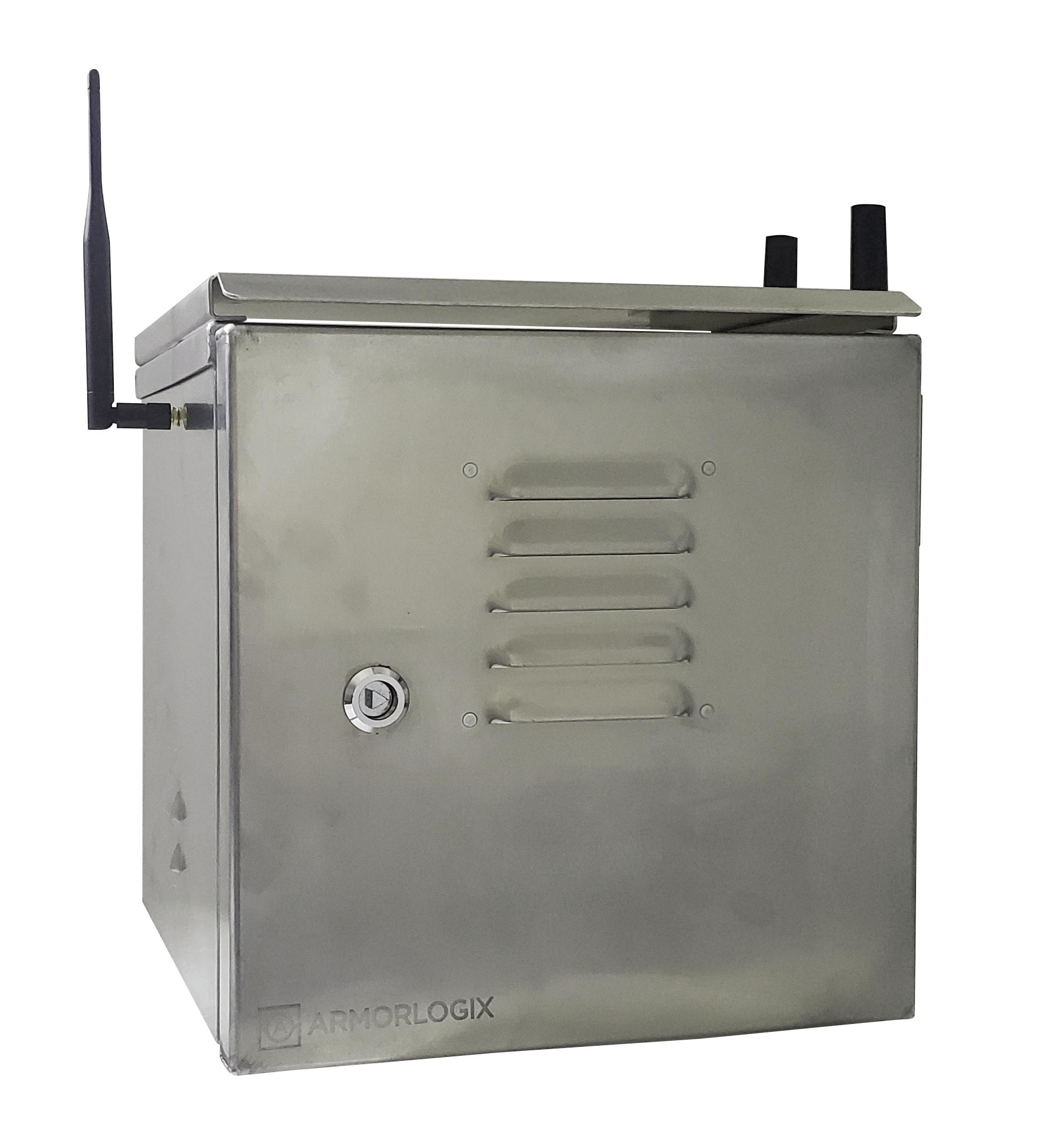

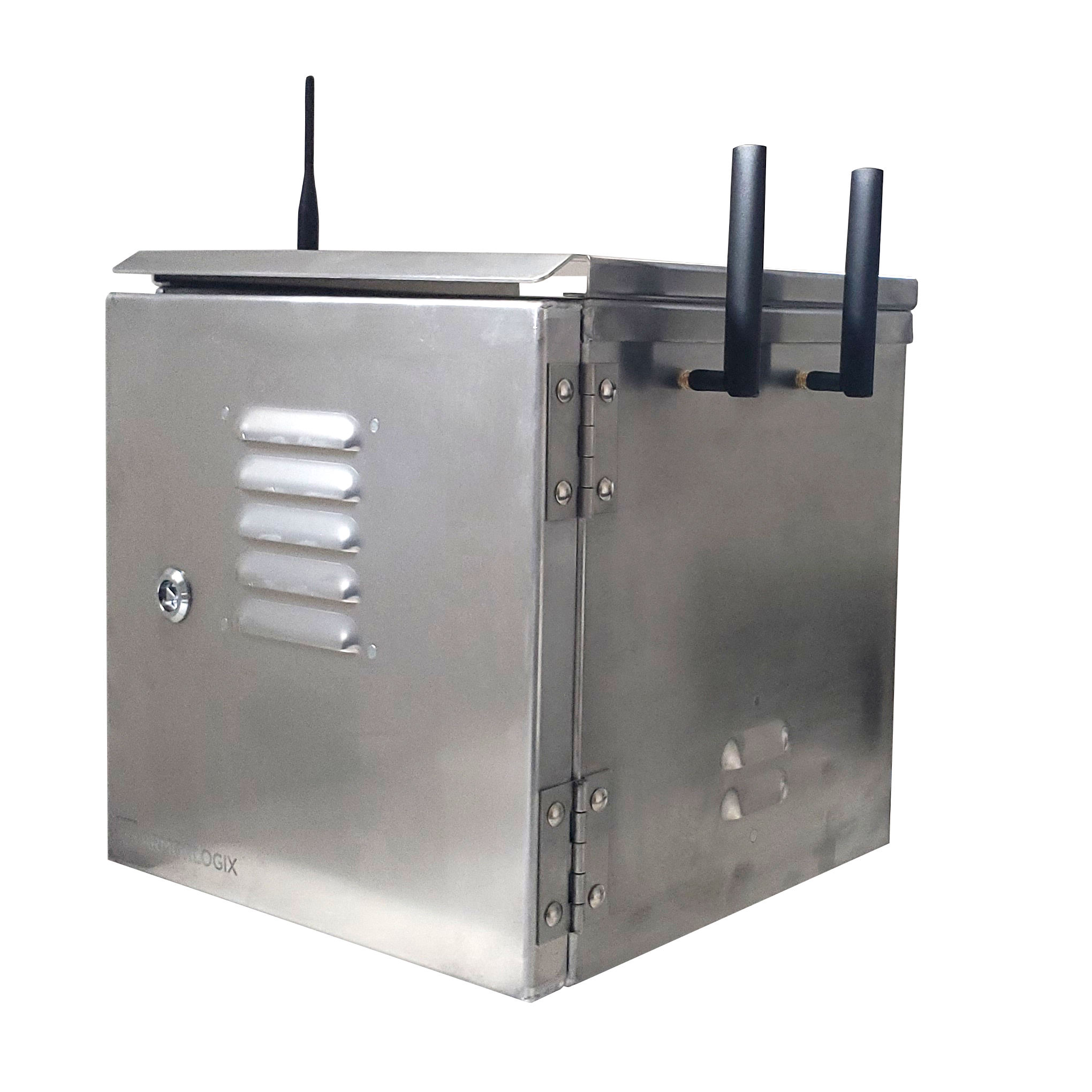

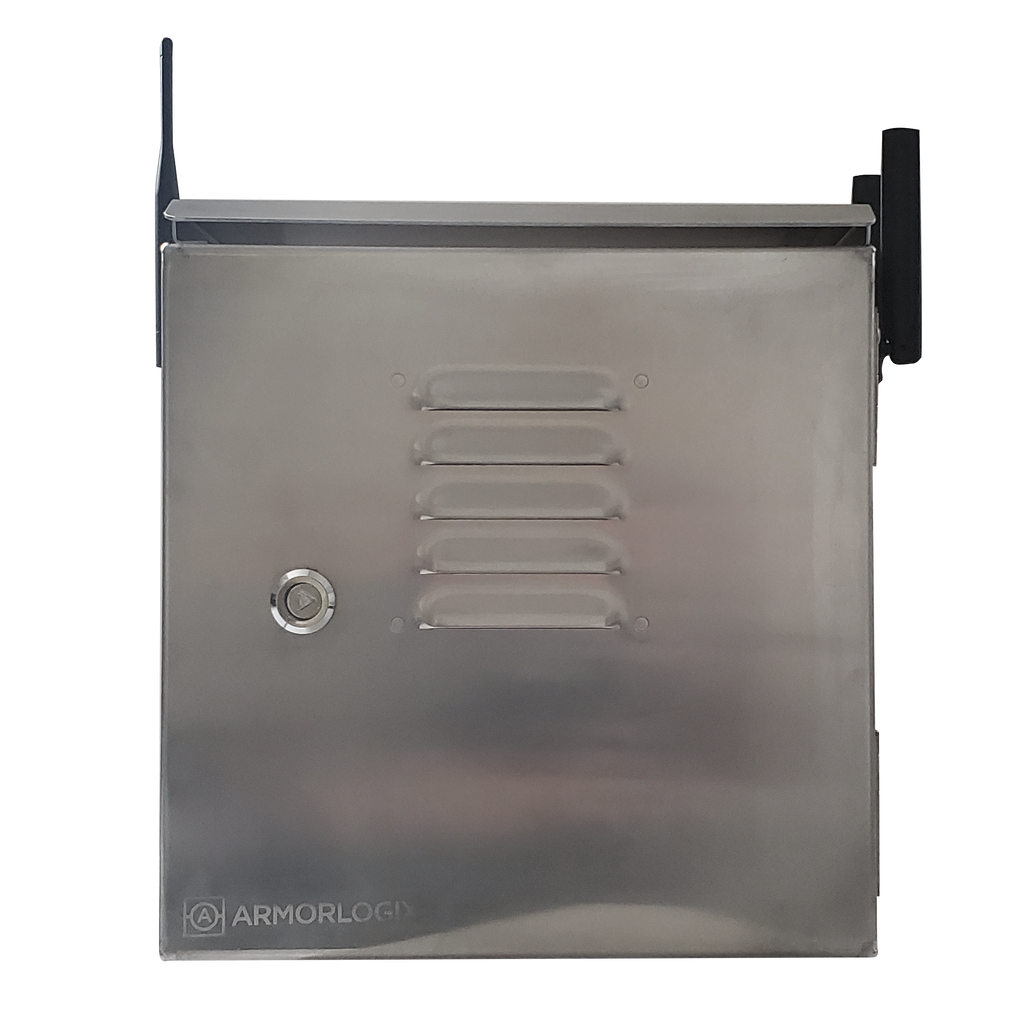

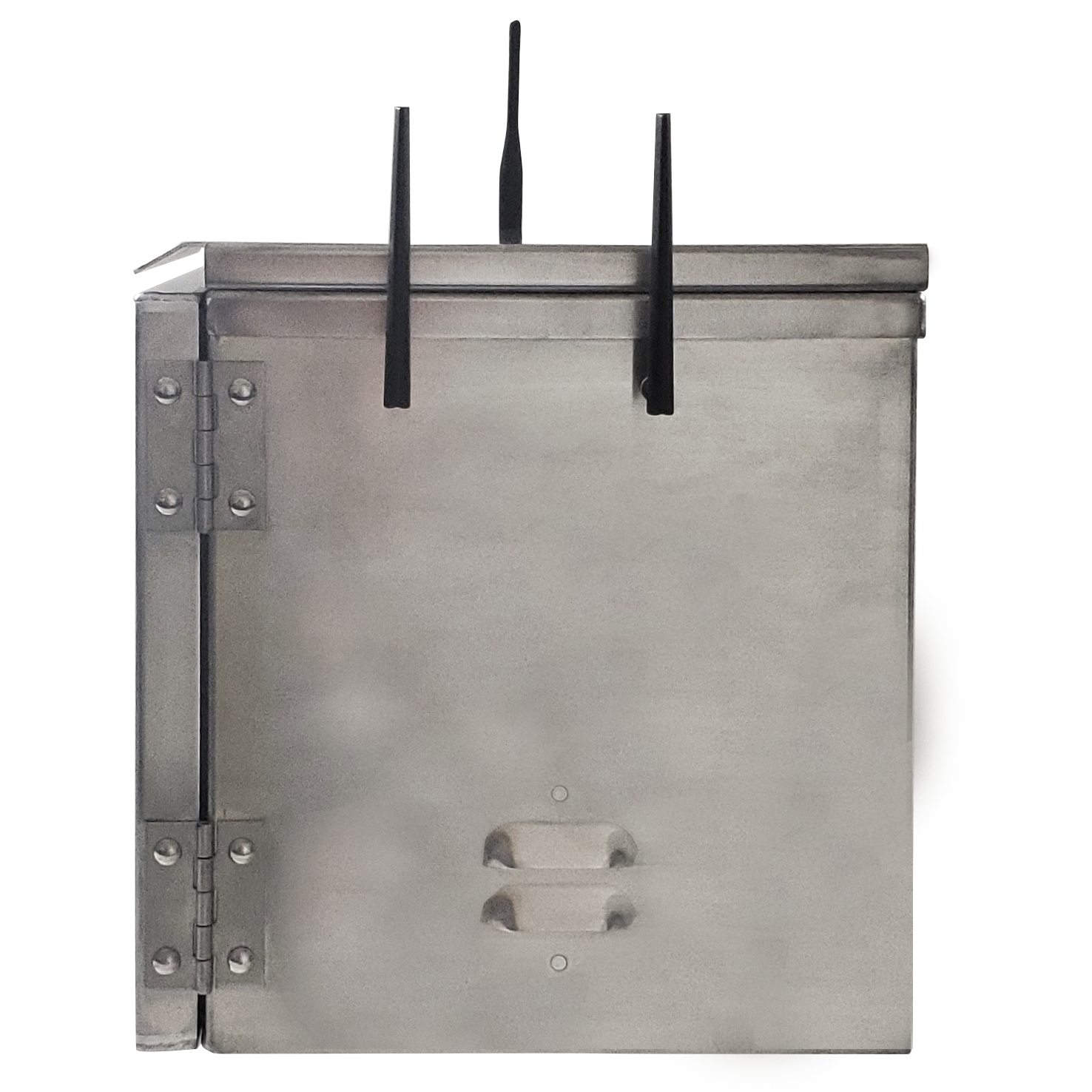

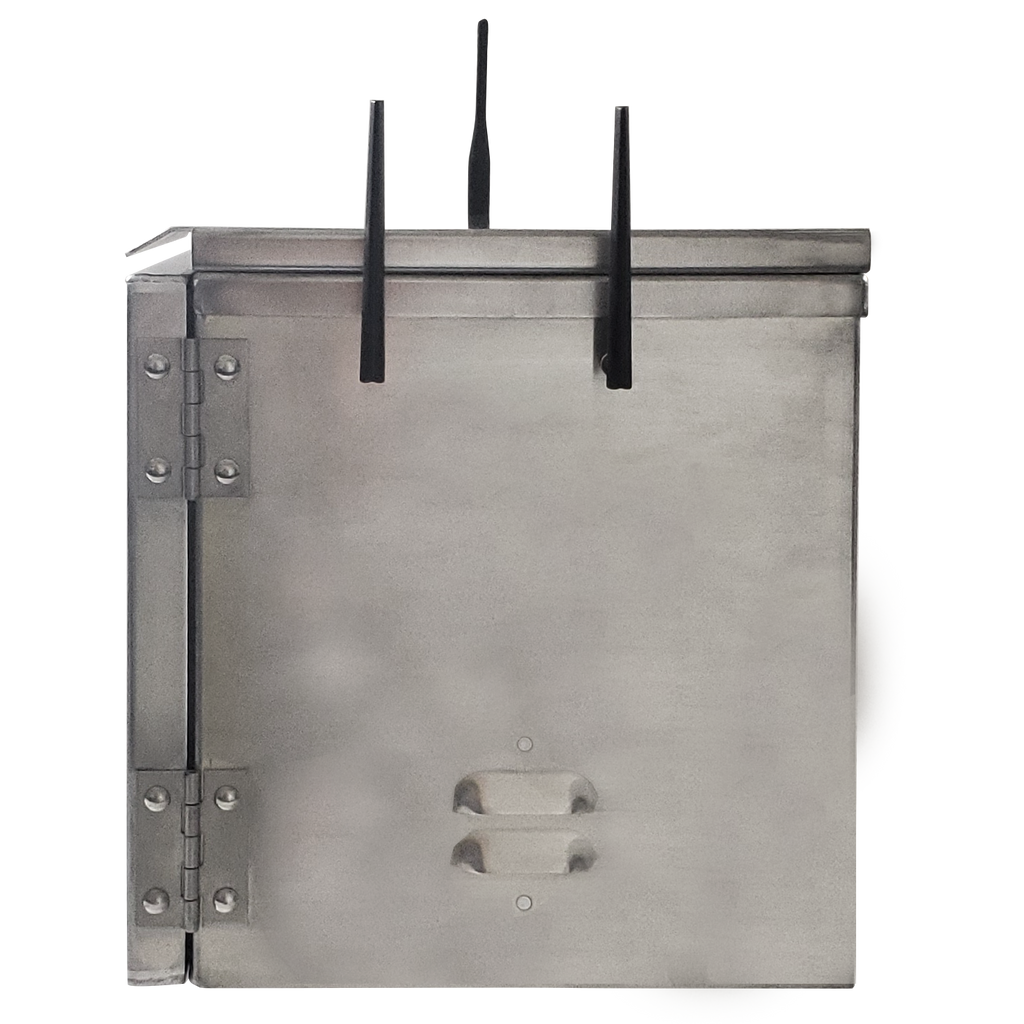

WPIP-4S-4G – WEATHERPROOF 4 PORT POE SWITCH WITH 4G CELLULAR MODEM WPIP-4S-4G
NEMA 3 rated outdoor enclosure with fan and thermostat
10/100Mbps 4 + 2 Port Industrial PoE Switch
4G Cellular Modem

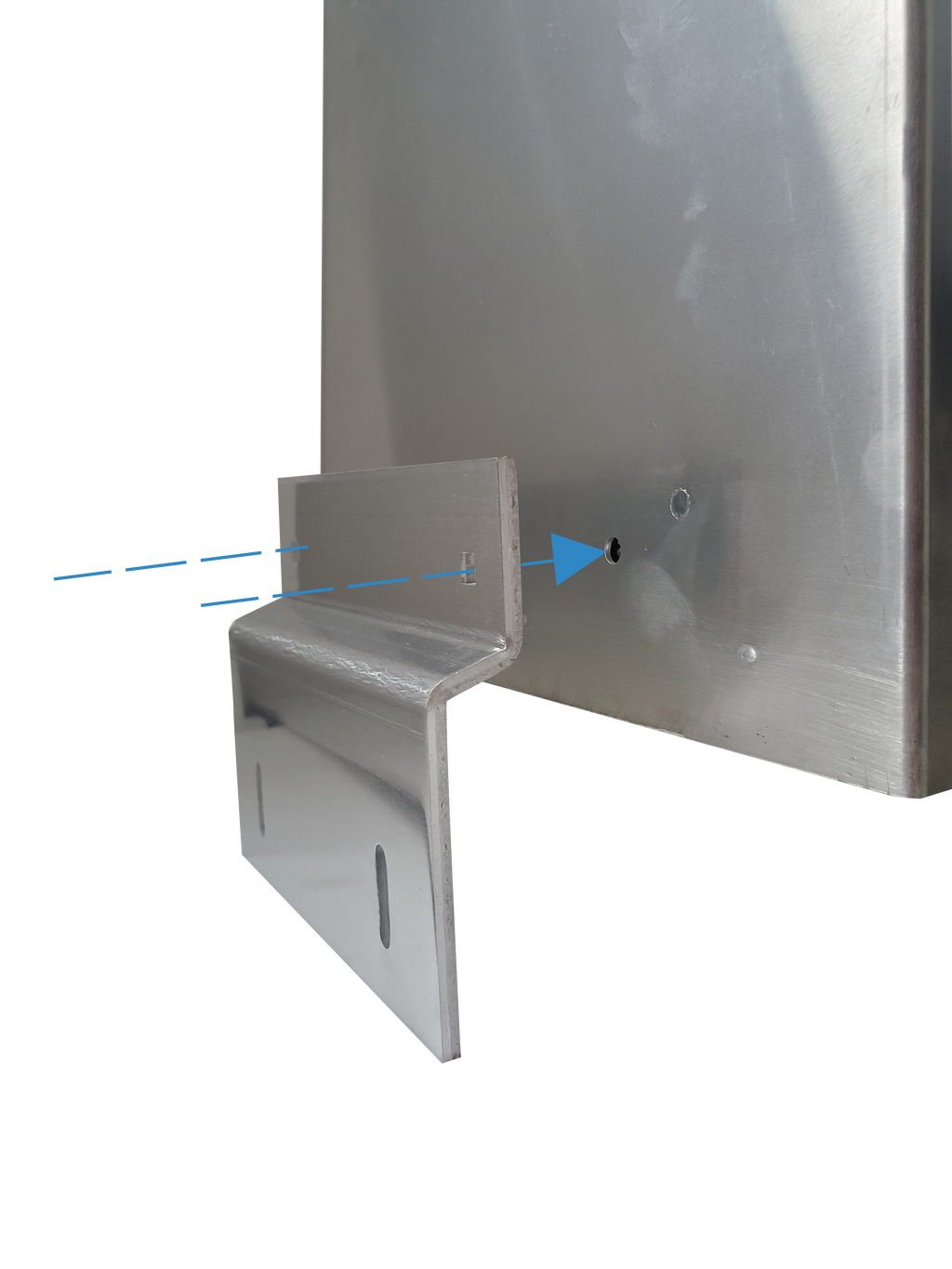

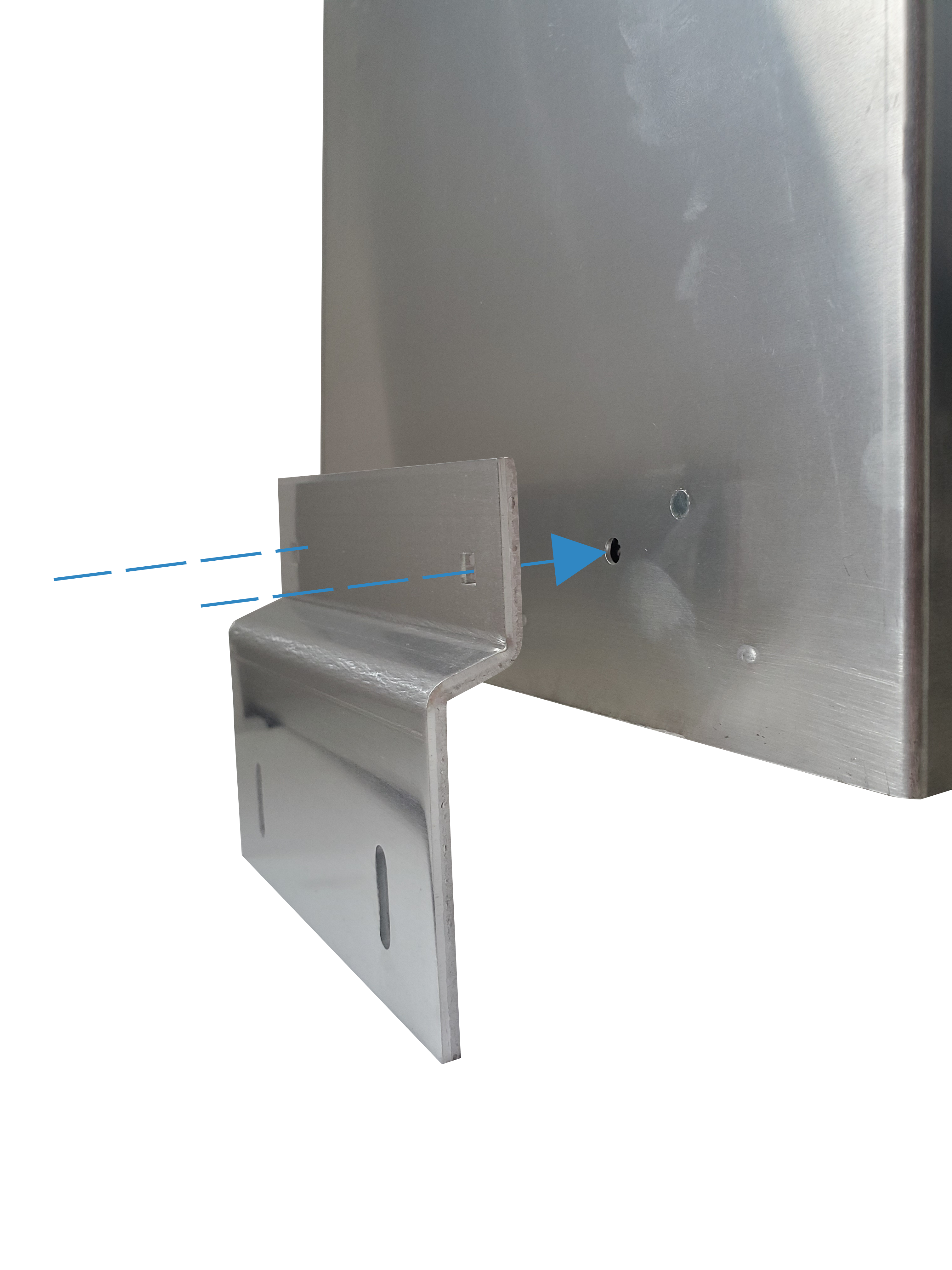

The mounting brackets allow for flush or pole mounting
OVERVIEW
Industrial 4 port PoE switch installed inside an ArmorLogix AL121211N3-FT weatherproof NEMA 3 enclosure. ArmorLogix 4G cellular modem installed for easy, remote access, 24/7. Easily install on a wall or pole with the included universal mounting brackets.
SPECIFICATIONS
Enclosure | Material
5052 Marine Grade Aluminum
Enclosure | Color
Silver/Metallic
Enclosure | Voltage
120V AC (Power Strip)
Enclosure | Mounting Plate Material
Aluminum
Enclosure | Mounting Plate Dimensions
9" x 10"
Enclosure | Thermostatic Fan
Included
Enclosure | Security
Cam Lock
Enclosure | Outside Dimensions
12" x 12" x 11"
Enclosure | Ratings
NEMA 3
Enclosure | Cable Feed
1.5" Non-Metallic Seal Tight Straight Connector
Weight (Enclosure Only)
11 lbs
Poe Switch | Power Supply
External Power Adaptor
Poe Switch | Voltage Range
DC48V ~ 56V
Poe Switch | Consumption
< 3W
Poe Switch | Speed
1-5 Ports: 1/100Mbps Uplink: 100Mbps SFP
Poe Switch | Ethernet Standard
IEEE 802.3 / 802.3u / 802.3af / 802.3at
Poe Switch | Switch Capacity
1.2 G
Poe Switch | Transfer Rate
14,880 pps for 10Mbps 148,800 pps for 100Mbps
Poe Switch | MAC Address
2K MAC Address Table
Poe Switch | LED
SFP Link / ACT On + Green = Connecting Link / ACT Blinks = Port is receiving or transmitting data Link / ACT off = Not linked with the device POE On + Orange = PD is connected POE Off = No PD is connected or power forwarding failure
