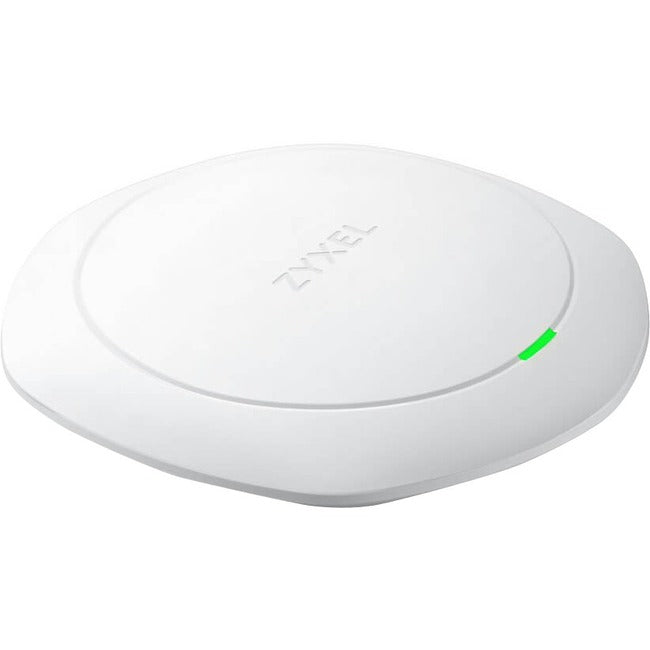

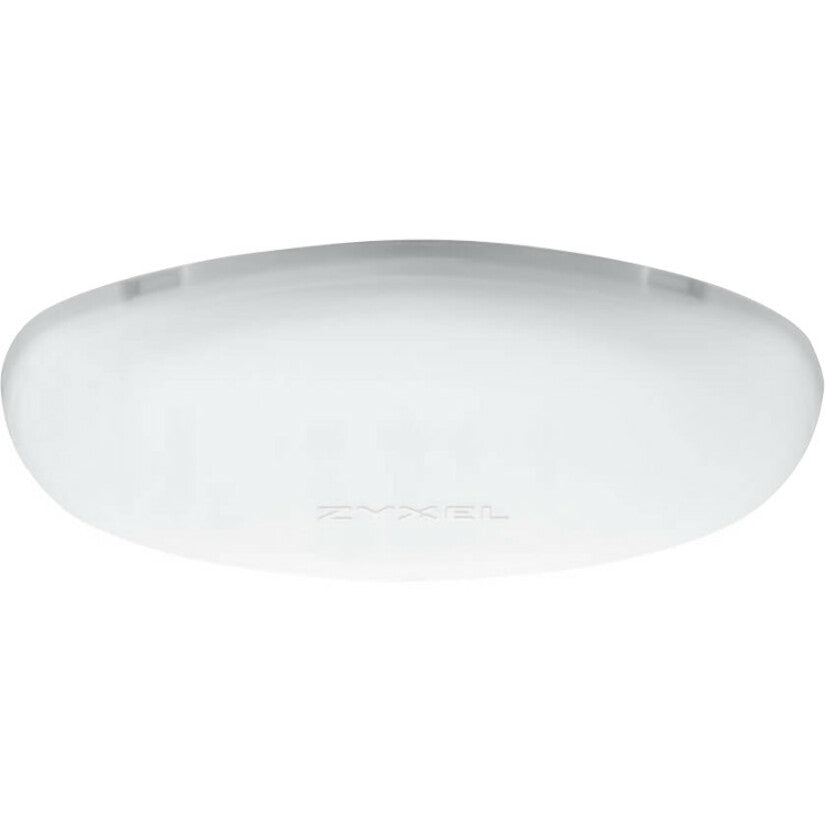

ZYXEL NWA5123-AC HD IEEE 802.11ac 1.60 Gbit/s Wireless Access Point
The Zyxel NWA5123-AC HD is a Wave 2 dual-radio 3x3 MU-MIMO Unified Access Point with a combined data rate of up to 1.6Gbps. Thanks to its superior hardware design with next generation beamforming technology and advanced noise suppression, the NWA5123-AC HD delivers increased coverage and improved connection speeds for every client. The highperformance NWA5123-AC HD is future-proof for the ever-growing mobility demands in high-density environments such as campuses and hotels.
Benefits
Second Generation MU-MIMO - the true breakthrough in wireless connectivity
Stepping up from 802.11ac, the Wave 2 technology introduces Multi-User MIMO (MU-MIMO). This is an important WiFi development that enables an AP to communicate with multiple clients at a time offering up to 300% performance for a 3x3 AP. The benefits of Wave 2 technology are clear, but there are still two well-known technical challenges: the airtime cost when performing channel measurement, and the data rate being limited by the slowest client in the MU group.
To overcome those challenges, the NWA5123-AC HD uses second generation transmit beamforming technology incorporating Low End Sensitivity Improvements and Time Domain Channel Smoothing allowing data rates to increase for not only MU-MIMO clients, but for all existing ones as well. Additionally, the NWA5123-AC HD is built with a high-efficiency antenna module, premium power amplifiers and low-noise elements delivering superior wireless performance over other Wave 2 access points on the market.
Unbeatable coverage
Maximizing wireless coverage is more than just a game of output power. Every hardware design details including the layout, the antenna and the ability to distinguish between numerous sources of noise all contribute in determining coverage and throughput. Unlike most products on the market that measure only conducted sensitivity without considering the effect of antennas, Zyxel examines sensitivity with antenna (a.k.a. OTA sensitivity) as a whole wireless system to minimize the degradation in sensitivity at receiver end. In short, Zyxel has optimized the design of the NWA5123-AC HD to boost sensitivity and maximize real world performance.
ThermoSense Adjustment Technology
Zyxel's ThermoSense Adjustment Technology is an innovative feature that extends the operating temperature range to as high as to 60°C. It does this by monitoring the temperature threshold intelligently and making adjustments to operating parameters. This ensures continued performance in extreme environments such as warehouses and factory floors.
3G/4G Cellular Network Coexistence
With gradually pervasive 3G infrastructure deployment at customer sites, users start to experience wireless performance degrade e.g. ping drops and high latency, however whenever users shutdown the 3G equipment, wireless service resumes working smooth. To enable 3G/4G cellular network coexistence and minimize interference from 3G/4G antennas or signal boosters, the NWA5123- AC HD has built-in 3G/4G interference filters. As a result, installation of the AP no longer needs to worry about the visible or invisible 3G/4G indoor antennas around.
- Excellent wireless coverage and performance with the latest 3x3 Wave 2 802.11ac technology
- Next generation beamforming technology delivers maximum coverage
- Innovative MU-MIMO technology increases downstream throughput by simultaneously talking to multiple devices at the same time
- Simple installation with APFlexTM or Zyxel Utility makes installation and setup a breeze whether for just single or multiple units at once
- Solid state capacitors and advanced heat dissipation ensure high reliability and long life-even in the toughest environments
- Advanced Cellular Coexistence minimizes interference from 3G/4G cellular networks
Product Type: Wireless Access Point
Environmentally Friendly: Yes
Environmental Certification: RoHS
Brand Name: ZYXEL
Form Factor: Wall Mountable
Manufacturer: ZYXEL Communications Corp.
Product Model: NWA5123-AC HD
Product Name: 802.11ac Wave 2 Dual-Radio Unified Access Point
Manufacturer Part Number: NWA5123-ACHD
Manufacturer Website Address: http://www.us.zyxel.com
Package Contents:
- 802.11ac Wave 2 Dual-Radio Unified Access Point
- Wall/Ceiling Mount Plate
- Mounting Screws
Limited Warranty: 2 Year
Weight (Approximate): 1.65 lb
